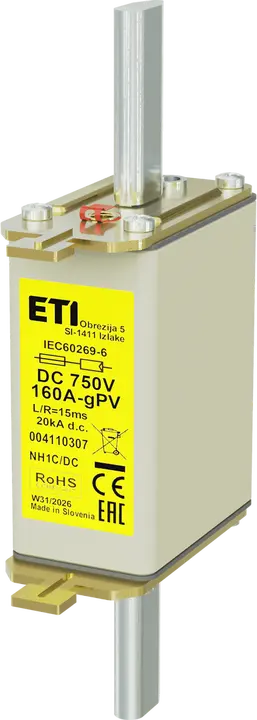

*NH1C gPV 160A/750V DC Fuse link
- ETI Code:
- 004110307
- Fuse type:
- NH
- Size:
- NH1C
- Rated current:
- 160 A
- Time-Current Characteristic:
- gPV
- Indicator:
- Top fuse status indicator
- Rated DC voltage:
- 750 V
- Breaking capacity DC:
- 20 kA
- L/R:
- 15 ms
- Power dissipation:
- 32 W
- Prearcing joule integral (A2s):
- 13,060
- Operating joule integral (A2s):
- 27,220
- Standards:
- IEC 60269-6
- Application:
- Fuse link for DC application
22 Logistics
Product
- EAN code for a single product
- 3838895757733
- Net weight of the product
- 300 g
- Net width
- 29 mm
- Net height
- 136 mm
- Net depth
- 64.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895448006
- Basic packaging weight
- 0.935 kg
- Basic Packaging Dimensions Height
- 0.066 m
- Basic Packaging Dimensions Width
- 0.093 m
- Basic Packaging Dimensions Depth
- 0.138 m
- Basic packaging volume
- 0.001 m³
Transport Packaging
- Transport packaging quantity
- 45 pcs
- EAN code for a transport packaging
- 3838895565505
- Transport packaging weight
- 14.369 kg
- Transport Packaging Dimensions Height
- 0.255 m
- Transport Packaging Dimensions Width
- 0.295 m
- Transport Packaging Dimensions Depth
- 0.235 m
- Transport packaging volume
- 0.018 m³
- Pallet quantity
- 2,340 pcs
- Customs tariff
- 85361090
8 ETIM
- Voltage type
- DC
- Fuse construction type according to IEC 60269
- NH1C
- Power loss at rated current
- 32 W
- Rated switching capacity DC
- 20 kA
- Type of fuse status indicator
- Top fuse status indicator
- Rated current
- 160 A
- Rated voltage DC
- 750
- Utilization category
- gPV (photovoltaic protection)
