004110314 Obsolete

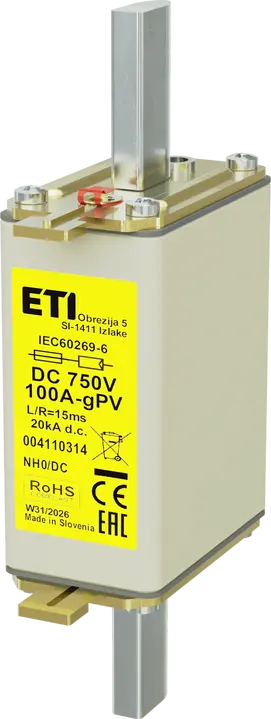

*NH0 gPV 100A/750V DC Fuse link

ETI Code:: 004110314
Fuse type:: NH
Size:: NH0
Rated current:: 100 A
Time-Current Characteristic:: gPV
Indicator:: Top fuse status indicator
Rated DC voltage:: 750 V
Breaking capacity DC:: 20 kA
L/R:: 15 ms
Power dissipation:: 21 W
Prearcing joule integral (A2s):: 2,580
Operating joule integral (A2s):: 6,140
Standards:: IEC 60269-6
Application:: Fuse link for DC application

Accessories

Product

EAN code for a single product: 3838895757634
Net weight of the product: 290 g
Net width: 29 mm
Net height: 124 mm
Net depth: 59.5 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895468493
Basic packaging weight: 0.905 kg
Basic Packaging Dimensions Height: 0.066 m
Basic Packaging Dimensions Width: 0.093 m
Basic Packaging Dimensions Depth: 0.138 m
Basic packaging volume: 0.001 m³

Transport Packaging

Transport packaging quantity: 45 pcs
EAN code for a transport packaging: 3838895565390
Transport packaging weight: 13.919 kg
Transport Packaging Dimensions Height: 0.255 m
Transport Packaging Dimensions Width: 0.295 m
Transport Packaging Dimensions Depth: 0.235 m
Transport packaging volume: 0.018 m³
Pallet quantity: 2,340 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH0
Power loss at rated current: 21 W
Rated switching capacity DC: 20 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 100 A
Rated voltage DC: 750
Utilization category: gPV (photovoltaic protection)

ETIM Classification – Version 9.0
