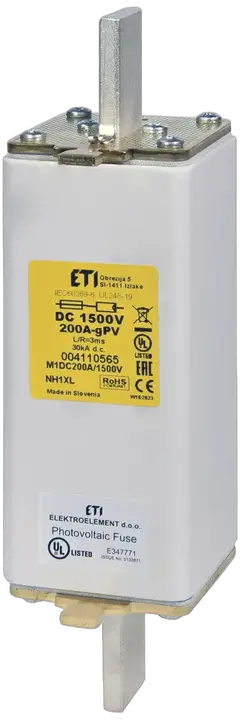

NHS1XL gPV 125A/1500V DC UL Fuse link

ETI Code:: 004110594
Fuse type:: NH-S
Size:: NH1XL
Rated current:: 125 A
Time-Current Characteristic:: gPV
Indicator:: Top fuse status indicator
Rated DC voltage:: 1500 V
Breaking capacity DC:: 30 kA
L/R:: 3 ms
Power dissipation (0,7xIn):: 9.7 W
Power dissipation:: 22 W
Prearcing joule integral (A2s):: 15,000
Operating joule integral (A2s):: 37,000
UL certificate:: E347771
Standards:: IEC 60269-6, UL 248-19
Application:: Fuse link for DC application

Accessories

Product

Net weight of the product: 950 g
Net width: 51 mm
Net height: 198 mm
Net depth: 51 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895737155
Basic packaging weight: 0.95 kg
Basic Packaging Dimensions Height: 0.055 m
Basic Packaging Dimensions Width: 0.205 m
Basic Packaging Dimensions Depth: 0.076 m
Basic packaging volume: 0.001 m³

Transport Packaging

Transport packaging quantity: 16 pcs
EAN code for a transport packaging: 3838895737162
Transport packaging weight: 15.55 kg
Transport Packaging Dimensions Height: 0.255 m
Transport Packaging Dimensions Width: 0.295 m
Transport Packaging Dimensions Depth: 0.235 m
Transport packaging volume: 0.018 m³
Pallet quantity: 832 pcs
Customs tariff: 85351000

Voltage type: DC
Fuse construction type according to IEC 60269: 1XL
Power loss at rated current: 22 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 125 A
Rated voltage DC: 1,500
Utilization category: gPV (photovoltaic protection)
