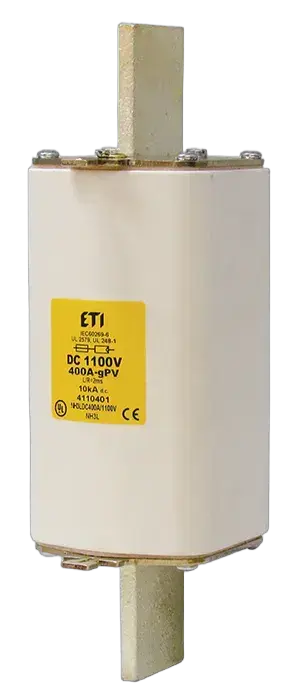

NH3L gPV 500A/1100V DC UL Fuse link

ETI Code:: 004110629
Fuse type:: NH
Size:: NH3L
Rated current:: 500 A
Time-Current Characteristic:: gPV
Indicator:: Top fuse status indicator
Rated DC voltage:: 1100 V
Breaking capacity DC:: 10 kA
L/R:: 2 ms
Power dissipation (0,7xIn):: 37 W
Power dissipation:: 98 W
Prearcing joule integral (A2s):: 150,000
Operating joule integral (A2s):: 370,000
UL certificate:: E347771
Standards:: IEC 60269-6, UL 248-19
Application:: Fuse link for DC application

Accessories

Product

Net weight of the product: 1,980 g
Net width: 73 mm
Net height: 207 mm
Net depth: 87.5 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895755135
Basic packaging weight: 2.04 kg
Basic Packaging Dimensions Height: 0.077 m
Basic Packaging Dimensions Width: 0.224 m
Basic Packaging Dimensions Depth: 0.102 m
Basic packaging volume: 0.002 m³

Transport Packaging

Transport packaging quantity: 9 pcs
EAN code for a transport packaging: 3838895755142
Transport packaging weight: 18.71 kg
Transport Packaging Dimensions Height: 0.255 m
Transport Packaging Dimensions Width: 0.295 m
Transport Packaging Dimensions Depth: 0.235 m
Transport packaging volume: 0.018 m³
Pallet quantity: 468 pcs
Customs tariff: 85351000

Voltage type: DC
Fuse construction type according to IEC 60269: 3L
Power loss at rated current: 98 W
Rated switching capacity DC: 10 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 500 A
Rated voltage DC: 1,100
Utilization category: gPV (photovoltaic protection)
