002174533

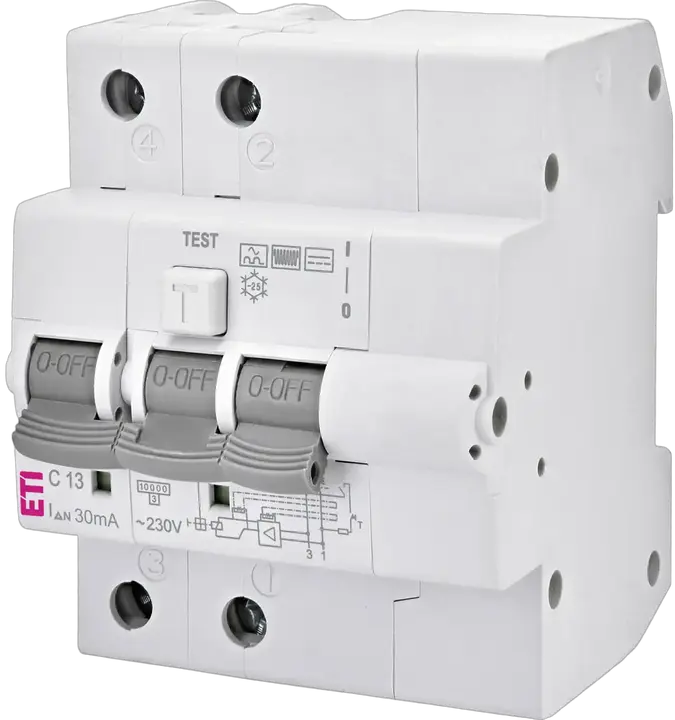

KZS-4M 2p B C13/0.03 RCBO
- ETI Code:
- 002174533
- Function:
- RCBO
- Rated AC voltage:
- 240 V
- Application:
- IEC/EN 61009, IEC/EN 62423
- Rated conditional short-circuit current Inc:
- 10 kA
- Rated residual operating current IDn:
- 0.03 A
- Rated current:
- 13 A
- Residual current type:
- B
- Rated residual current:
- 0.03 A
- Tripping characteristic:
- C
- Number of poles:
- 2
- Short circuit capacity:
- 10 kA
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 61009, IEC/EN 62423
21 Logistics
Product
- Net weight of the product
- 369 g
- Net width
- 70.6 mm
- Net height
- 89.8 mm
- Net depth
- 72.78 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895815778
- Basic packaging weight
- 0.394 kg
- Basic Packaging Dimensions Height
- 0.075 m
- Basic Packaging Dimensions Width
- 0.09 m
- Basic Packaging Dimensions Depth
- 0.074 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 27 pcs
- EAN code for a transport packaging
- 3838895815785
- Transport packaging weight
- 10.988 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 1,404 pcs
- Customs tariff
- 85362010
22 ETIM
- Built-in depth
- 69 mm
- Anti-nuisance tripping version
- Yes
- Leakage current type
- B
- Surge current capacity
- 3 kA
- Voltage type
- AC
- Degree of protection (IP)
- IP20
- Release characteristic
- C
- Rated fault current
- 0.03 A
- Number of poles (total)
- 2
- Frequency
- 50/60 Hz
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Concurrently switching neutral conductor
- Yes
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to IEC 60947-2
- 10 kA
- Rated current
- 13 A
- Width in number of modular spacings
- 4
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 25 mm²
- Connectable conductor cross section multi-wired(Max)
- 25 mm²
ETIM Classification – Version 9.0
