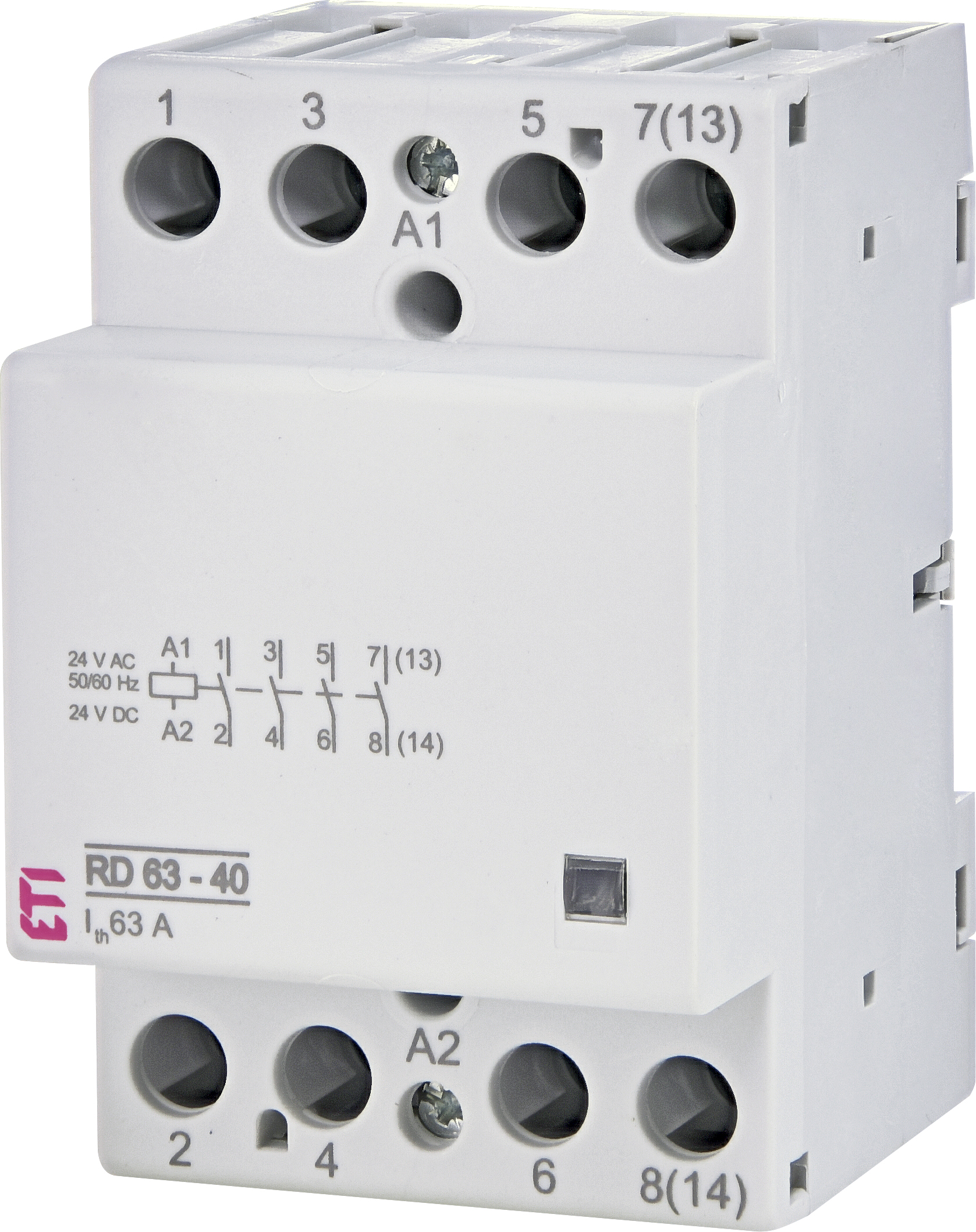

Modular contactor RD 63-40-24V AC/DC 002464027
Specifications
- ETI Code:
- 002464027
- Description:
- RD 63-40-24V AC/DC
- Class name:
- Modular contactor
- Function:
- Modular contactor
- Rated operational current Ie AC-1/AC-7 (A):
- 63
- Rated operational voltage AC (V):
- 400V
- Rated AC control circuit voltage Uc (V):
- 24V
- Rated DC control circuit voltage Uc (V):
- 24V
- Type:
- AC/DC
- Size:
- 4p, 3-modules
- Rated Frequency (Hz):
- 50/60
- Number of NO contacts:
- 4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400014993
- Net weight of the product
- 0.4 kg
- Customs tariff
- 85364900
- logis_net_width
- 54 mm
- logis_net_height
- 84 mm
- logis_net_depth
- 66 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895540137
- Basic packaging weight
- 2 kg
Transport packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3838895540144
- Transport packaging weight
- 20 kg
- Pallet quantity
- 2100
ETIM Clasification
- Classification
- EC001653
- Class name
- Installation contactor for distribution board
- Number of contacts as normally open contact
- 4
