004671281
ED2S 160/3
- Class name:
- Switch disconnector
- Rated current (A):
- 160A
- Rated short-circuit making capacity Icm:
- 2.8kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 2kA
004671283
ED2S 250/3
- Class name:
- Switch disconnector
- Rated current (A):
- 250A
- Rated short-circuit making capacity Icm:
- 6kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 3kA
004671282
ED2S 160/4
- Class name:
- Switch disconnector
- Rated current (A):
- 160A
- Rated short-circuit making capacity Icm:
- 2.8kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 2kA
004671284
ED2S 250/4
- Class name:
- Switch disconnector
- Rated current (A):
- 250A
- Rated short-circuit making capacity Icm:
- 6kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 3kA
004671271
ED2 125/3
- Class name:
- Switch disconnector
- Rated current (A):
- 125A
- Rated short-circuit making capacity Icm:
- 3.6kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 2kA
004671272
ED2 160/3
- Class name:
- Switch disconnector
- Rated current (A):
- 160A
- Rated short-circuit making capacity Icm:
- 6kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 3kA
004671273
ED2 250/3
- Class name:
- Switch disconnector
- Rated current (A):
- 250A
- Rated short-circuit making capacity Icm:
- 6kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 3kA
004671274
ED2 400/3
- Class name:
- Switch disconnector
- Rated current (A):
- 400A
- Rated short-circuit making capacity Icm:
- 9kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 5kA

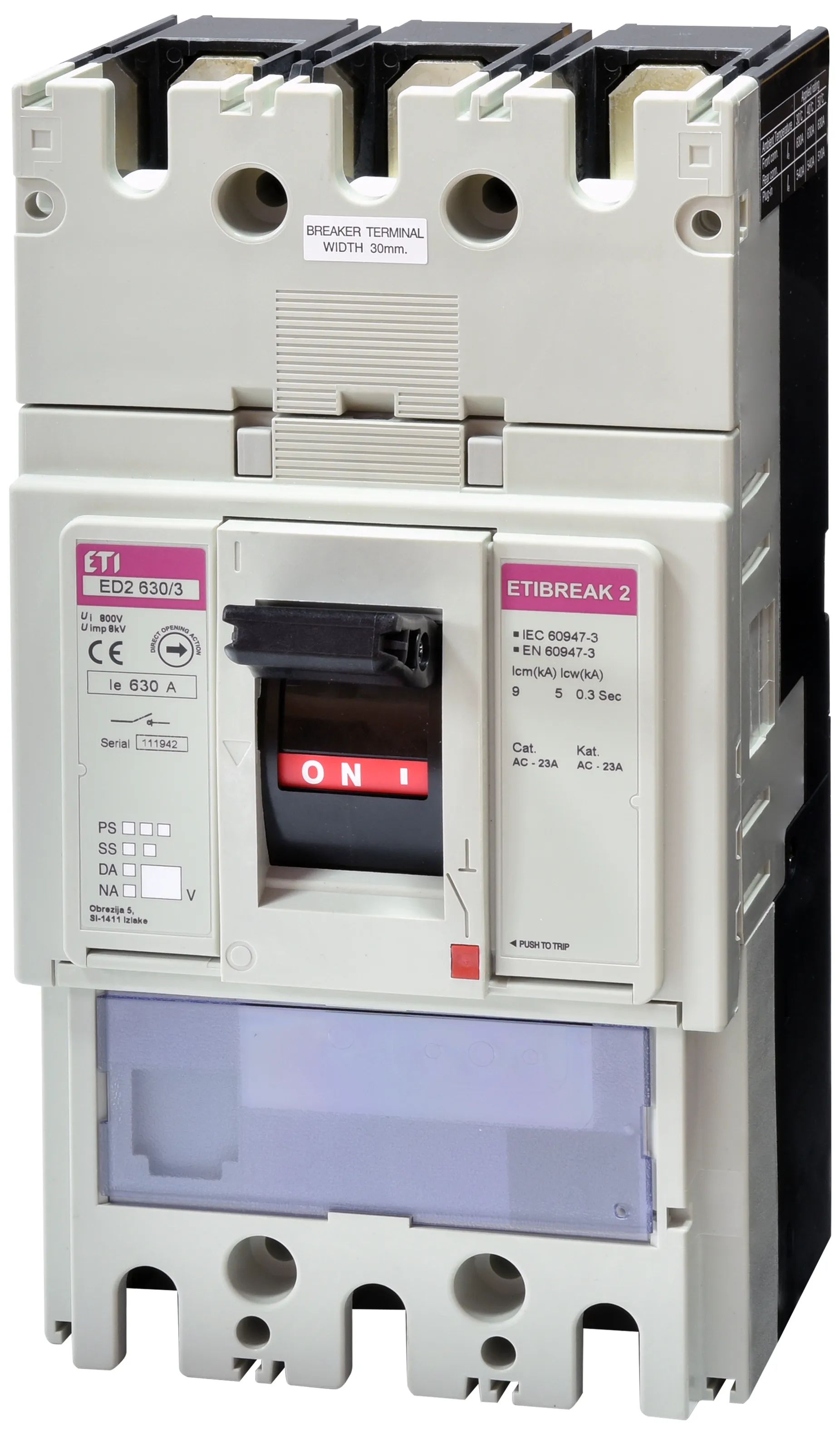

004671275
ED2 630/3
- Class name:
- Switch disconnector
- Rated current (A):
- 630A
- Rated short-circuit making capacity Icm:
- 9kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 5kA
004672370
ED2 800/3
- Class name:
- Switch disconnector
- Rated current (A):
- 800A
- Rated short-circuit making capacity Icm:
- 17kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 10kA
004672373
ED2 1000/3
- Class name:
- Switch disconnector
- Rated current (A):
- 1000A
- Rated short-circuit making capacity Icm:
- 17kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 10kA
004672371
ED2 1250/3
- Class name:
- Switch disconnector
- Rated current (A):
- 1250A
- Rated short-circuit making capacity Icm:
- 32kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 15kA
004672374
ED2 1250/3 PI 3C
- Class name:
- Switch disconnector
- Rated current (A):
- 1250A
- Rated short-circuit making capacity Icm:
- 32kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 15kA
004672372
ED2 1600/3 FC
- Class name:
- Switch disconnector
- Rated current (A):
- 1600A
- Rated short-circuit making capacity Icm:
- 45kA
- Number of poles:
- 3
- Rated short-time withstand current Icw at 0,3s (kA):
- 20kA
004671276
ED2 125/4
- Class name:
- Switch disconnector
- Rated current (A):
- 125A
- Rated short-circuit making capacity Icm:
- 3.6kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 2kA
004671277
ED2 160/4
- Class name:
- Switch disconnector
- Rated current (A):
- 160A
- Rated short-circuit making capacity Icm:
- 6kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 3kA
004671278
ED2 250/4
- Class name:
- Switch disconnector
- Rated current (A):
- 250A
- Rated short-circuit making capacity Icm:
- 6kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 3kA
004671279
ED2 400/4
- Class name:
- Switch disconnector
- Rated current (A):
- 400A
- Rated short-circuit making capacity Icm:
- 9kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 5kA
004671280
ED2 630/4
- Class name:
- Switch disconnector
- Rated current (A):
- 630A
- Rated short-circuit making capacity Icm:
- 9kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 5kA

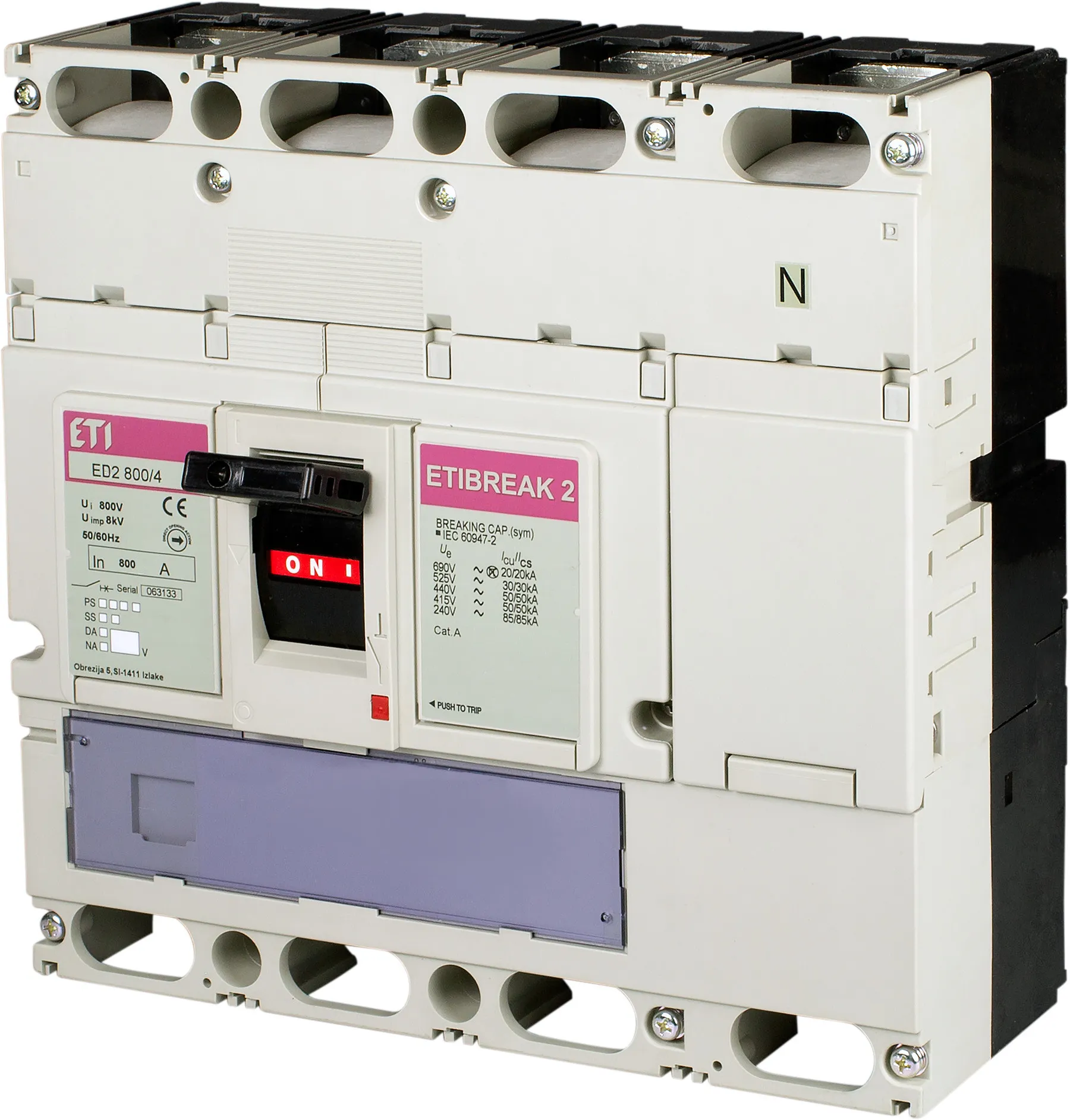

004672380
ED2 800/4
- Class name:
- Switch disconnector
- Rated current (A):
- 800A
- Rated short-circuit making capacity Icm:
- 17kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 10kA
004672383
ED2 1000/4
- Class name:
- Switch disconnector
- Rated current (A):
- 1000A
- Rated short-circuit making capacity Icm:
- 17kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 10kA
004672381
ED2 1250/4
- Class name:
- Switch disconnector
- Rated current (A):
- 1250A
- Rated short-circuit making capacity Icm:
- 32kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 15kA
004672382
ED2 1600/4 FC
- Class name:
- Switch disconnector
- Rated current (A):
- 1600A
- Rated short-circuit making capacity Icm:
- 45kA
- Number of poles:
- 4
- Rated short-time withstand current Icw at 0,3s (kA):
- 20kA
