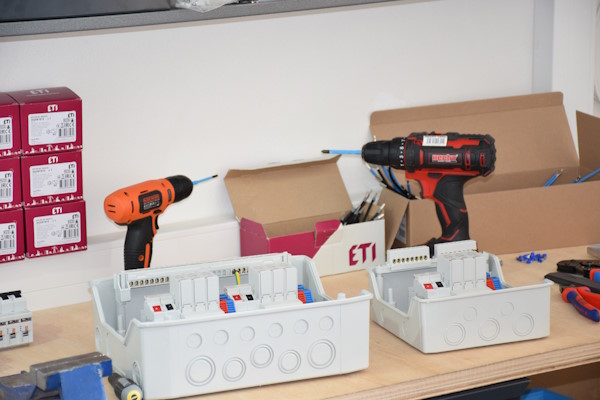

ETI Switchboard Production

As part of ETI's switchboard production in the Czech Republic, we manufacture and offer complete switchboards ready for immediate installation.





Catalogues of Fully Equipped ETI Switchboards

Catalogue



ETI RFVE Photovoltaic Connection Switchboards

These complete certified switchboards for photovoltaic systems are intended for surface mounting. They protect DC wiring and inverters with a maximum voltage of 1000V from lightning strikes and solar panels from reverse currents.

The standard version includes a two-pole fuse disconnector with DC fuses of the gPV characteristic and surge protection devices. Optional with installation switch or without fuses.

All components are mounted on a DIN rail and interconnected to ensure time savings and easy installation.

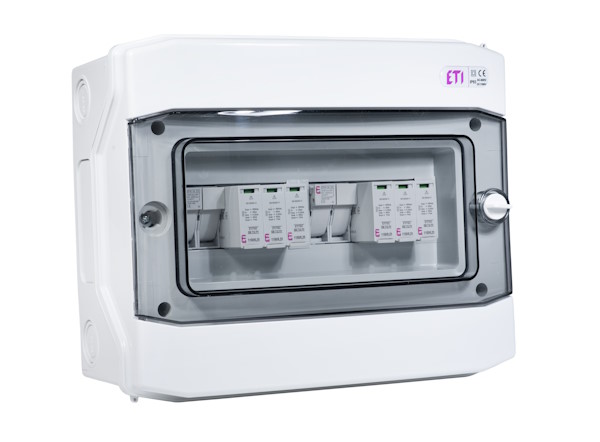

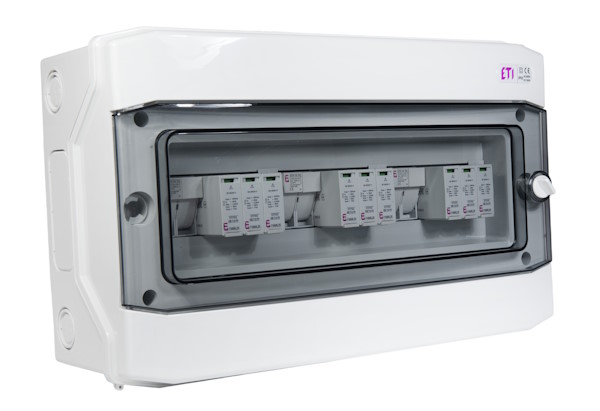

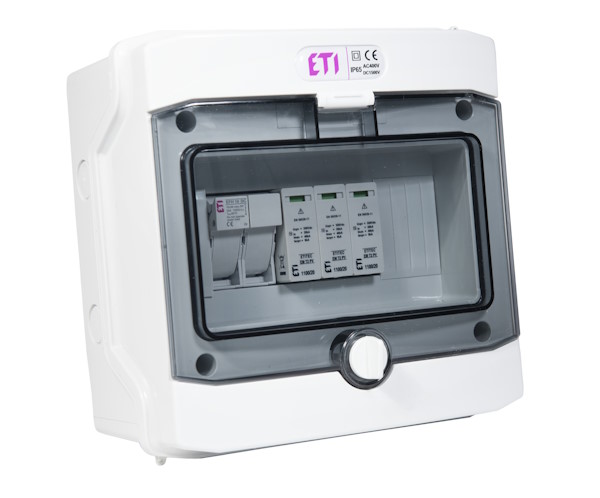

Plastic Enclosure Version ETI ECH

for 1 to 3 strings

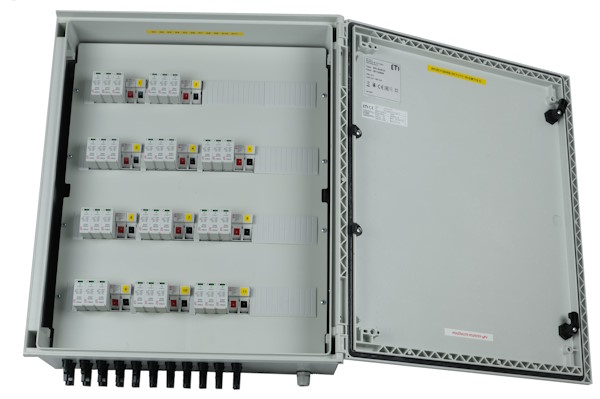

Polyester Enclosure Version ETI EPC

up to 16 strings

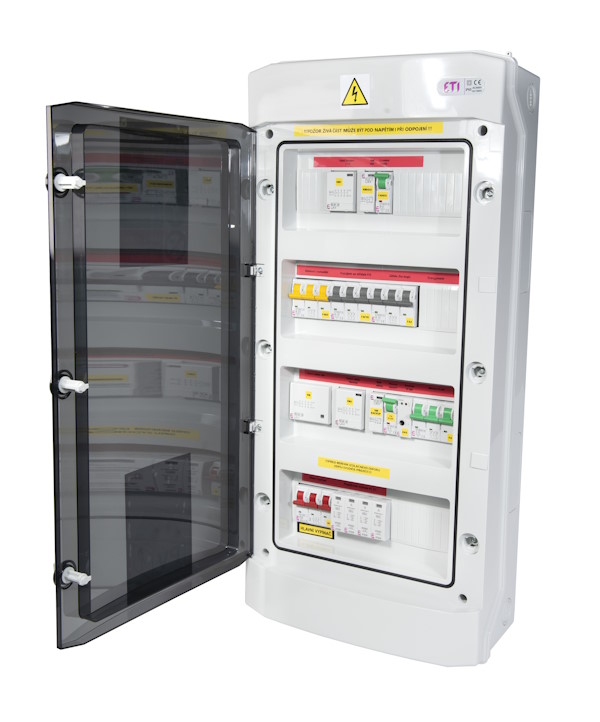

ETI RPO Backup Circuit Switching Panel

Designed for GOODWE inverters GW8KL/10KL-ET; GW8K/10K-ET

Based on your individual requirements, a custom configuration can be created within the limits of the enclosure.



ETI EDS Socket Combinations



A range of in-house produced socket combinations under the EDS designation, designed for wall mounting as part of a fixed installation. The enclosure is heat and flame resistant (glow wire test 650 °C) and can be mounted on A1 and A2 class substrates.

Socket switchboards are offered in three versions based on enclosure size: small ETI EDS8, medium ETI EDS11, and the largest ETI EDS16 with a construction site version. ETI EDS11 and 16 offer the advantage of enclosures with diagonally positioned sockets in the lower row.

Main advantages include verified ABS plastic enclosures with a compact shape for direct wall mounting. All sockets are already connected to their respective circuit breakers and N and PE busbars. Simply connect the supply cable to the terminal block and secure with a strain relief clamp. All versions can be equipped with a 2m supply cable and five-pole plug.

Enclosures are equipped with ETI ETIMAT circuit breakers of characteristic B or C, short-circuit resistance 10kA. Versions with RCDs are of type A, also reacting to the DC component of the current.

The supply cable may only be connected by a qualified person.



Wall-mounted Version

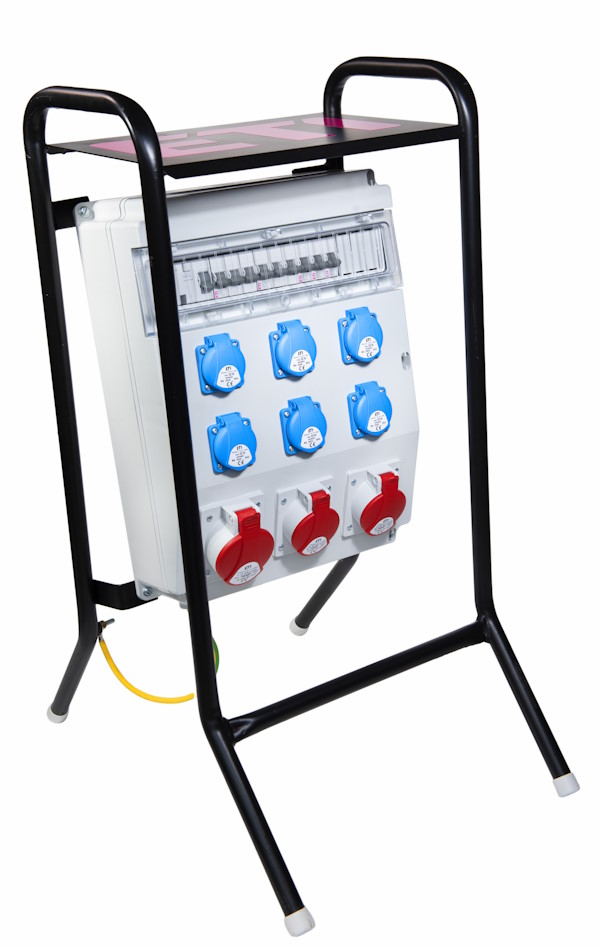

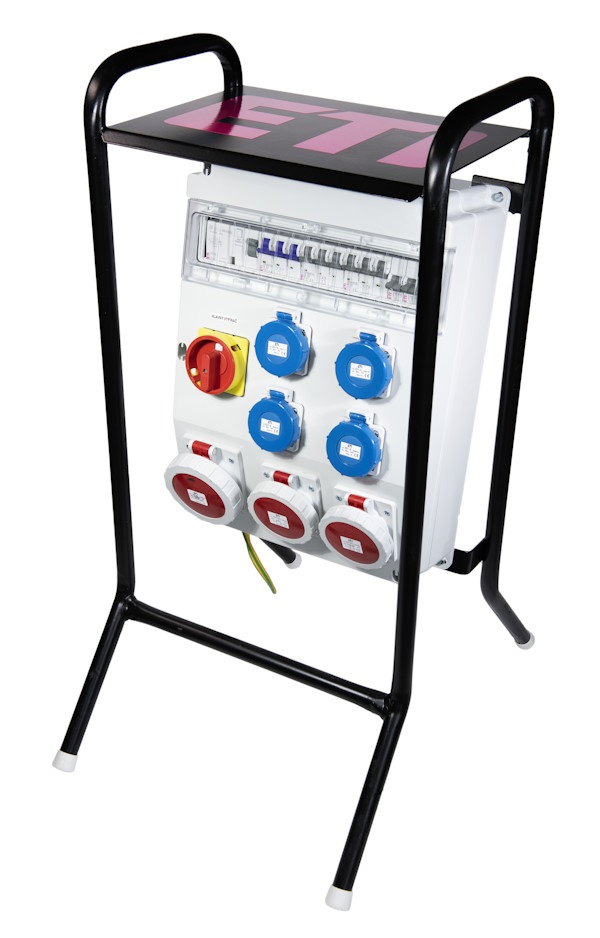

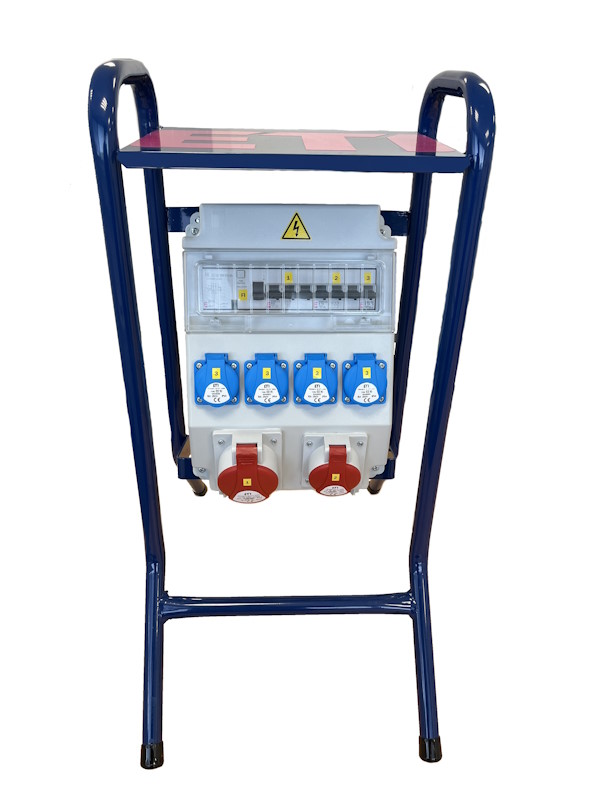

Stand-mounted Version





ETI HRH-ECH and ETI TPS-ECH Level and Pressure Monitoring Switchboards


Easily automate pump operation where it's necessary to pump out conductive liquids from a tank upon reaching the maximum level.
Complete switch set for automatic operation of 1- and 3-phase pumps. Available in several configurations. The version with contactor does not overload the relay with high motor currents, as switching is performed by a motor contactor with AC3-rated contacts. Everything is prepared and wired in a plastic ECH enclosure with IP65 protection and transparent doors. Cable glands are included.

  • Automation of pump start-up in tanks with conductive liquid or in TPS version with a digital pressure switch or float switch
  • The set includes protection only for the relay and contactor – a suitable protective device for the pump must be added beforehand
  • ETI enclosure is UV resistant, IP65 rated.
  • Option to monitor one or two levels
  • Probes are not included – can be supplied separately.
  • Power supply: 230V AC (50-60Hz)
  • Monitoring of one or two levels

Why Choose ETI Switchboards?

Since the establishment of ETI switchboard production, we’ve focused on fast and simple communication with customers and meeting their individual needs for customized switchboard solutions. Our technical and local advantages help us deliver on that promise:

  • High-quality plastic switchboards made in Europe
  • Carefully designed and assembled directly in the Czech Republic
  • The majority of components are from ETI’s own proven production
  • Possibility of custom configurations within the limits of enclosures
