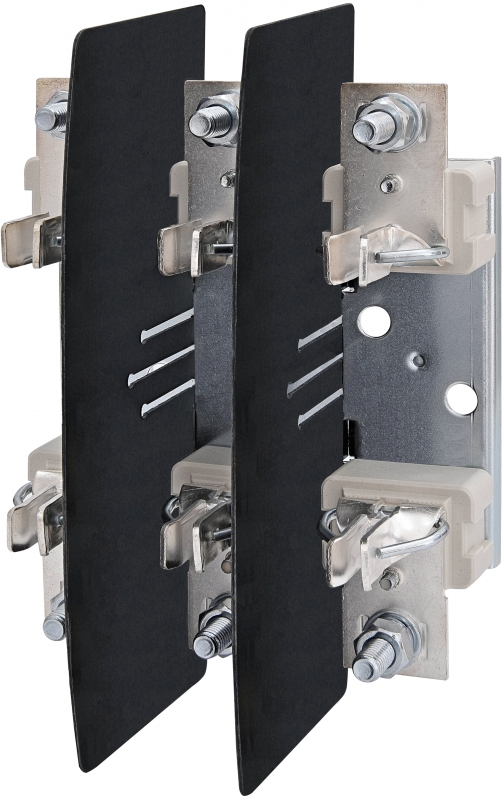

Fuse - base PK 1 M10-M10 3p S 004132200
Specifications
- ETI Code:
- 004132200
- Description:
- PK 1 M10-M10 3p S
- Class name:
- Fuse - base
- Product group:
- LV-fuse base
- Size:
- NH1
- Number of poles:
- 3
- Rated current (A):
- 250
- Rated AC voltage (V):
- 690
- Breaking capacity AC (kA):
- 200
- Rated Frequency (Hz):
- 40-60
- Overvoltage Category:
- III
- Mounting:
- Screw-on
- Standards:
- IEC 60269-2
- Ambient temperature (°C):
- -25... 55°C
- Conventional free air thermal current with fuse links (A):
- 250A
- Conventional free air thermal current with solid links (A):
- 320A
- Max. permissable power dissipation per fuse link (W):
- 32
- Rated operating mode:
- uninterrupted
- Pollution degree:
- 3
Documents
Logistic Data
Product
- Customs tariff
- 85389099
- logis_net_width
- 160 mm
- logis_net_height
- 246 mm
- logis_net_depth
- 107 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895770459
- Basic packaging weight
- 1.929 kg
Transport packaging
- Transport packaging quantity
- 6
- EAN code for a transport packaging
- 3838895770466
- Transport packaging weight
- 12.374 kg
- Pallet quantity
- 120
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Construction size
- NH1
- Number of poles
- 3
- Rated current
- 250A
