002440270
Obsolete

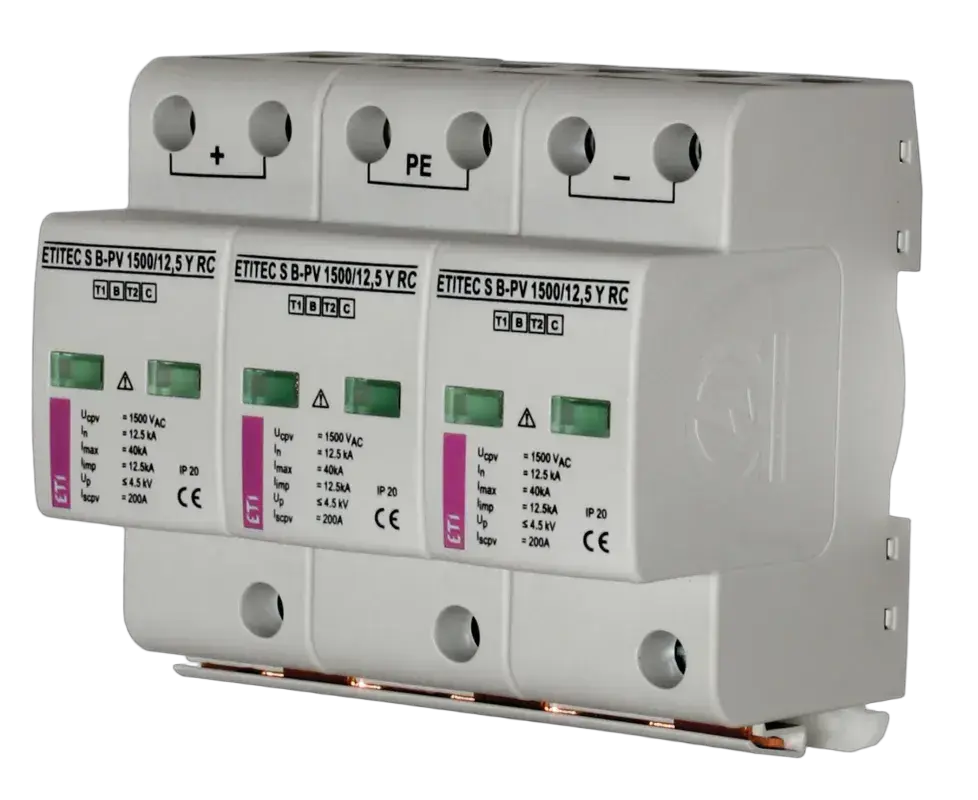

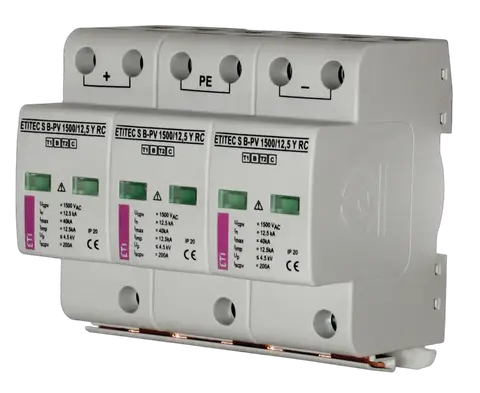

*ETITEC S B-PV 1500/12,5 Y Surge arrester
- ETI Code:
- 002440270
- Function:
- SPD
- Current type:
- DC
- Connectable conductor cross section solid-core:
- 35 mm²
- Surge arrester type:
- T1, T2
- Uc Continous Operating Voltage DC:
- 1,500 V
- Iimp(10/350) Impulse Current:
- 12.5 kA
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Up - Voltage Protection Level:
- 4.5 kV
- Remote signalisation:
- No
- Leakage Current:
- Yes
- Network system:
- DC
- Number of modules:
- 3
- Installation:
- PV protection
- Built-in depth:
- 71 mm
- Applied Technology:
- MOV
- IP rating:
- IP20
- Catalogue Group:
- ETITEC S B PV
2 Documents
15 Logistics
Product
- Net weight of the product
- 580 g
- Net width
- 108 mm
- Net height
- 90 mm
- Net depth
- 71 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895711988
- Basic packaging weight
- 1.2 kg
- Basic packaging volume
- 0.94 dm³
Transport Packaging
- Transport packaging quantity
- 2 pcs
- EAN code for a transport packaging
- 3838895711995
- Transport packaging weight
- 2.4 kg
- Transport packaging volume
- 1.88 dm³
- Pallet quantity
- 400 pcs
- Customs tariff
- 85363090
14 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. continuous voltage DC
- 1,500 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 6 modular spacing
- Lightning impulse current (10/350 µs)
- 12.5 kA
- Specific energy (W/R)
- 39 kJ/Ohm
- Voltage protection level
- 4.5 kV
- Max. PV-voltage
- 1,250 V
- Number of poles
- 2
- Signalling at the device
- Optical
- System configuration DC
- Yes
ETIM Classification – Version 9.0
