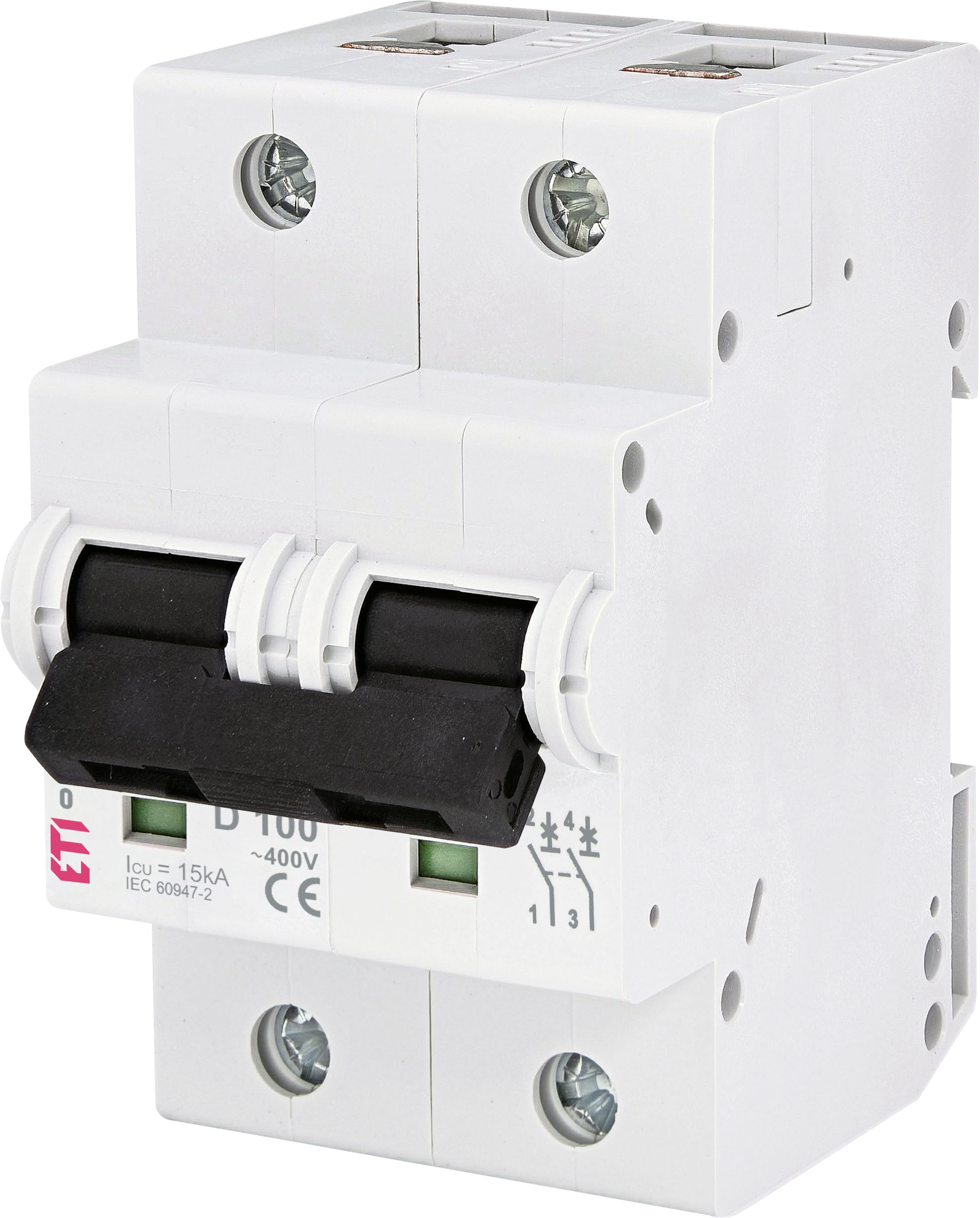

Miniature circuit breaker ETIMAT 10 2p D100 002153732

Specifications

ETI Code:
002153732
Description:
ETIMAT 10 2p D100
Class name:
Miniature circuit breaker
Rated current (A):
100
Tripping characteristic:
D

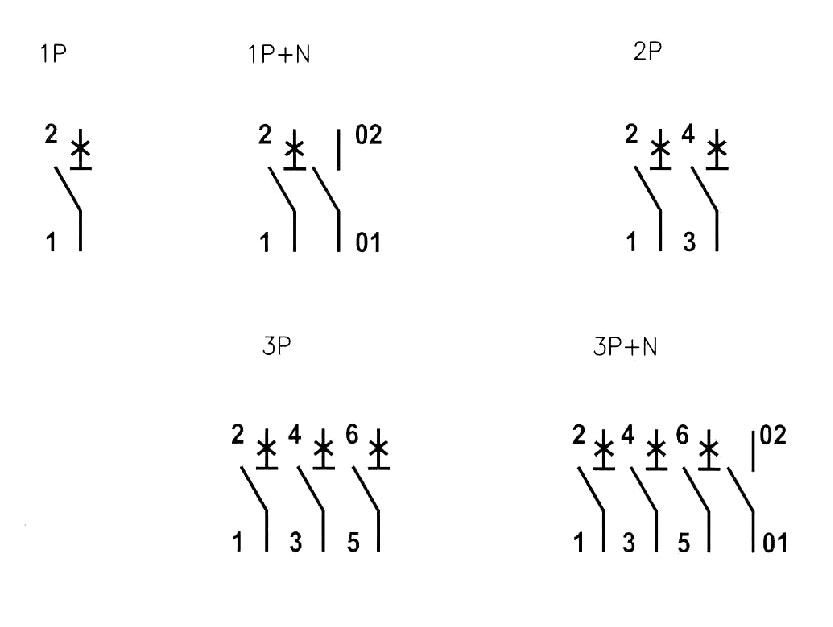

Number of poles:
2
Short circuit capacity (kA):
15
Voltage type:
AC
Rated voltage (V):
415
Rated Frequency (Hz):
50/60
Rated impulse withstand voltage Uimp (kV):
4
Rated cross section:
2.5 - 50
Standards:
IEC/EN 60898-1, IEC 60947-2
Function:
MCB

Documents

Product

Customs tariff
85362090
logis_net_width
54  mm
logis_net_height
91  mm
logis_net_depth
77  mm

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895328278
Basic packaging weight
0.52  kg

Transport packaging

Transport packaging quantity
36
EAN code for a transport packaging
3838895328285
Transport packaging weight
18.96  kg
Pallet quantity
2340
Classification
EC000042
Class name
Miniature circuit breaker (MCB)
Release characteristic
D
Number of poles (total)
2
Number of protected poles
2
Rated current
100A
Rated voltage
415V
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Voltage type
Other
Type of drive
50…60Hz
Current limiting class
3
Over voltage category
3
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
3
Built-in depth
75mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-25…55°C
Connectable conductor cross section multi-wired
2.5…50mm²
Connectable conductor cross section solid-core
2.5…50mm²
