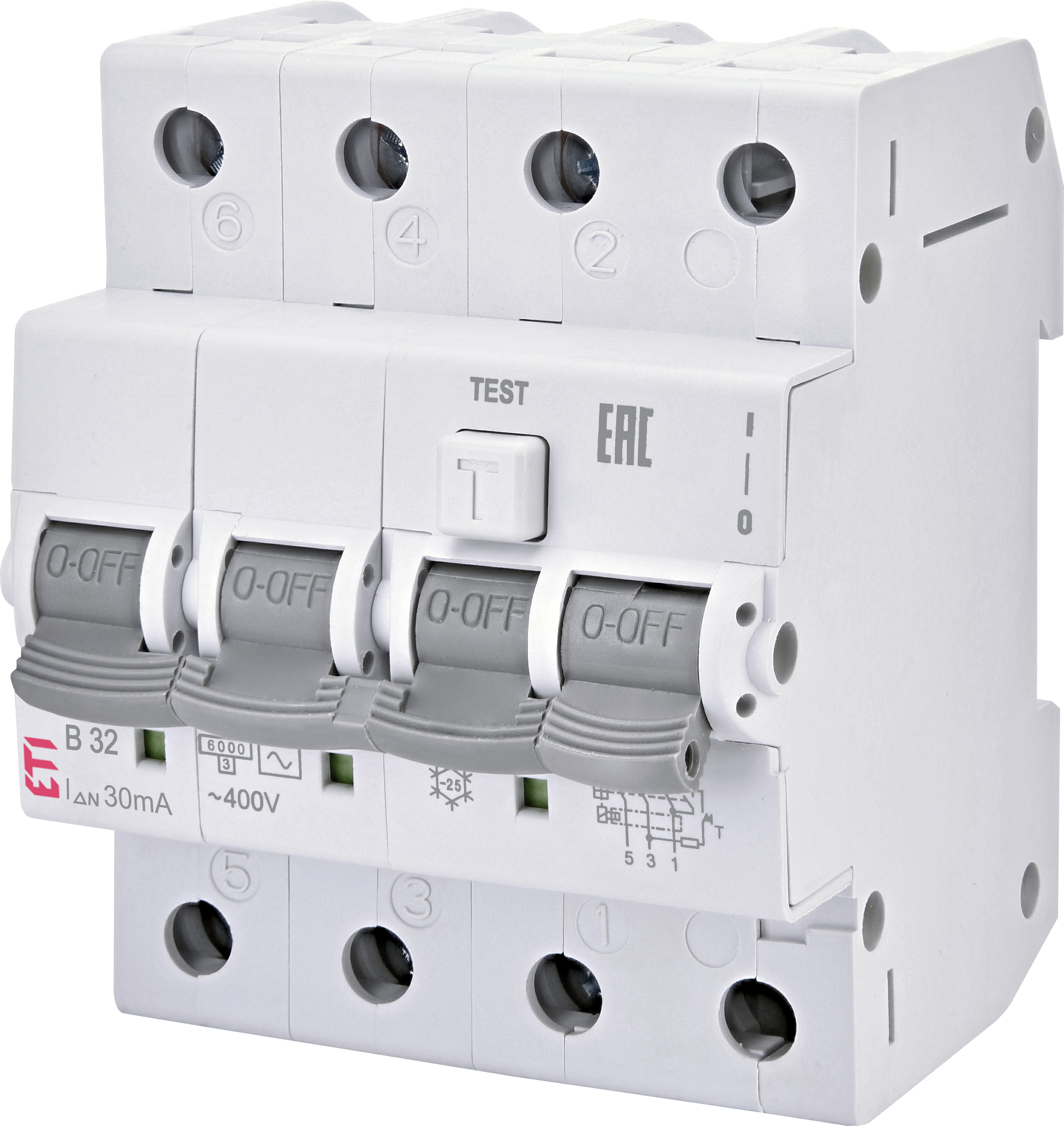

RCBO KZS-4M 3p AC B32/0.03 002174807
Specifications
- ETI Code:
- 002174807
- Description:
- KZS-4M 3p AC B32/0.03
- Class name:
- RCBO
- Rated residual current (A):
- 0.03
- Current type:
- AC
- Rated current (A):
- 32
- Tripping characteristic:
- B
- Type:
- AC
- Number of poles:
- 3
- Short circuit capacity (kA):
- 10
- Rated voltage (V):
- 415
- Rated Frequency (Hz):
- 50/60 Hz
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 61009
Documents
Logistic Data
Product
- Customs tariff
- 85362010
- logis_net_width
- 70 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895575078
- Basic packaging weight
- 0.51 kg
Transport packaging
- Transport packaging quantity
- 27
- EAN code for a transport packaging
- 3838895575085
- Transport packaging weight
- 14.27 kg
- Pallet quantity
- 1404
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Rated voltage
- 415V
- Rated current
- 32A
- Rated fault current
- 0,03A
- Leakage current type
- AC
- Rated short-circuit breaking capacity according to EN 61009
- 10kA
- Frequency
- Other
- Release characteristic
- B
- Connectable conductor cross section multi-wired
- 1…25mm²
