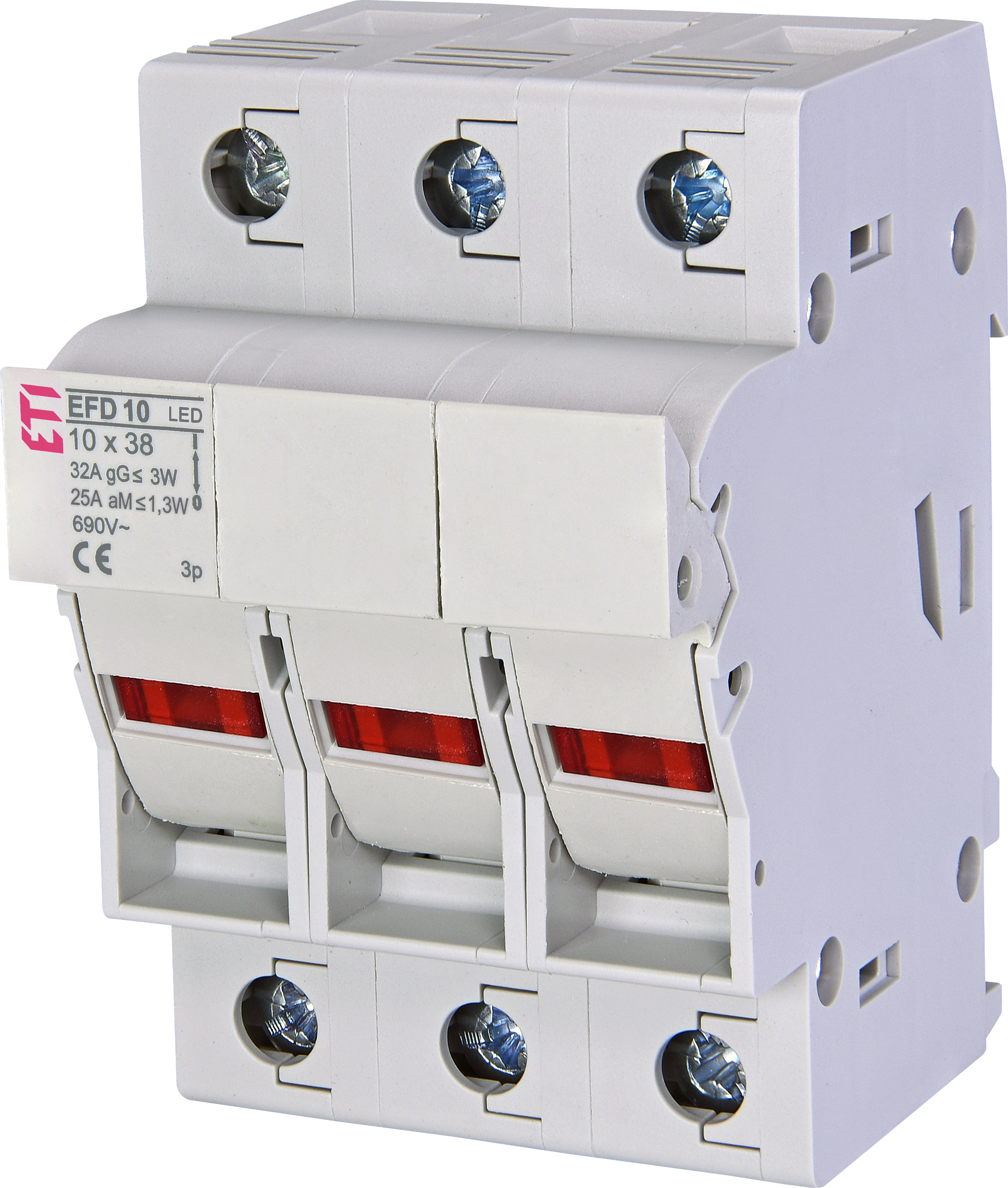

Fuse disconnector EFD 10 3p LED 002540014
Specifications
- ETI Code:
- 002540014
- Description:
- EFD 10 3p LED
- Class name:
- Fuse disconnector
- Mounting type:
- TH 35
- Size:
- 10x38
- Rated current (A):
- 32
- Number of poles:
- 3
- Rated AC voltage (V):
- 690
- Utilization category:
- AC-22B
- Connection:
- 1 - 25mm2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895744962
- Net weight of the product
- 0.186 kg
- Customs tariff
- 85389099
- logis_net_width
- 53 mm
- logis_net_height
- 83 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 4
- EAN code for a basic packaging
- 3838895702306
- Basic packaging weight
- 0.8 kg
Transport packaging
- Transport packaging quantity
- 36
- EAN code for a transport packaging
- 3838895702313
- Transport packaging weight
- 7.456 kg
- Pallet quantity
- 1872
ETIM Clasification
- Classification
- EC002705
- Class name
- Holder for cylindrical fuse
- Mounting method
- Other
- For fuse size
- 10x38 mm
- Number of poles
- 3
