Fuse - base EFD CC 1p AD 002540401
Specifications
- ETI Code:
- 002540401
- Description:
- EFD CC 1p AD
- Class name:
- Fuse - base
- Mounting type:
- TH 35
- Size:
- CC
- Rated current (A):
- 30
- Number of poles:
- 1
- Rated AC voltage (V):
- 600
- Connection:
- AWG 18-8
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400032744
- Net weight of the product
- 0.073 kg
- Customs tariff
- 85389099
- logis_net_width
- 18 mm
- logis_net_height
- 81 mm
- logis_net_depth
- 71 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895711582
- Basic packaging weight
- 0.872 kg
Transport packaging
- Transport packaging quantity
- 108
- EAN code for a transport packaging
- 3838895711599
- Transport packaging weight
- 8.107 kg
- Pallet quantity
- 5616

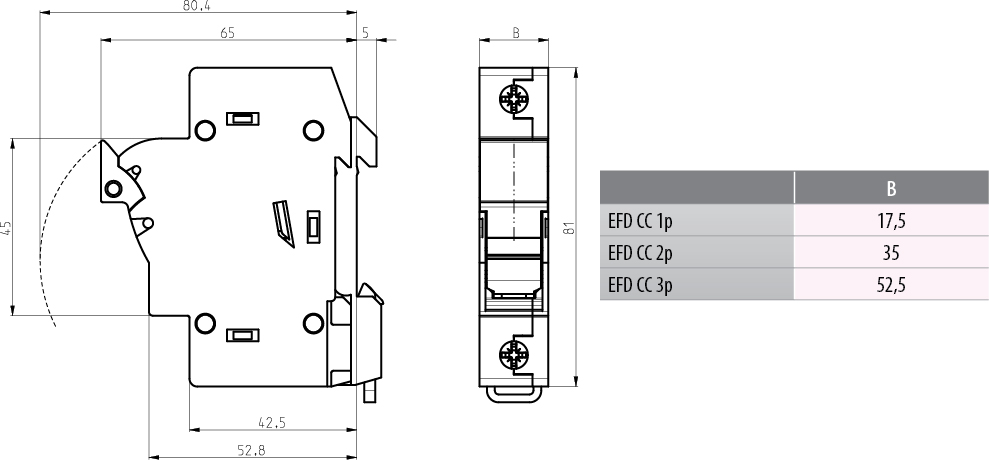

Images & Diagrams
Software & drivers
