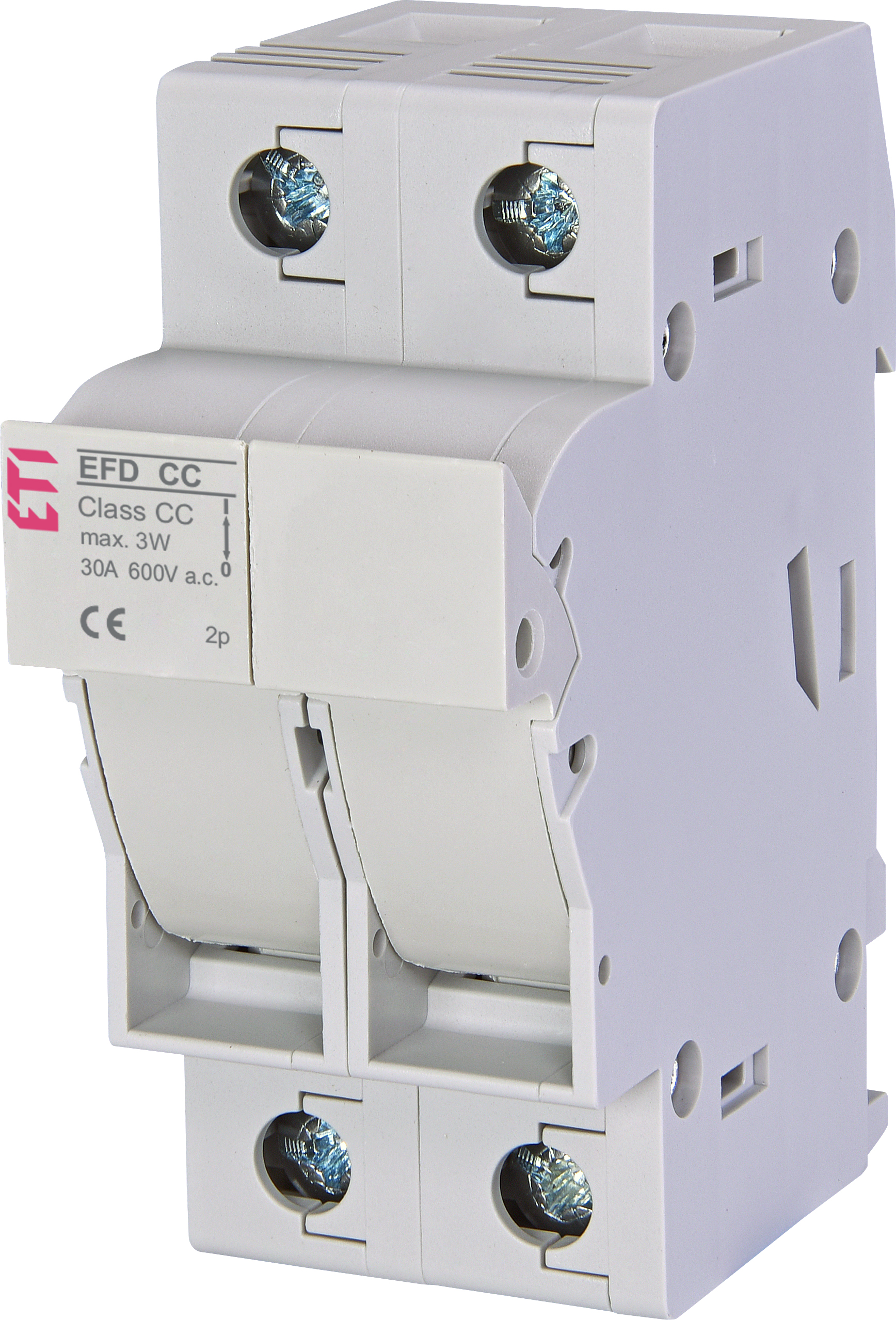

Fuse - base EFD CC 2p AD 002540403
Specifications
- ETI Code:
- 002540403
- Description:
- EFD CC 2p AD
- Class name:
- Fuse - base
- Mounting type:
- TH 35
- Size:
- CC
- Rated current (A):
- 30
- Number of poles:
- 2
- Rated AC voltage (V):
- 600
- Connection:
- AWG 18-8
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400032782
- Net weight of the product
- 0.143 kg
- Customs tariff
- 85389099
- logis_net_width
- 35 mm
- logis_net_height
- 81 mm
- logis_net_depth
- 71 mm
Basic packaging
- Basic packaging quantity
- 6
- EAN code for a basic packaging
- 3838895711605
- Basic packaging weight
- 0.86 kg
Transport packaging
- Transport packaging quantity
- 54
- EAN code for a transport packaging
- 3838895711612
- Transport packaging weight
- 7.999 kg
- Pallet quantity
- 2808

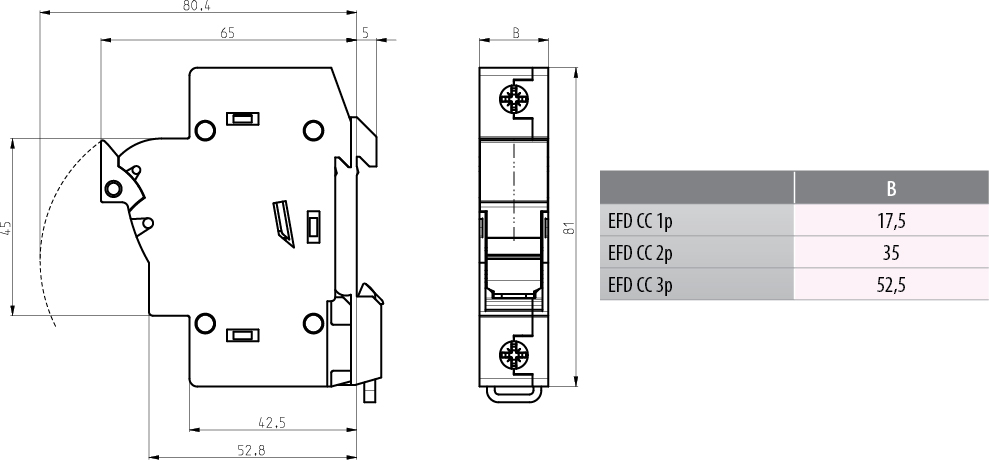

Images & Diagrams
