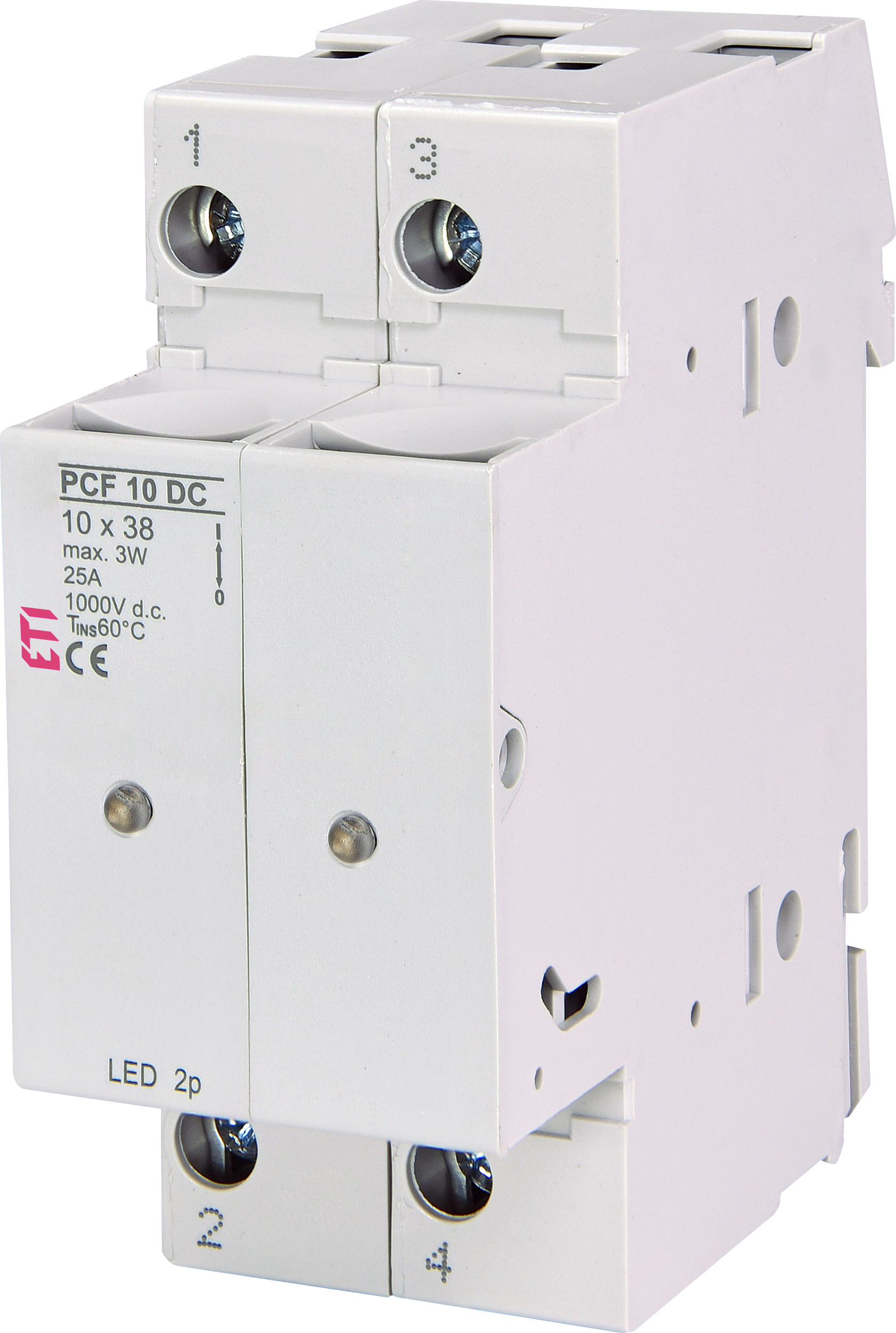

Fuse disconnector PCF 10 DC 2p LED 1000V 002550213 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 002550213
- Description:
- *PCF 10 DC 2p LED 1000V
- Class name:
- Fuse disconnector
- Rated current (A):
- 25
- Number of poles:
- 2
- Rated DC voltage (V):
- 1000
- Indicator:
- LED
- Product group:
- LV-fuse disconnector
- Connection:
- 10mm2
- Catalogue Group:
- LV-fuse disconnector
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895716105
- Net weight of the product
- 0.12 kg
- Customs tariff
- 85389099
- logis_net_width
- 35 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 71 mm
Basic packaging
- Basic packaging quantity
- 6
- EAN code for a basic packaging
- 3838895489610
- Basic packaging weight
- 0.71 kg
Transport packaging
- Transport packaging quantity
- 54
- EAN code for a transport packaging
- 3838895618249
- Transport packaging weight
- 6.4 kg
- Pallet quantity
- 2808
ETIM Clasification
- Classification
- EC001040
- Class name
- Fuse switch disconnector
- Rated permanent current Iu
- 25A
- Suitable for fuses
- Other
- Number of poles
- 2
- With error protection
- Yes
- Type of electrical connection of main circuit
- Frame clamp
- Suitable for busbar mounting
- Yes
- Type of control element
- Cover grip
- Degree of protection (IP), front side
- IP20
*PCF 10 DC 2p LED 1000V
