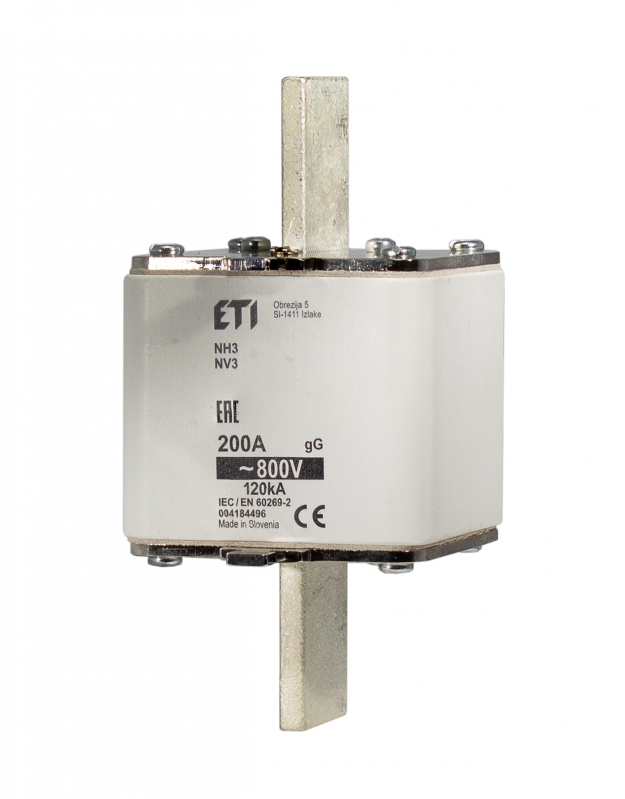

Fuse link NH3 gG 200A/800V 004184496 Obsolete
This product is obsolete and has been replaced with NH3 gG 200A/800V.
Compare products
Specifications
- ETI Code:
- 004184496
- Description:
- *NH3 gG 200A/800V
- Class name:
- Fuse link
- Rated current (A):
- 200
- Type:
- NH
- Size:
- NH3
- Characteristics:
- gG
- Rated AC voltage (V):
- 800
- Indicator:
- Top fuse status indicator
- Breaking capacity AC (kA):
- 120
- Operating joule integral (A2s):
- 650.000
- Prearcing joule integral (A2s):
- 50.000
- Application:
- For cable protection on 800V a.c. system voltage
- Power dissipation (W):
- 16
- Standards:
- IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895901013
- Net weight of the product
- 1 kg
- Customs tariff
- 85361090
- logis_net_width
- 74 mm
- logis_net_height
- 152 mm
- logis_net_depth
- 88 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895819806
- Basic packaging weight
- 3.3 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895819813
- Transport packaging weight
- 17.05 kg
- Pallet quantity
- 360
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH3
- Rated current
- 200
- Rated voltage
- 800
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

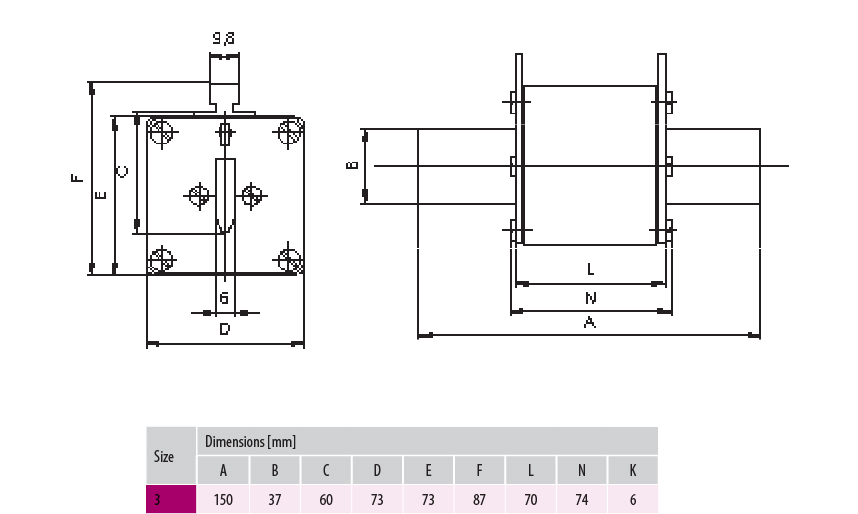

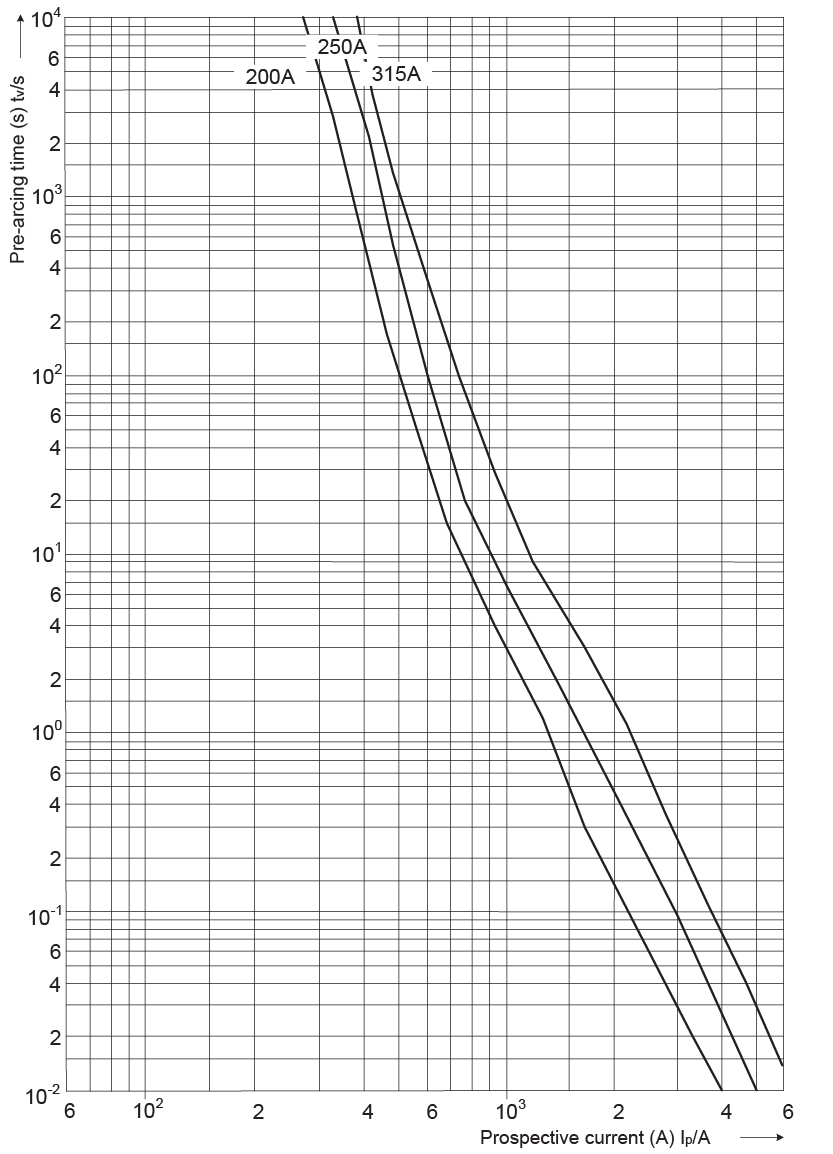

Images & Diagrams
