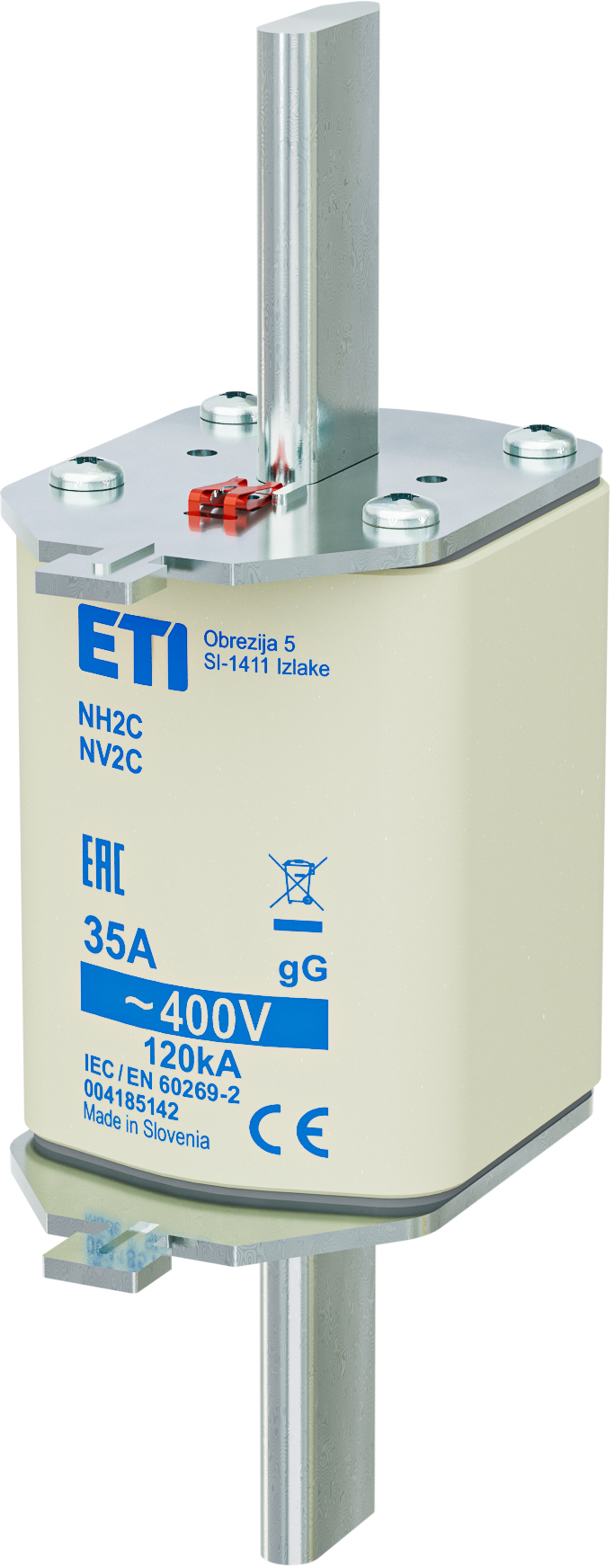

Fuse link NH2C gG 35A/400V korr. 004185142
Specifications
- ETI Code:
- 004185142
- Description:
- NH2C gG 35A/400V korr.
- Class name:
- Fuse link
- Type:
- NH-C
- Size:
- NH2C
- Rated current (A):
- 35
- Rated AC voltage (V):
- 400
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 120
- Application:
- For cable protection. Corrosion resistant
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 3,2
- Operating joule integral (A2s):
- 6.400
- Prearcing joule integral (A2s):
- 1.300
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400035073
- Net weight of the product
- 0.457 kg
- Customs tariff
- 85361050
- logis_net_width
- 46 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895427889
- Basic packaging weight
- 1.37 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895427896
- Transport packaging weight
- 7.3 kg
- Pallet quantity
- 780
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH2C
- Rated current
- 35
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
NH2C gG 35A/400V korr.
