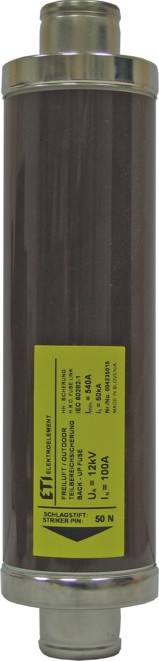

Fuse link VVC 12kV/250A 537 004235619 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004235619
- Description:
- * VVC 12kV/250A 537
- Class name:
- Fuse link
- Rated current (A):
- 250
- Type:
- VVC
- Rated AC voltage (V):
- 12000
- Indicator:
- striker 50N
- Breaking capacity AC (kA):
- 63
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895299257
- Net weight of the product
- 7 kg
- Customs tariff
- 85351000
- logis_net_width
- 87 mm
- logis_net_height
- 603 mm
- logis_net_depth
- 87 mm
Transport packaging
- Transport packaging quantity
- 3
- EAN code for a transport packaging
- 3838895299264
- Transport packaging weight
- 21.5 kg
- Pallet quantity
- 90
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 250A

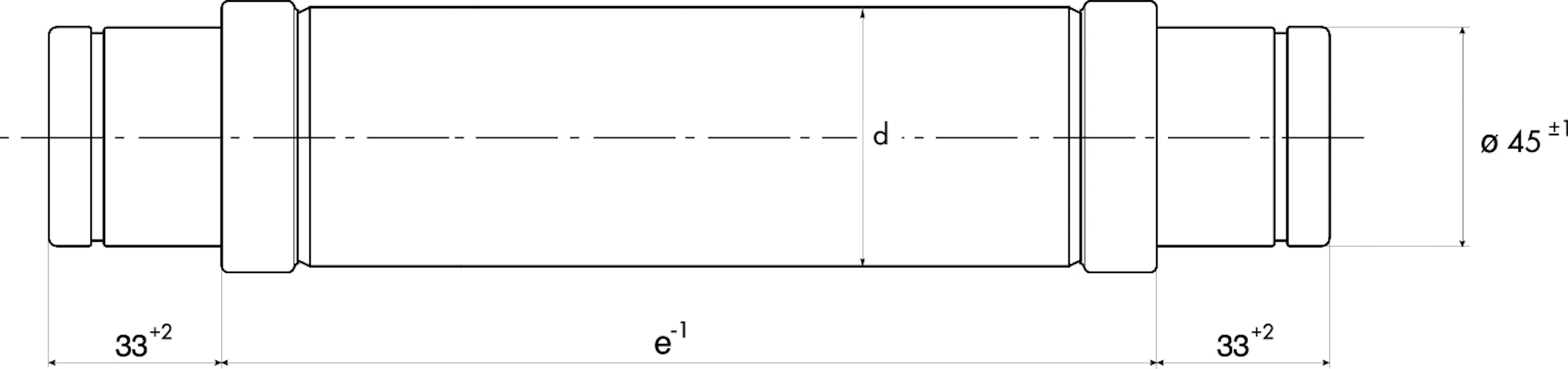

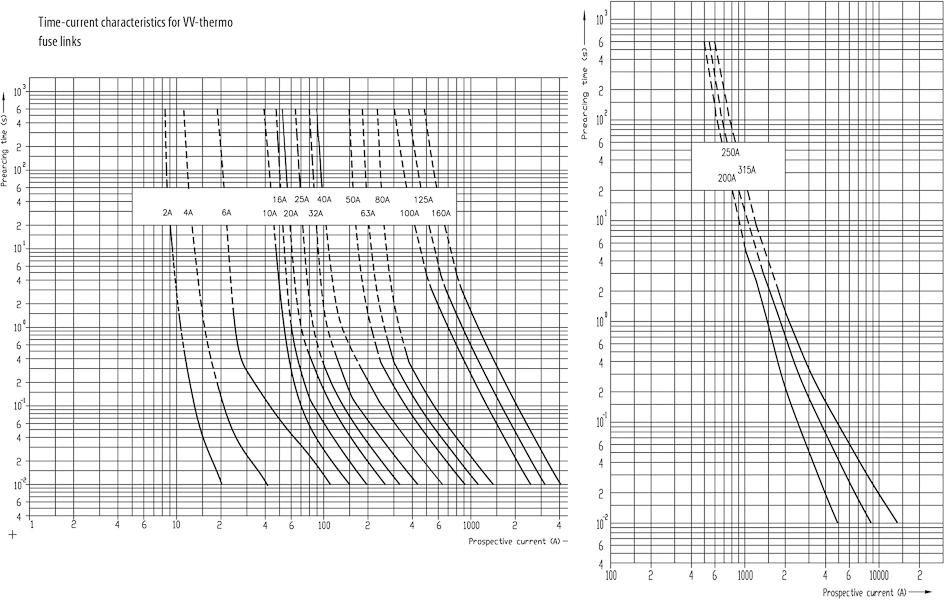

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
* VVC 12kV/250A 537
