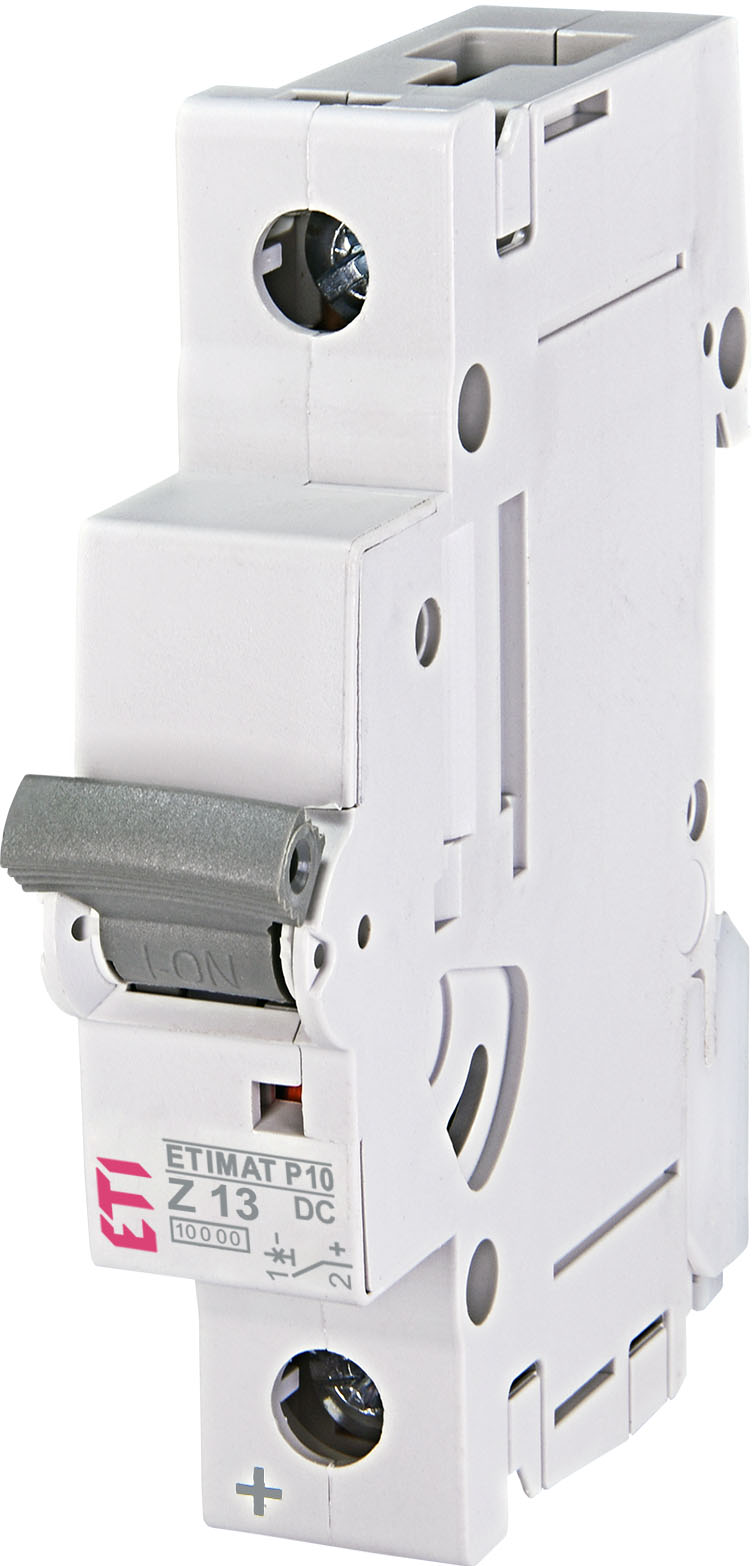

Miniature circuit breaker ETIMAT P10-DC 1p Z13 261304105
Specifications
- ETI Code:
- 261304105
- Description:
- ETIMAT P10-DC 1p Z13
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 13
- Tripping characteristic:
- Z
- Number of poles:
- 1
- Short circuit capacity (kA):
- 10
- Voltage type:
- DC
- Rated voltage (V):
- 220
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 60898-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895798330
- Net weight of the product
- 0.115 kg
- Customs tariff
- 85362010
- logis_net_width
- 18 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895798347
- Basic packaging weight
- 1.446 kg
Transport packaging
- Transport packaging quantity
- 60
- EAN code for a transport packaging
- 3838895798354
- Transport packaging weight
- 7.43 kg
- Pallet quantity
- 5040
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
ETIMAT P10-DC 1p Z13
