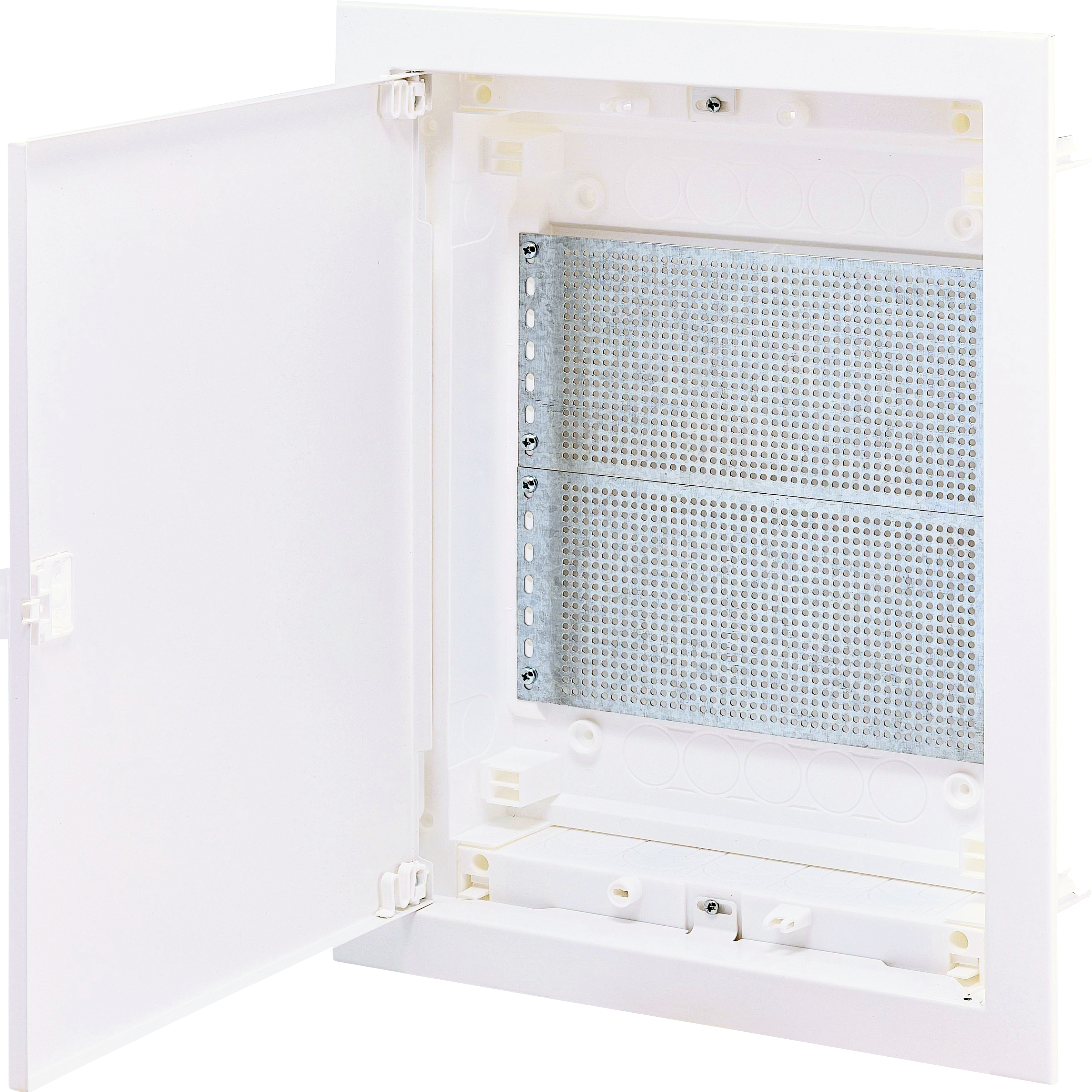

Distribution box ECG28MEDIA 001101153 Obsolete
This product is obsolete and has been replaced with ECG28MEDIA-I.
Compare products
Specifications
- ETI Code:
- 001101153
- Description:
- * ECG28MEDIA
- Class name:
- Distribution box
- Protection Class:
- II
- Mounting type:
- Flush mounted
- IP rating:
- IP40
Documents
Logistic Data
Product
- Customs tariff
- 85381000
- logis_net_width
- 425 mm
- logis_net_height
- 442 mm
- logis_net_depth
- 98 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895712466
- Transport packaging weight
- 2.5 kg
- Pallet quantity
- 100
ETIM Clasification
- Classification
- EC000214
- Class name
- Small distribution board
- Mounting method
- Flush-mounted (plaster)
- Number of rows
- 2
- Width in number of modular spacings
- 14
- Housing material
- Plastic
- Height
- 442mm
- Width
- 346mm
- Depth
- 87mm
- Built-in depth
- 88mm
- With mounting plate
- Yes
- EMC-version
- Yes
- Colour
- White
- Degree of protection (IP)
- IP40
