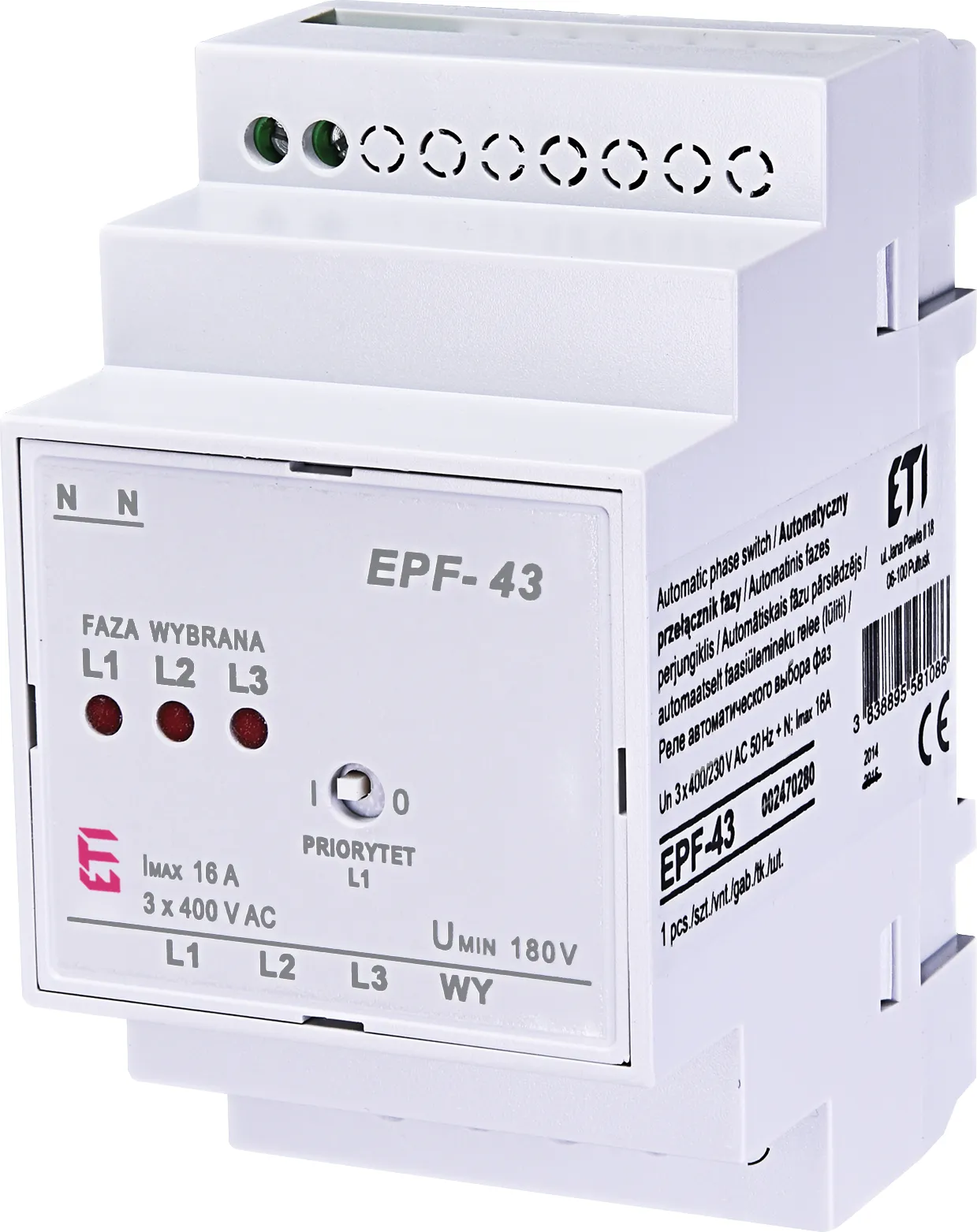

Control relay EPF-43 002470280
Specifications
- ETI Code:
- 002470280
- Description:
- EPF-43
- Class name:
- Control relay
- Number of NO contacts:
- 1
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 400V
- Type of control:
- Automatic phase selection at 180V
- Voltage type:
- AC
- Rated current (A):
- 16A
Documents
Logistic Data
Product
- Net weight of the product
- 0.14 kg
- Customs tariff
- 85364900
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895581086
- Basic packaging weight
- 0.144 kg
Transport packaging
- Transport packaging quantity
- 4
- EAN code for a transport packaging
- 3838895581093
- Transport packaging weight
- 0.576 kg
- Pallet quantity
- 5540
ETIM Clasification
- Classification
- EC001438
- Class name
- Voltage monitoring relay
- Type of electric connection
- Clip connection
- Type of voltage measuring range
- AC
- Rated control supply voltage AC 50 Hz
- 400…400V
- Voltage type for actuating
- AC
- Response value voltage
- 180…180V
- Max. permitted off-delay time
- 0,2s
- Number of contacts as normally open contact
- 1
- Width
- 54mm
- Height
- 90mm
- Depth
- 65mm
EPF-43
