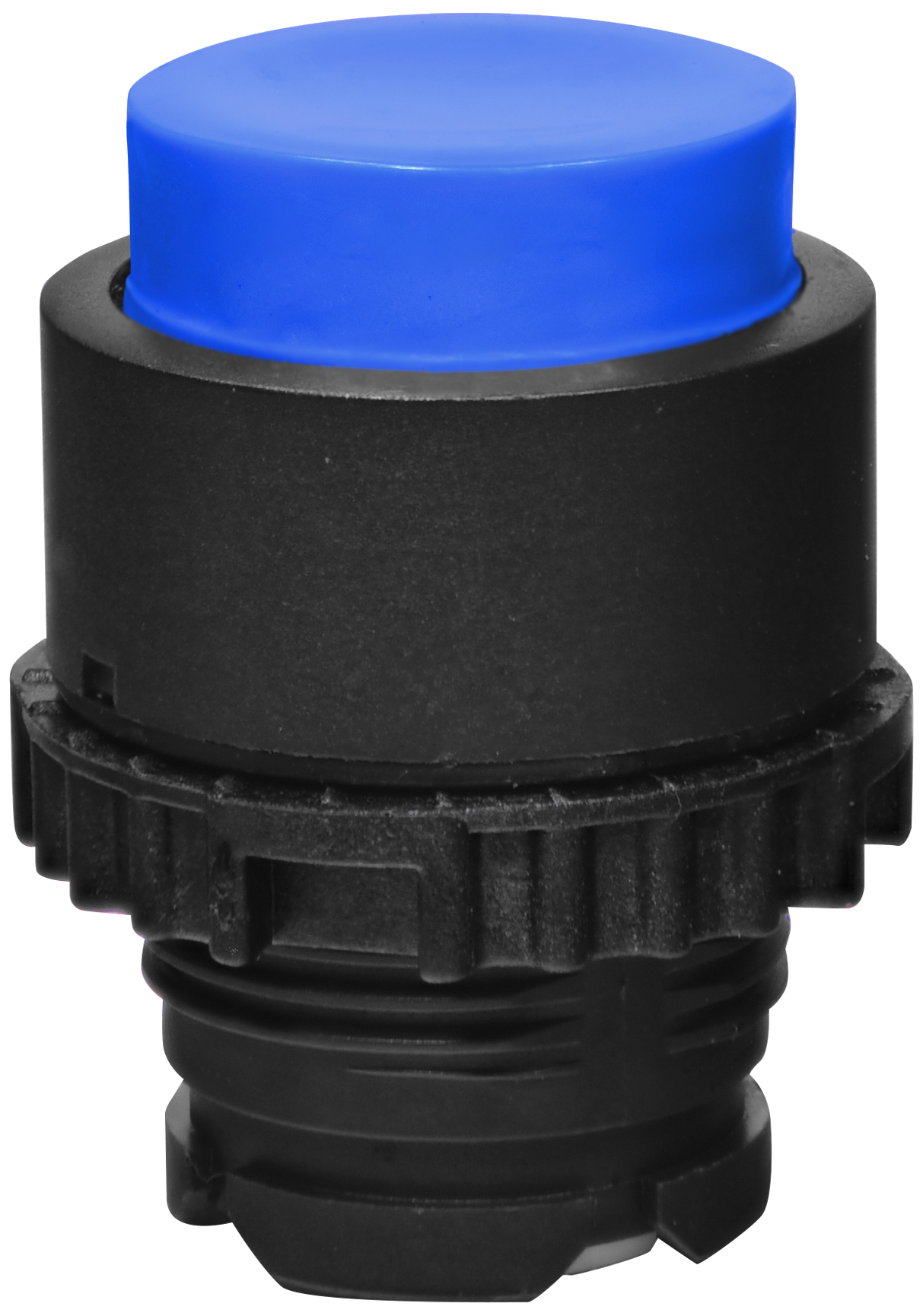

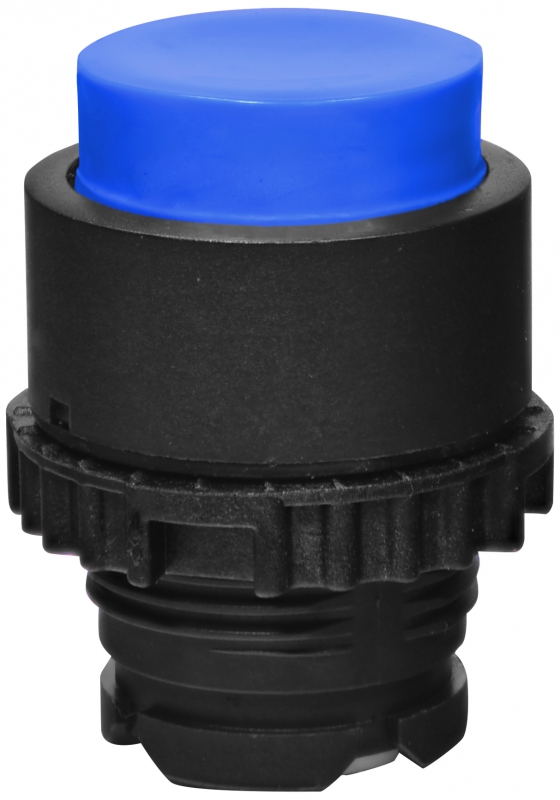

Push button actuator NSE-PBP-B 004774014
Specifications
- ETI Code:
- 004774014
- Description:
- NSE-PBP-B
- Class name:
- Push button actuator
- Number of NO contacts:
- 1
- Approvals:
- CE
- Function:
- Extended head pushbutton
- Type:
- Spring return, non-illuminated
- Color:
- Blue
- IP rating:
- IP66
- Rated insulation voltage (V):
- 690
- Hole diameter (mm):
- 22,5
- Mechanical cycles:
- 3.000.000
- Standards:
- IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5
Documents
Logistic Data
Product
- Customs tariff
- 85365080
- logis_net_width
- 31 mm
- logis_net_height
- 31 mm
- logis_net_depth
- 33 mm
Basic packaging
- Basic packaging quantity
- 1
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 7909712854761
- Transport packaging weight
- 0.021 kg
- Pallet quantity
- 1080
