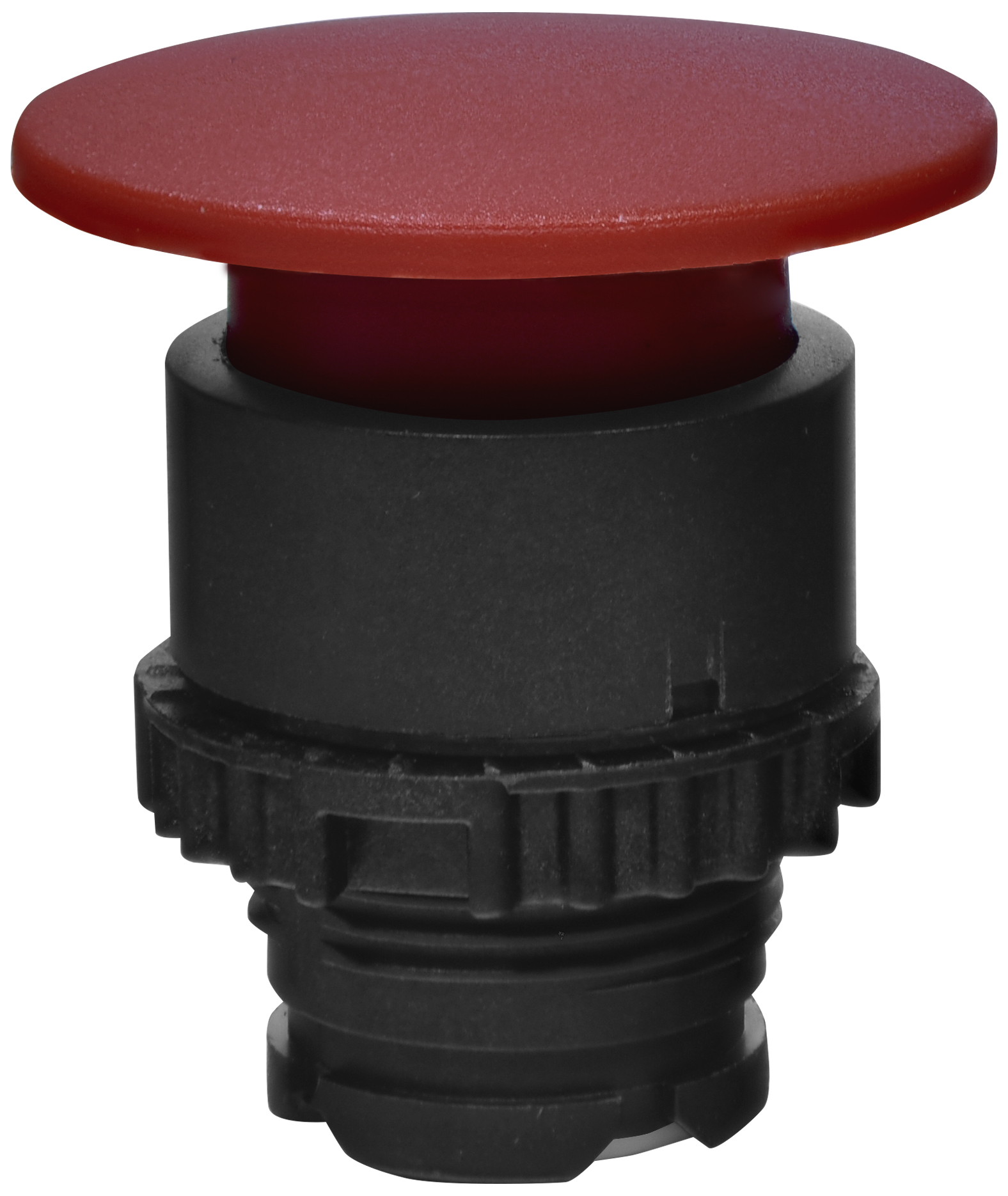

Push button actuator NSE-PBM-R 004774020

Specifications

ETI Code:
004774020
Description:
NSE-PBM-R
Class name:
Push button actuator
Number of NO contacts:
1
Approvals:
CE
Function:
Mushroom pushbutton
Type:
Spring return, non-illuminated
Color:
Red
IP rating:
IP66
Rated insulation voltage (V):
690
Hole diameter (mm):
22,5
Mechanical cycles:
300.000
Standards:
IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5

Documents

Product

Customs tariff
85365080
logis_net_width
40  mm
logis_net_height
40  mm
logis_net_depth
38  mm

Basic packaging

Basic packaging quantity
1

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
7909712854785
Transport packaging weight
0.024  kg
Pallet quantity
828

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
004774020 Push button actuator, NSE-PBM-R ETISIG NSE Actuators and indicators NSE Actuators and indicators Non-illuminated actuators Non-illuminated actuators Push Button Mushroom type Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Actuators and indicators with accessories Actuators and indicators Function Mushroom pushbutton Type Spring return, non-illuminated IP rating IP66 Color Red Standards IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5 Number of NO contacts 1 Contacts 1x NO Rated insulation voltage 690V Hole diameter 22,5mm Approvals CE Mechanical cycles 300.000
