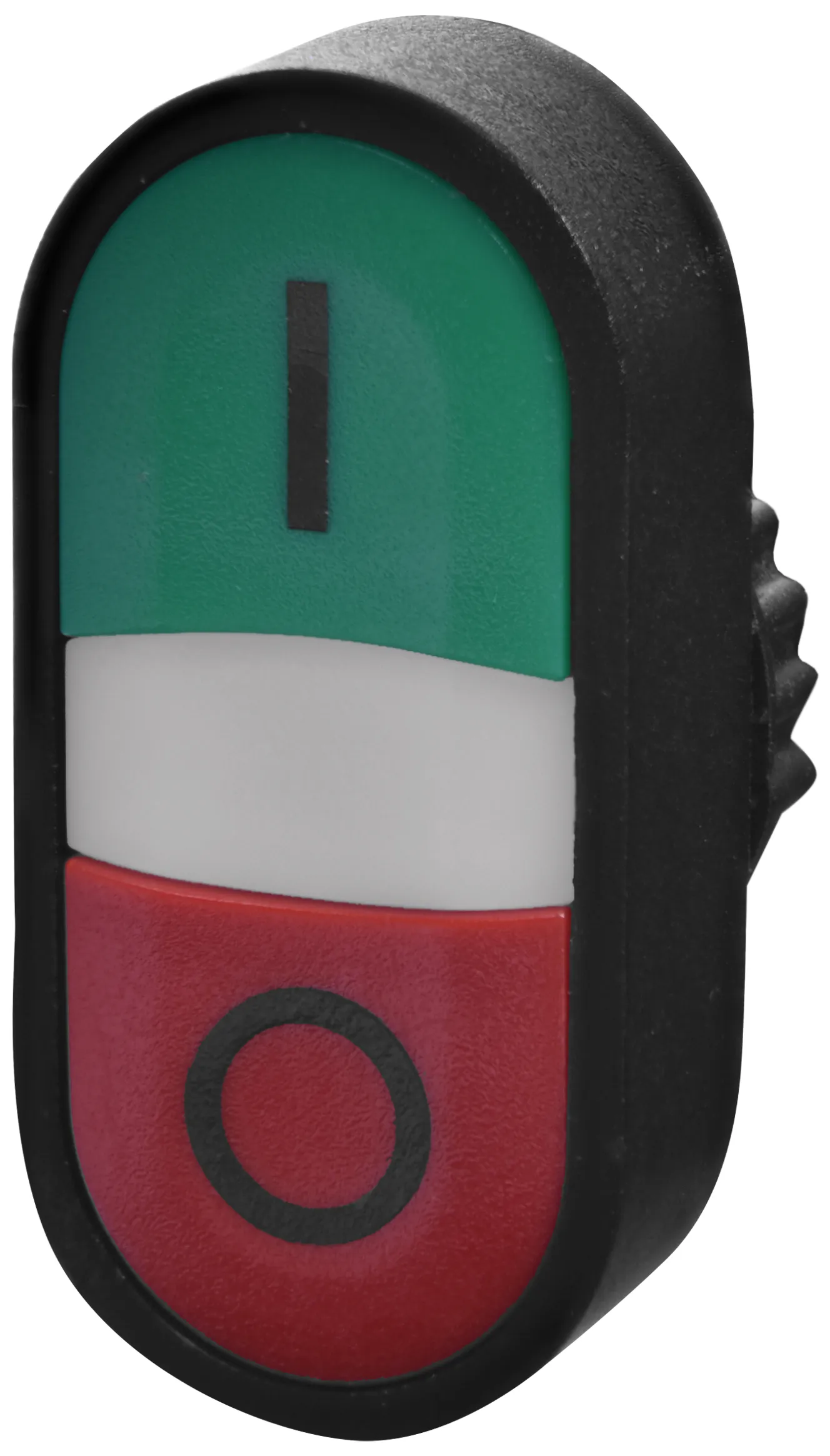

Illu. Push button actuator NSE-PB2I-F/RG-IO 004774078
Specifications
- ETI Code:
- 004774078
- Description:
- NSE-PB2I-F/RG-IO
- Class name:
- Illu. Push button actuator
- Approvals:
- CE
- Function:
- Twin pushbutton
- Type:
- Spring return, non-illuminated, I / O
- Color:
- GREEN / RED
- IP rating:
- IP52
- Rated insulation voltage (V):
- 690
- Mechanical cycles:
- 2.000.000
- Standards:
- IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5
Documents
Logistic Data
Product
- Customs tariff
- 85365080
- logis_net_width
- 58 mm
- logis_net_height
- 31 mm
- logis_net_depth
- 26 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 7909712855126
- Basic packaging weight
- 0.025 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 17909712855123
- Transport packaging weight
- 0.25 kg
- Pallet quantity
- 2700
