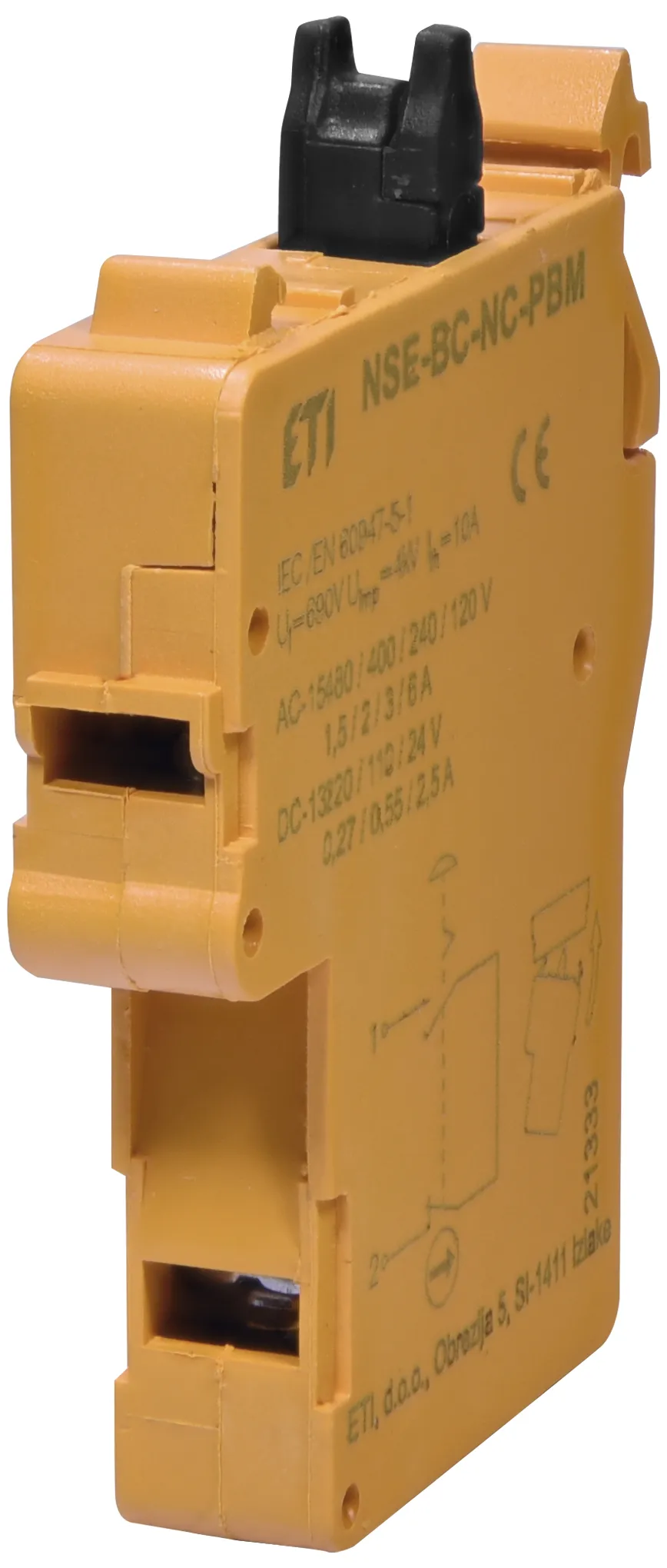

Push button accesories NSE-BC-NC-PBM 004774114

Specifications

ETI Code:
004774114
Description:
NSE-BC-NC-PBM
Class name:
Push button accesories
Function:
Contact block with self-monitoring function
Rated AC voltage (V):
120V/400V
Rated DC voltage (V):
24V/220V

Documents

Product

Net weight of the product
0.019  kg
Customs tariff
85389099
logis_net_width
10  mm
logis_net_height
44  mm
logis_net_depth
60  mm

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
7909712855355
Basic packaging weight
0.23  kg

Transport packaging

Transport packaging quantity
10
EAN code for a transport packaging
17909712855352
Transport packaging weight
0.23  kg
Pallet quantity
7560
004774114 Push button accesories, NSE-BC-NC-PBM ETISIG NSE Actuators and indicators NSE Actuators and indicators Accessories Accessories Block Contact Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Actuators and indicators with accessories Accessories Function Contact block with self-monitoring function Rated current 1,5 ... 6 (AC) A 0,27 ... 2,5 (DC)A Number of NC contacts 1 Rated AC voltage 120 ... 400V Rated DC voltage 24 ... 220V Voltage type AC DC Rated impulse withstand voltage Uimp 4kV Contacts 1x NC Rated insulation voltage 690V Thermal current Ith 10A

Accessories 10

>
>
