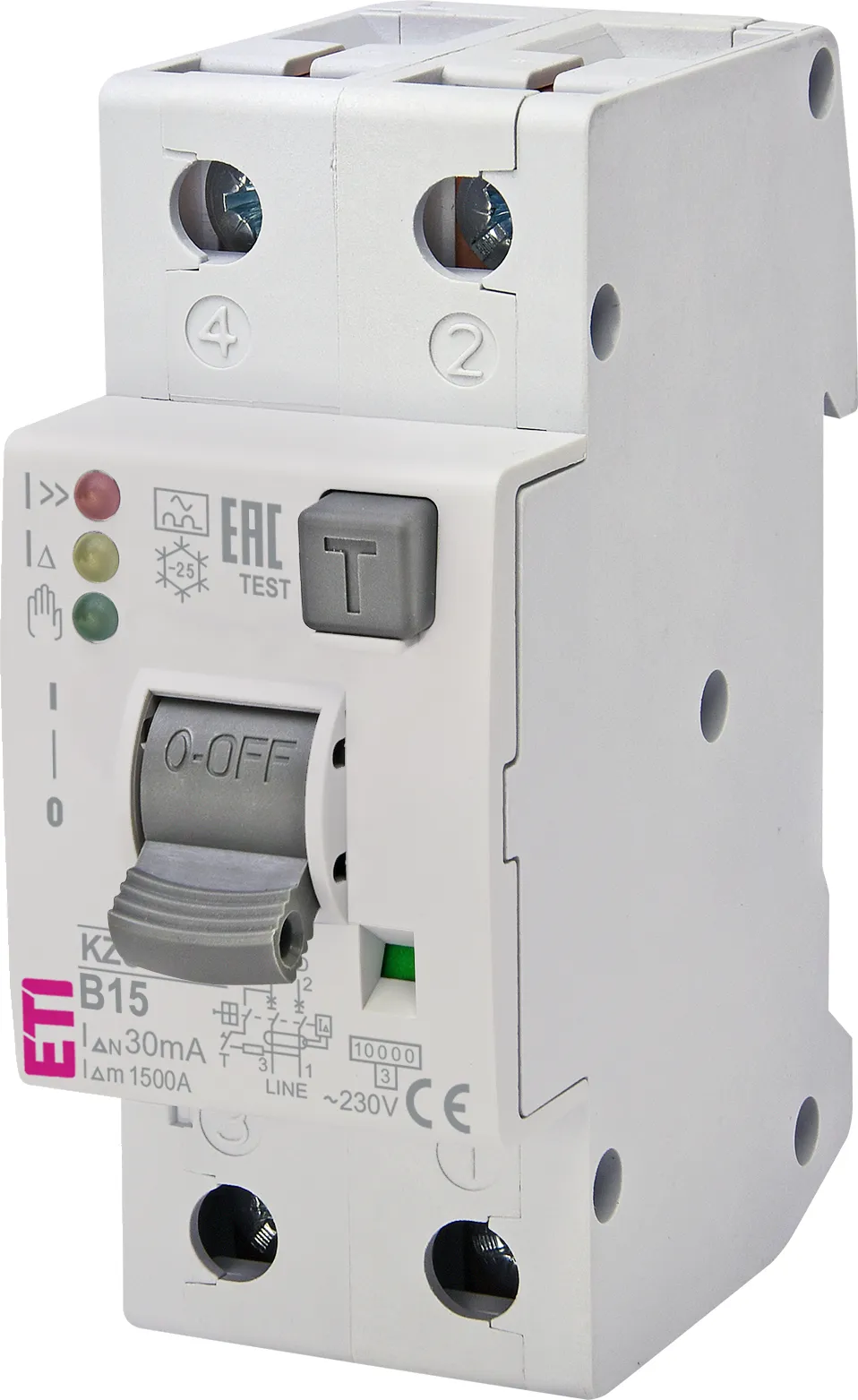

RCBO KZS-2M2p EDI A B15/0.03 002172404
Specifications
- ETI Code:
- 002172404
- Description:
- KZS-2M2p EDI A B15/0.03
- Class name:
- RCBO
- Rated residual current (A):
- 3A
- Rated current (A):
- 15A
- Tripping characteristic:
- B
- Number of poles:
- 2
- Short circuit capacity (kA):
- 10kA
- Rated Frequency (Hz):
- 50Hz/60Hz
- Rated cross section:
- 1mm²
- Standards:
- IEC 61009
Documents
Logistic Data
Product
- Net weight of the product
- 0.205 kg
- Customs tariff
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 89 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895724469
- Basic packaging weight
- 0.227 kg
Transport packaging
- Transport packaging quantity
- 54
- EAN code for a transport packaging
- 3838895724476
- Transport packaging weight
- 12.7 kg
- Pallet quantity
- 2808
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230V
- Rated current
- 15A
- Rated fault current
- 0,03A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- Yes
- Over voltage category
- 3
- Ambient temperature during operating
- -25…40°C
- Width in number of modular spacings
- 2
- Built-in depth
- 69mm
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²
