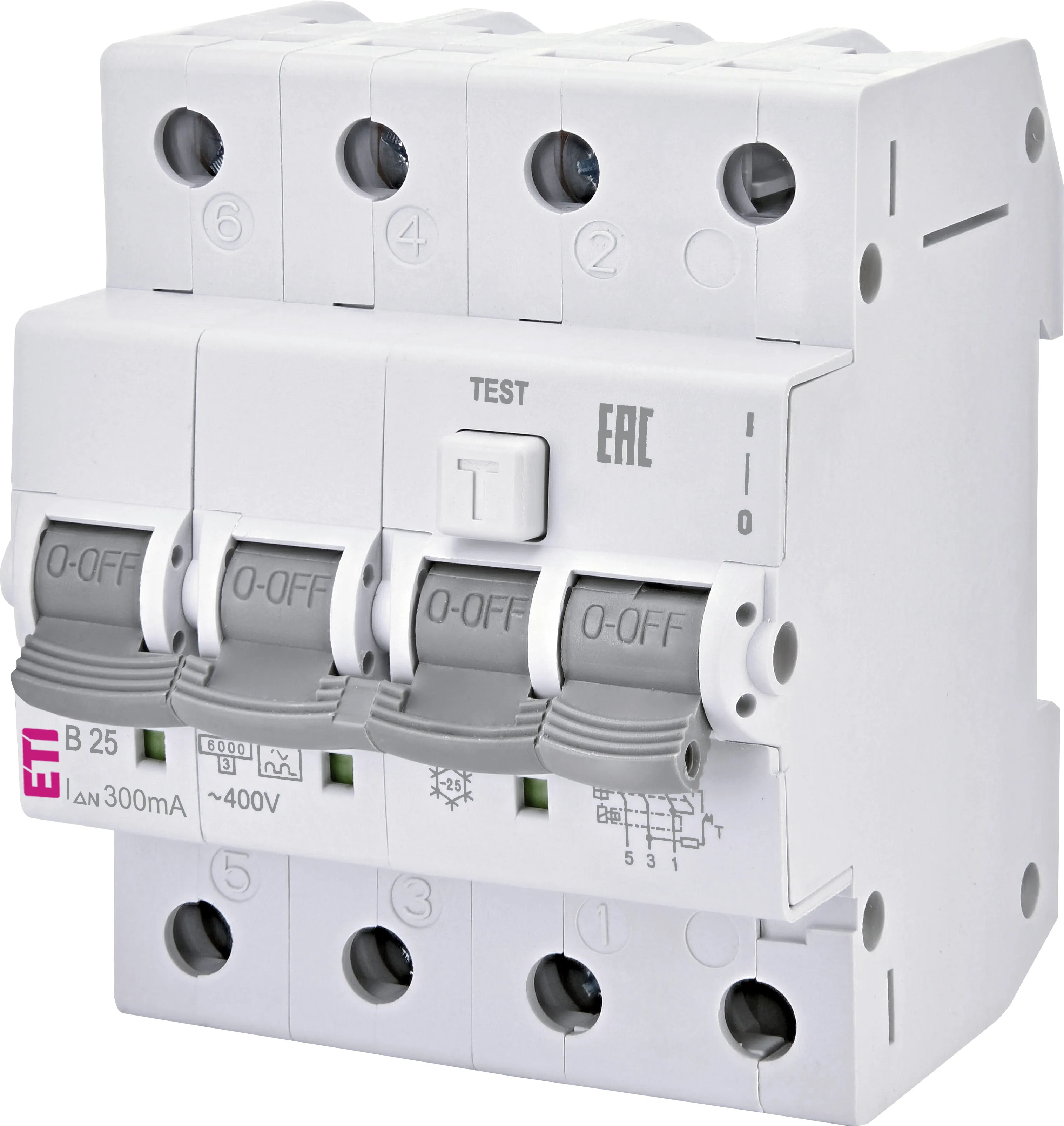

RCBO KZS-4M 3p A B25/0.3 002174206

Specifications

ETI Code:
002174206
Description:
KZS-4M 3p A B25/0.3
Class name:
RCBO
Rated residual current (A):
3A
Rated current (A):
25A
Tripping characteristic:
B
Number of poles:
3
Short circuit capacity (kA):
10kA
Rated Frequency (Hz):
50Hz/60Hz
Rated cross section:
1mm²
Standards:
IEC/EN 61009

Documents

Product

Net weight of the product
482  g
Customs tariff
85362010
logis_net_width
70  mm
logis_net_height
90  mm
logis_net_depth
73  mm

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895794820
Basic packaging weight
0.51  kg

Transport packaging

Transport packaging quantity
27
EAN code for a transport packaging
3838895794837
Transport packaging weight
14.27  kg
Pallet quantity
1404

Images & Diagrams

002174206 Flush mounted enclosure RCBO, KZS-4M 3p A B25/0.3 ASTI RCBO KZS-4M 3p 300mA Type A B Modular current and residual protective devices ASTI Residual and overcurrent protection RCBO and accessories KZS Residual and overcurrent protection RCBO KZS-4M 3P A B25/ Function RCBO Short circuit capacity 10kA Tripping characteristic B Rated current 25A Type A Rated residual current 0.3A Current type A Rated voltage 415V Number of poles 3 Catalogue Group KZS-4M 3p Residual current circuit breakers with Fault type signalisation No Rated Frequency 50Hz 60 HzHz Standards IEC EN 61009 Rated cross section 1-25 Terminals 1-25 Rated residual operating current IΔn 0.3A Rated conditional short-circuit current Inc 10kA RCBO KZS 25A B A 3 10kA
