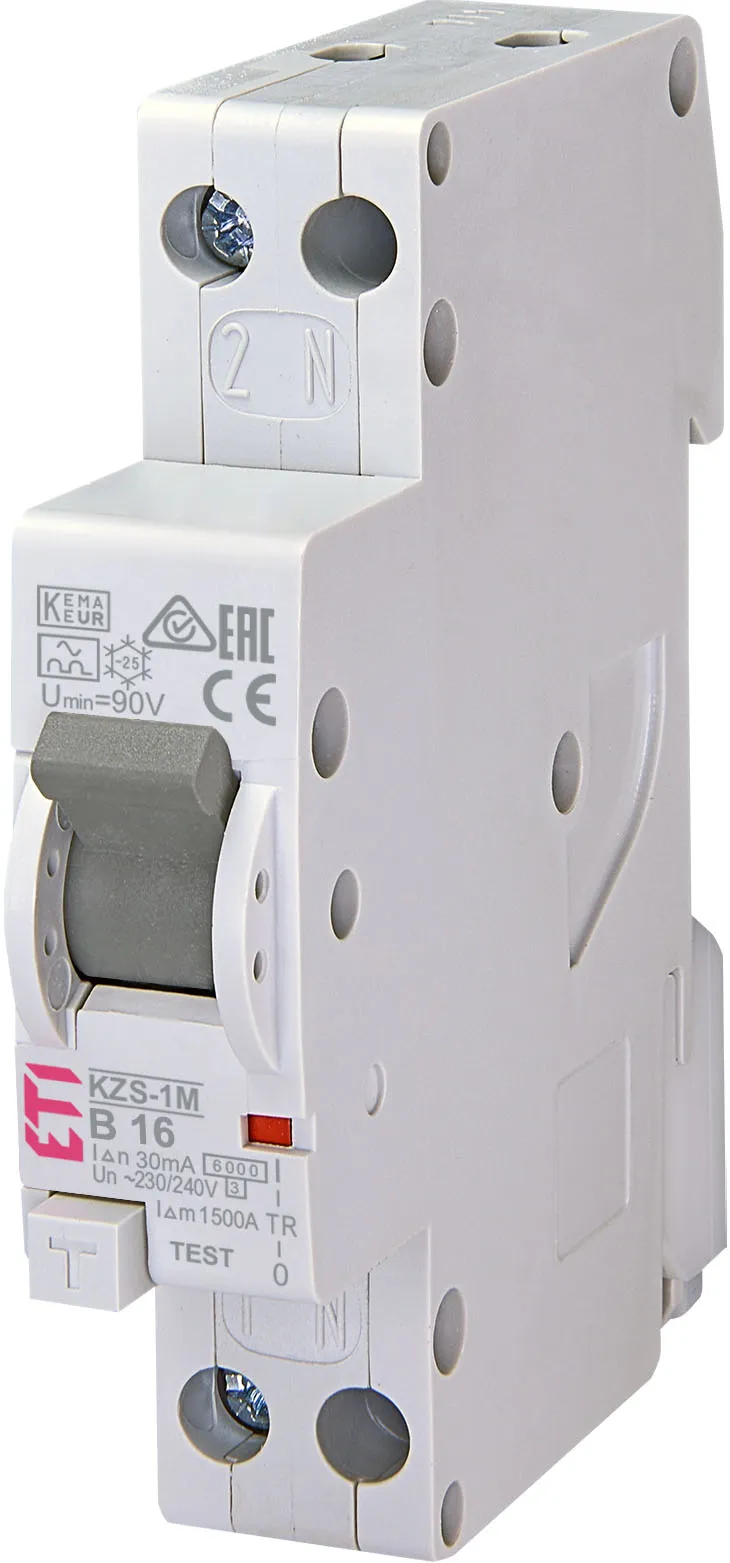

RCBO KZS-1M 1p+N A B16/0.03 6kA 002175204

Specifications

ETI Code:
002175204
Description:
KZS-1M 1p+N A B16/0.03 6kA
Class name:
RCBO
Rated current (A):
16
Rated residual operating current IΔn (A):
0.03
Tripping characteristic:
B
Type:
A
No. Of poles:
1+N
Short circuit capacity (kA):
6
Tripping time:
Instantaneous
Rated voltage (V):
230
Rated Frequency (Hz):
50 Hz
Terminals (mm2):
1-10
Standards:
IEC 61009

Documents

Product

EAN code for a single product

Net weight of the product
0.115  kg
Customs tariff
85362010
logis_net_width
18  mm
logis_net_height
88  mm
logis_net_depth
76  mm

Level 1 Packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895548669
Basic packaging weight
0.123  kg

Level 2 Packaging

Transport packaging quantity
72
EAN code for a transport packaging
3838895739869
Transport packaging weight
9.626  kg
Pallet quantity
3744
Classification
EC000905
Class name
Earth leakage circuit breaker
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230V
Rated current
16A
Rated fault current
0.03A
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 61009
6kA
Release characteristic
B
Concurrently switching neutral conductor
Yes
Width in number of modular spacings
1
Built-in depth
69mm
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1…10mm²
Connectable conductor cross section multi-wired
1…10mm²
ETIM Classification – Version 7.0
