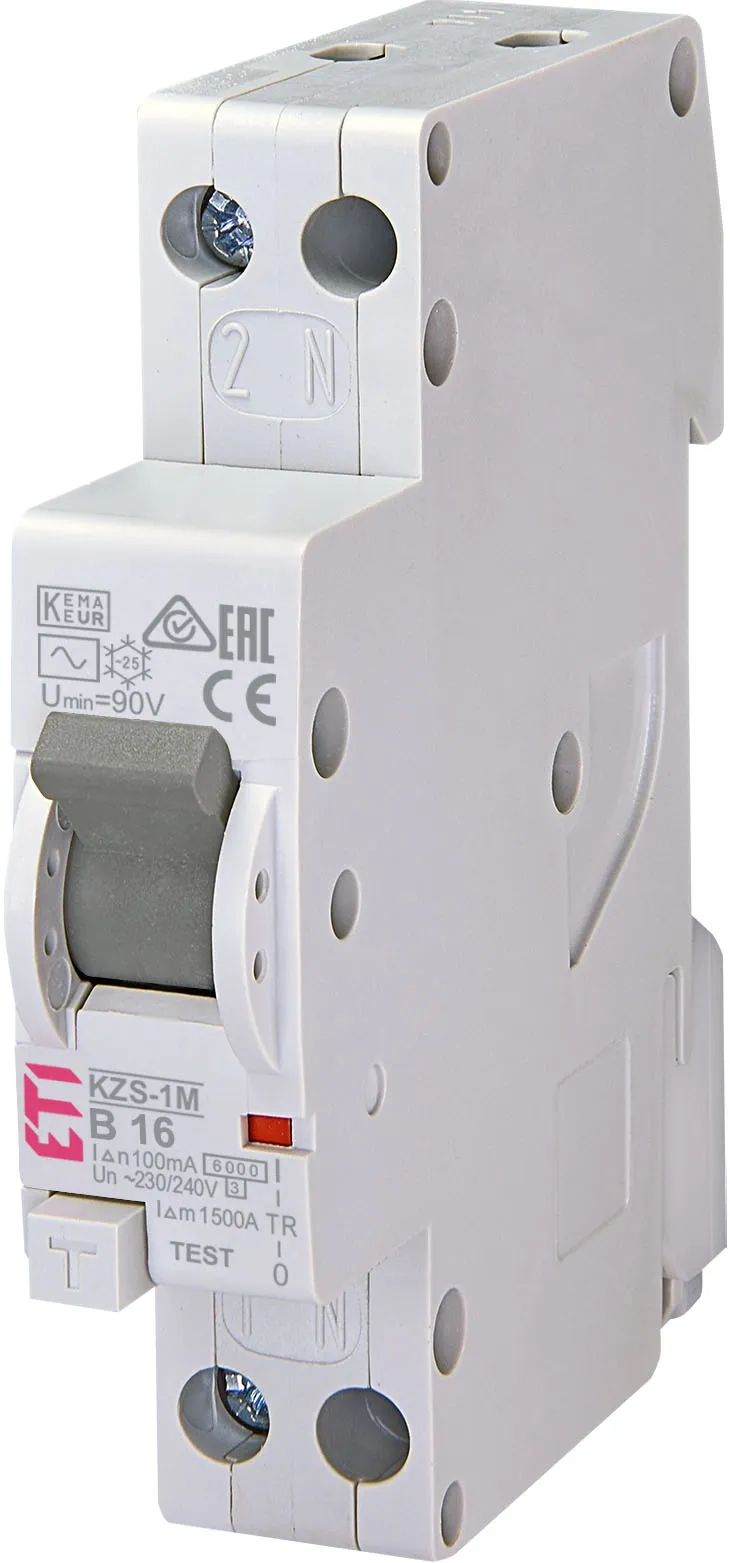

RCBO KZS-1M 1p+N AC B16/0.1 6kA 002175634 Obsolete
This product is obsolete and has been replaced with KZS-1M-UNI 1p+N AC B16/0.1.
Compare products
Specifications
- ETI Code:
- 002175634
- Description:
- *KZS-1M 1p+N AC B16/0.1 6kA
- Class name:
- RCBO
- Rated residual current (A):
- 1A
- Rated current (A):
- 16A
- Tripping characteristic:
- B
- Number of poles:
- 1+N
- Short circuit capacity (kA):
- 6kA
- Rated cross section:
- 1mm²
- Standards:
- IEC 61009
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895629368
- Net weight of the product
- 0.115 kg
- Customs tariff
- 85362010
- logis_net_width
- 18 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895629375
- Basic packaging weight
- 1.546 kg
Transport packaging
- Transport packaging quantity
- 72
- EAN code for a transport packaging
- 3838895740124
- Transport packaging weight
- 9.626 kg
- Pallet quantity
- 3744
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 230V
- Rated current
- 16A
- Rated fault current
- 0,1A
- Leakage current type
- AC
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6kA
- Frequency
- 50 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- Yes
- Width in number of modular spacings
- 1
- Built-in depth
- 69mm
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…10mm²
- Connectable conductor cross section multi-wired
- 1…10mm²
*KZS-1M 1p+N AC B16/0.1 6kA
