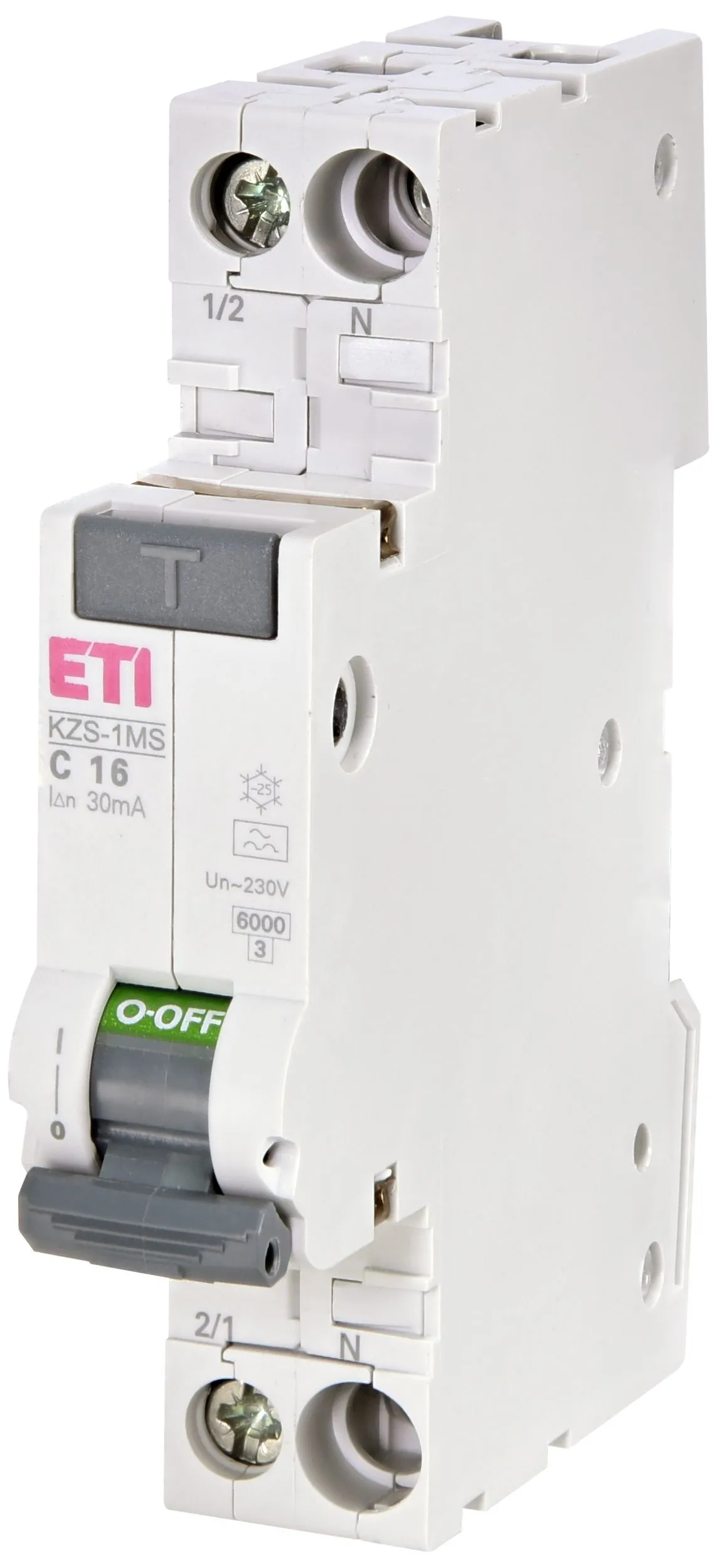

RCBO KZS-1MS 1p+N A C13/0.03 002176214
Specifications
- ETI Code:
- 002176214
- Description:
- KZS-1MS 1p+N A C13/0.03
- Class name:
- RCBO
- Rated residual current (A):
- 0.03
- Current type:
- AC
- Rated current (A):
- 13
- Tripping characteristic:
- C
- Type:
- A
- Number of poles:
- 1+N
- Short circuit capacity (kA):
- 6kA
- Tripping time:
- Instantaneous
- Rated voltage (V):
- 230
- Rated Frequency (Hz):
- 50/60 Hz
- Rated cross section:
- 1...10
- Standards:
- EN/IEC 61009
Documents
Logistic Data
Product
- Customs tariff
- 85362010
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838400143419
- Transport packaging weight
- 0.133 kg
- Pallet quantity
- 5200
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 230V
- Rated current
- 13A
- Rated fault current
- 0,03A
- Rated short-circuit breaking capacity according to EN 61009
- 6kA
- Disconnection characteristic
- Undelayed
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- Connectable conductor cross section solid-core
- 0,75-10mm²
- Connectable conductor cross section multi-wired
- 0,75-6mm²
KZS-1MS 1p+N A C13/0.03
