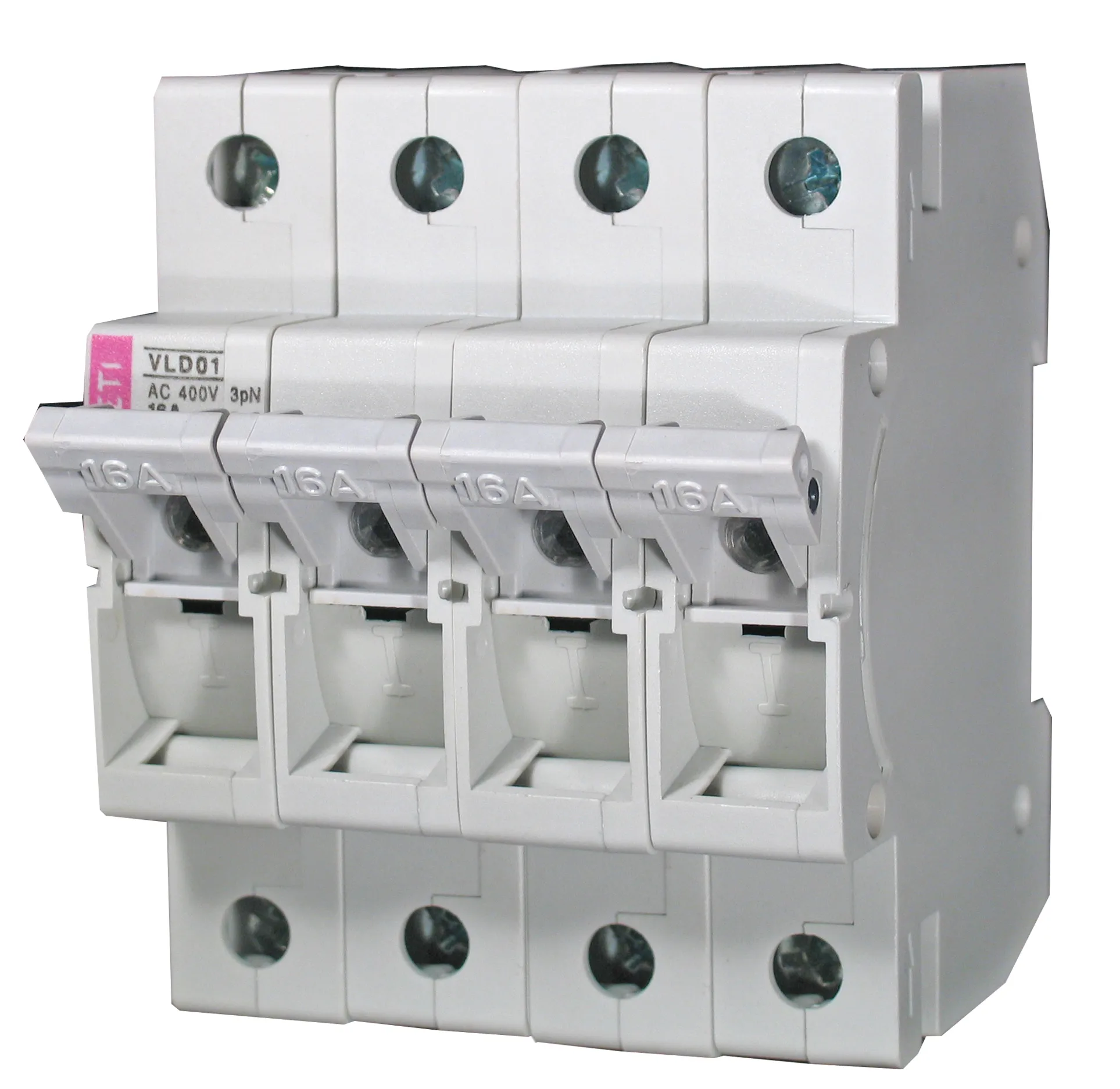

Fuse switch disconnector VL D01 16A 3p+N 002261023
Specifications
- ETI Code:
- 002261023
- Description:
- VL D01 16A 3p+N
- Class name:
- Fuse switch disconnector
- Mounting type:
- TH 35
- Product group:
- LV-fuse disconnector
- Utilization category:
- AC-22A
- Size:
- D01
- Number of poles:
- 3+N
- Rated current (A):
- 16A
- Rated AC voltage (V):
- 400V
- Rated DC voltage (V):
- 400V
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400030450
- Net weight of the product
- 0.342 kg
- Customs tariff
- 85389099
- logis_net_width
- 70 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 75 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895329602
- Basic packaging weight
- 0.99 kg
Transport packaging
- Transport packaging quantity
- 27
- EAN code for a transport packaging
- 3838895329619
- Transport packaging weight
- 9.23 kg
- Pallet quantity
- 1404
ETIM Clasification
- Classification
- EC000277
- Class name
- D0-system switch disconnector
- Number of poles
- 4
- Construction size
- D01
- Rated voltage
- 400V
- Rated current
- 16A
