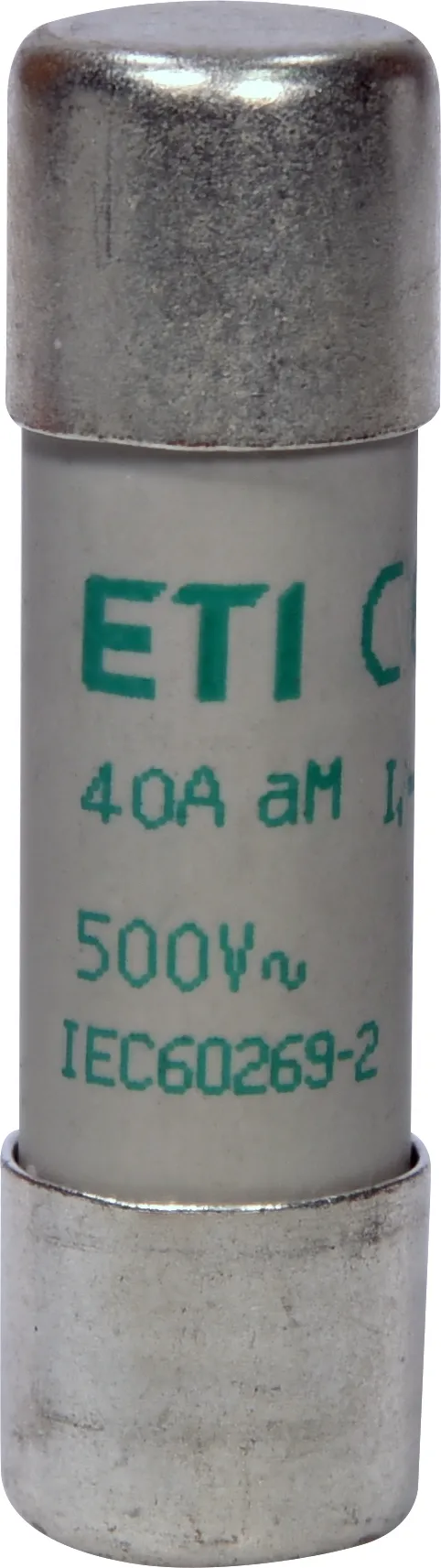

Fuse link CH14x51 aM 40A/500V 002652034
Specifications
- ETI Code:
- 002652034
- Description:
- CH14x51 aM 40A/500V
- Class name:
- Fuse link
- Type:
- CH
- Size:
- 14x51
- Rated current (A):
- 40
- Rated AC voltage (V):
- 500
- Characteristics:
- aM
- Breaking capacity AC (kA):
- 120
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Power dissipation (W):
- 2,65
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- Customs tariff
- 85361050
- logis_net_width
- 14 mm
- logis_net_height
- 51 mm
- logis_net_depth
- 14 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400096029
- Basic packaging weight
- 0.211 kg
Transport packaging
- Transport packaging quantity
- 700
- EAN code for a transport packaging
- 3838400096036
- Transport packaging weight
- 15.204 kg
- Pallet quantity
- 22400
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Voltage type
- AC
- Rated current
- 40A
- Rated voltage
- 500V
