Fuse link DIII gG 16A/690V 002313505
Specifications
- ETI Code:
- 002313505
- Description:
- DIII gG 16A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- D
- Size:
- DIII
- Rated current (A):
- 16A
- Rated AC voltage (V):
- 690V
- Rated DC voltage (V):
- 600V
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 50kA
- Breaking capacity DC (kA):
- 8kA
- Indicator:
- Top fuse status indicator
- Standards:
- DIN EN 60269-1,DIN EN 60269-3
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400029133
- Net weight of the product
- 0.072 kg
- Customs tariff
- 85361050

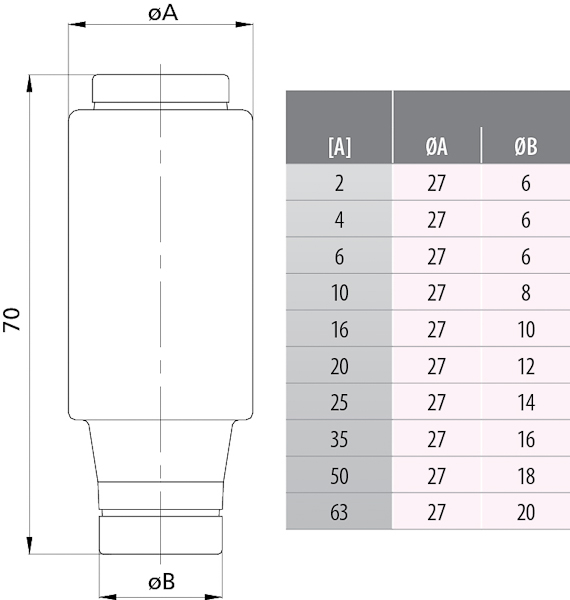

- logis_net_width
- 27 mm
- logis_net_height
- 27 mm
- logis_net_depth
- 70 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895421887
- Basic packaging weight
- 0.353 kg
Transport packaging
- Transport packaging quantity
- 200
- EAN code for a transport packaging
- 3838895421894
- Transport packaging weight
- 14.4 kg
- Pallet quantity
- 10400
ETIM Clasification
- Classification
- EC000099
- Class name
- D-system fuse link
- Construction size
- DIII
- Rated current
- 16A
- Rated voltage
- 690V
- Colour code
- Grey
- Utilization category
- gL/gG (cable protection/equipment protection)
- Release characteristic
- Time-lag (T)
