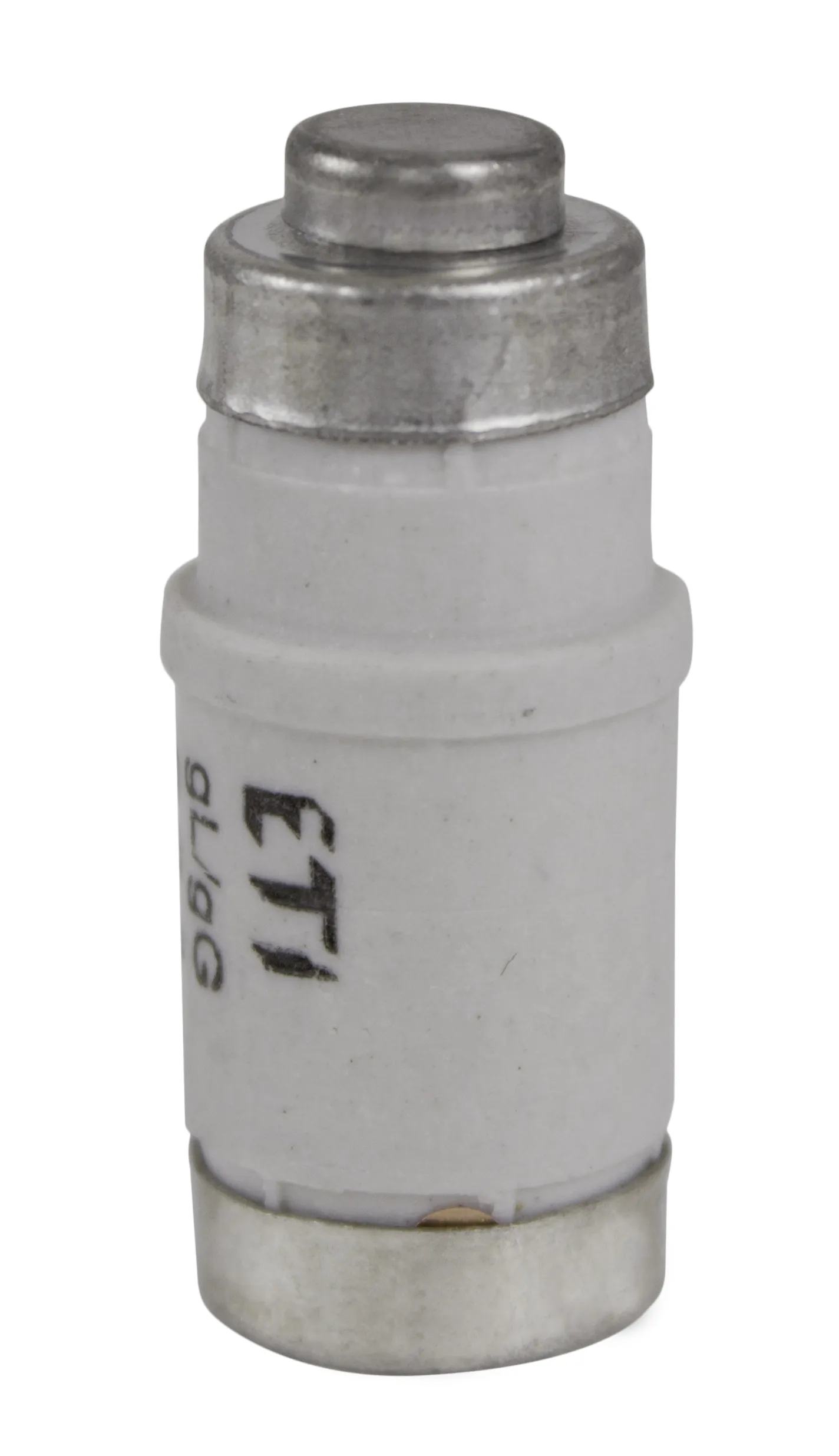

Fuse link D02 gG 25A/400V 002212002
Specifications
- ETI Code:
- 002212002
- Description:
- D02 gG 25A/400V
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 25A
- Size:
- D02
- Type:
- D0
- Rated AC voltage (V):
- 400V
- Rated DC voltage (V):
- 250V
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 50kA
- Breaking capacity DC (kA):
- 8kA
- Application:
- For cable protection
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 2.8W
- Operating joule integral (A2s):
- 3170
- Prearcing joule integral (A2s):
- 1210
- Standards:
- DIN EN 60269-1,DIN EN 60269-3
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895905684
- Net weight of the product
- 12 g
- Customs tariff
- 85361050
- logis_net_width
- 16 mm
- logis_net_height
- 36 mm
- logis_net_depth
- 16 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895000549
- Basic packaging weight
- 0.12 kg
Transport packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895162506
- Transport packaging weight
- 6.6 kg
- Pallet quantity
- 60000
ETIM Clasification
- Classification
- EC001642
- Class name
- D0-system fuse link
- Construction size
- D02
- Rated current
- 25A
- Rated voltage
- 400V
- Colour code
- Yellow
Characteristic
Images & Diagrams
Tags
Accessories 30
>
>
0
D02 gG 25A/400V
