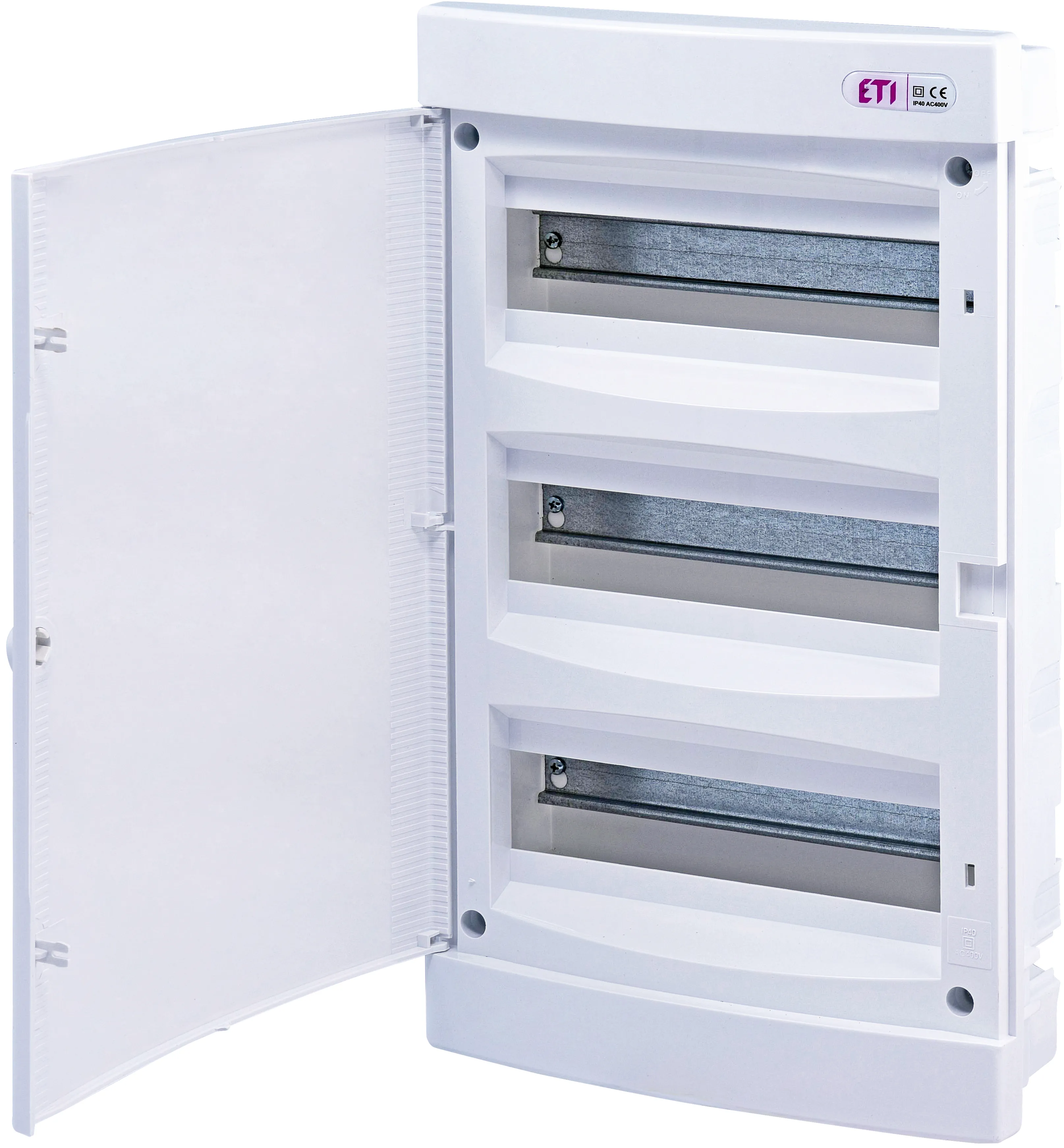

Distribution box ECM36PO 001101017
Specifications
- ETI Code:
- 001101017
- Description:
- ECM36PO
- Class name:
- Distribution box
- Mounting type:
- Flush mounted
- Rated current (A):
- 63A
- IP rating:
- IP40
- Number of modules (Total/per row):
- 36/12
- Frame size (Number of rows):
- 3
- Door (material, color):
- Plastic, white
- Enclosure base (material, color):
- Plastic, white
- Number of PE/N terminals (connections):
- 15
- Glow wire test (°C):
- 650°C
Documents
Logistic Data
Product
- Net weight of the product
- 1.95 kg
- Customs tariff
- 85381000
- logis_net_width
- 284 mm
- logis_net_height
- 482 mm
- logis_net_depth
- 106 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895456889
- Basic packaging weight
- 1.785 kg
Transport packaging
- Transport packaging quantity
- 5
- EAN code for a transport packaging
- 3838895456896
- Transport packaging weight
- 9.75 kg
- Pallet quantity
- 110

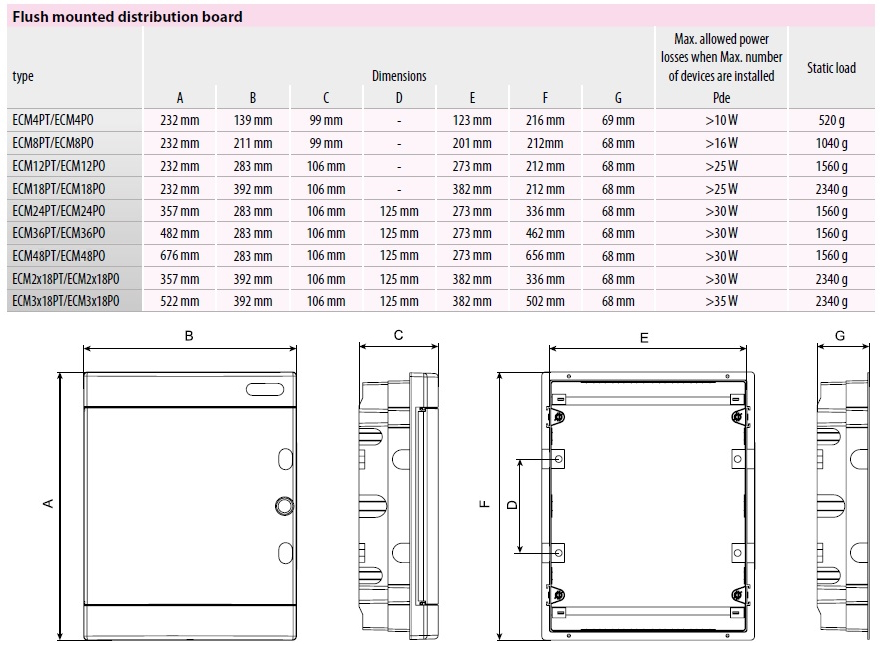

Images & Diagrams
Tags
Accessories 12
>
>
0
ECM36PO
