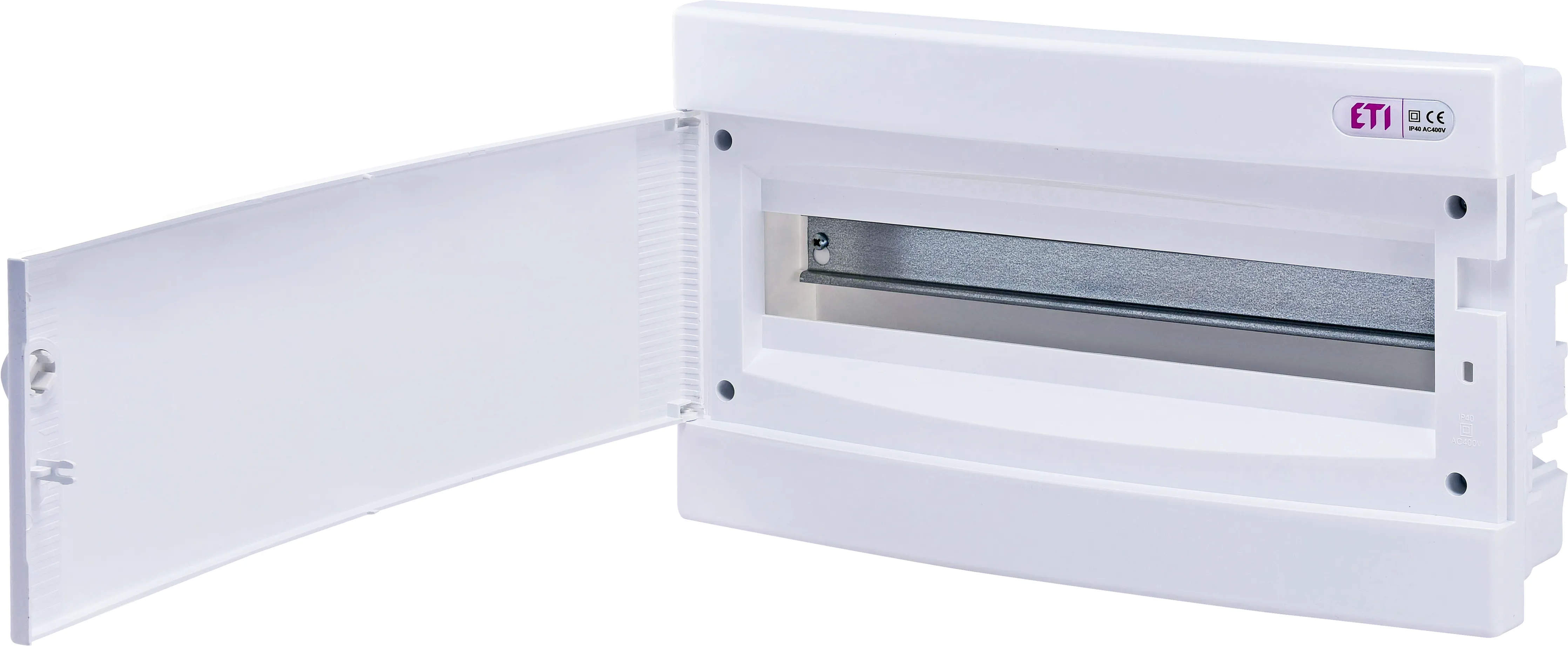

Distribution box ECM18PO 001101019
Specifications
- ETI Code:
- 001101019
- Description:
- ECM18PO
- Class name:
- Distribution box
- Mounting type:
- Flush mounted
- Rated current (A):
- 63A
- IP rating:
- IP40
- Number of modules (Total/per row):
- 18
- Frame size (Number of rows):
- 1
- Door (material, color):
- Plastic, white
- Enclosure base (material, color):
- Plastic, white
- Number of PE/N terminals (connections):
- 13
- Glow wire test (°C):
- 650°C
Documents
Logistic Data
Product
- Net weight of the product
- 1.2 kg
- Customs tariff
- 85381000
- logis_net_width
- 392 mm
- logis_net_height
- 232 mm
- logis_net_depth
- 106 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895499633
- Basic packaging weight
- 1.2 kg
Transport packaging
- Transport packaging quantity
- 5
- EAN code for a transport packaging
- 3838895499640
- Transport packaging weight
- 6 kg
- Pallet quantity
- 165

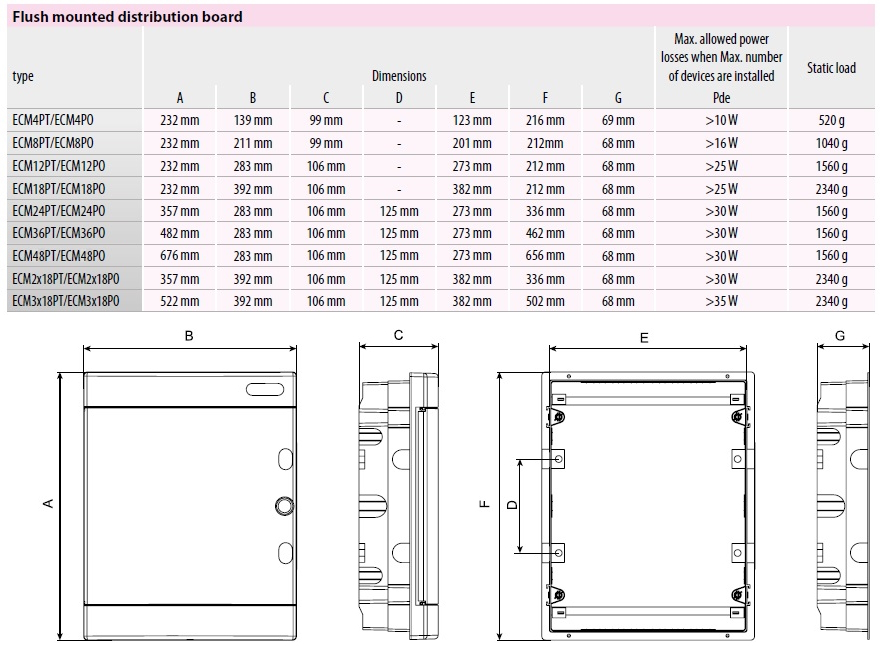

Images & Diagrams
