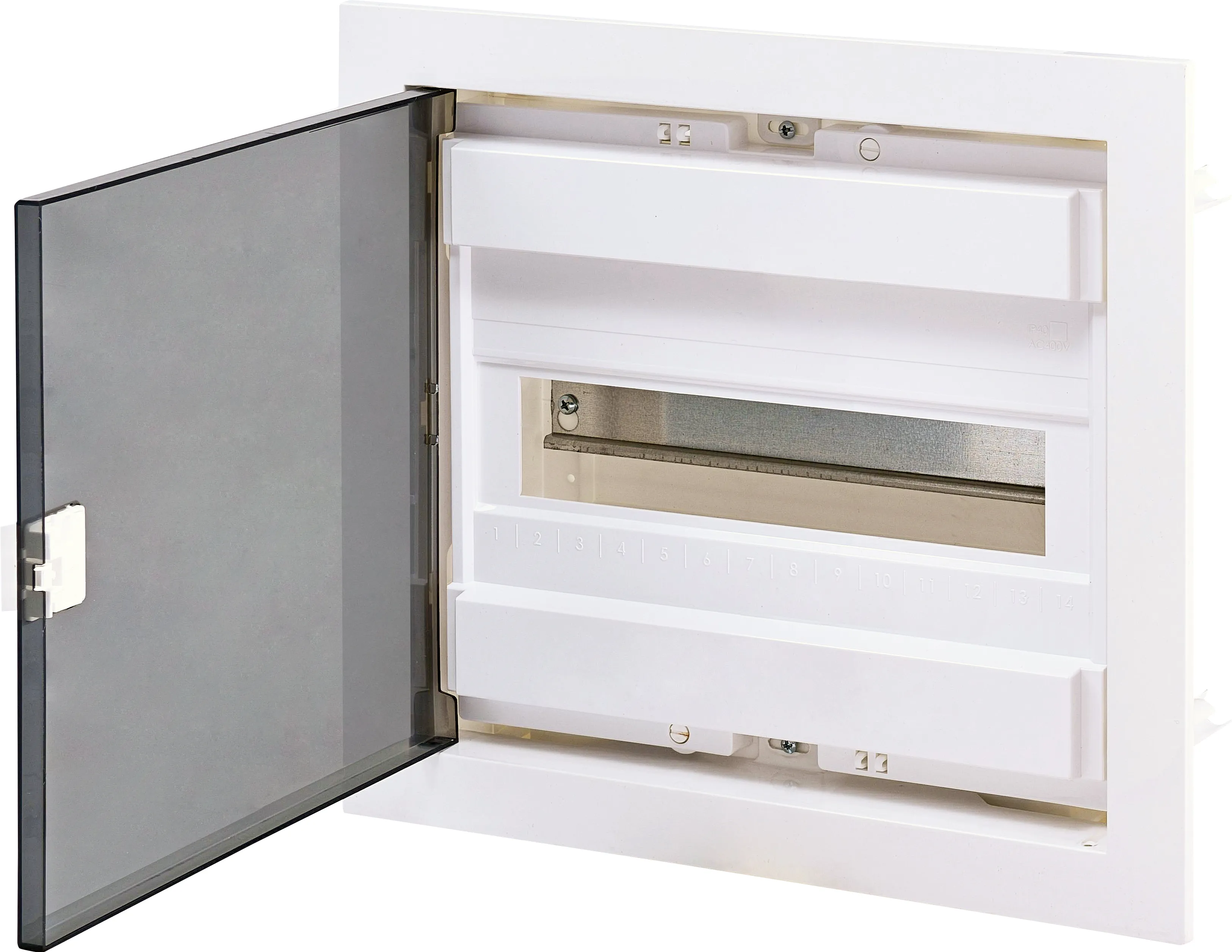

Distribution box ECG14PT 001101180
Specifications
- ETI Code:
- 001101180
- Description:
- ECG14PT
- Class name:
- Distribution box
- Protection Class:
- II
- Mounting type:
- Flush mounted
- Rated current (A):
- 63A
- IP rating:
- IP40
- Number of modules (Total/per row):
- 14
- Frame size (Number of rows):
- 1
- Door (material, color):
- Plastic, transparent
- Enclosure base (material, color):
- Plastic, white
- Glow wire test (°C):
- 650°C
Documents
Logistic Data
Product
- Net weight of the product
- 1.9 kg
- Customs tariff
- 85381000
- logis_net_width
- 427 mm
- logis_net_height
- 317 mm
- logis_net_depth
- 97 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895838975
- Transport packaging weight
- 1.6 kg
- Pallet quantity
- 108
ETIM Clasification
- Classification
- EC000214
- Class name
- Small distribution board
- Mounting method
- Flush-mounted (plaster)
- Number of rows
- 1
- Width in number of modular spacings
- 14
- Housing material
- Plastic
- Height
- 317mm
- Width
- 346mm
- Depth
- 96mm
- Built-in depth
- 88mm
- DIN-rail
- Yes
- With mounting plate
- No
- EMC-version
- Yes
- Colour
- White
- Degree of protection (IP)
- IP40
