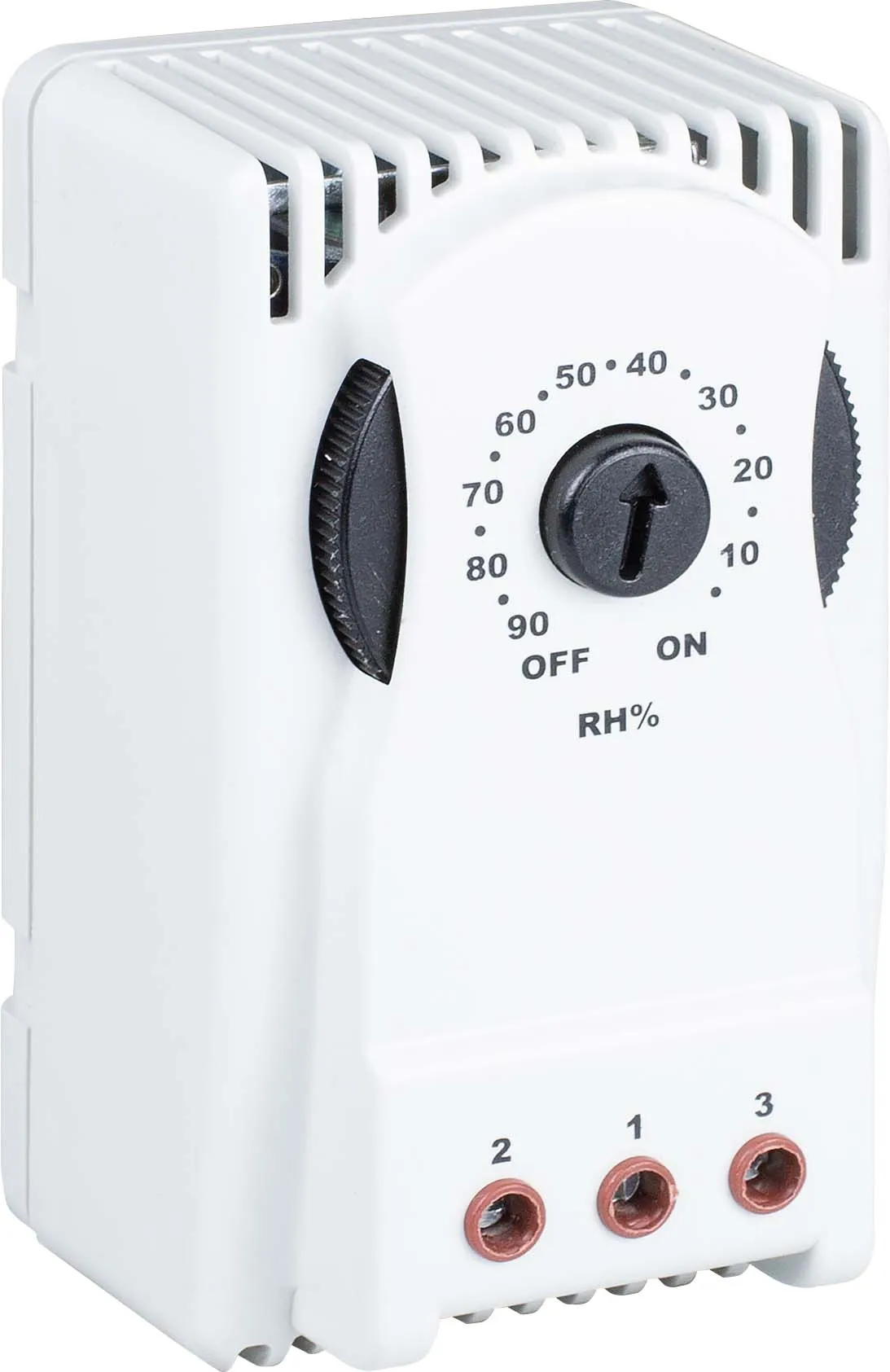

Hygrostat EF-HGR 001344003
Specifications
- ETI Code:
- 001344003
- Description:
- EF-HGR
- Class name:
- Hygrostat
- Number of CO contacts:
- 1
- Mounting type:
- TH 35
- Rated voltage (V):
- 120-240V AC
- Rated current (A):
- 5
- Setting range (%RH):
- 10 - 90
- Accuracy (%RH):
- ±5
- Rated hysteresis (%RH):
- 5
- IP rating:
- IP20
- Connection type:
- Terminal block
- Clamping range (mm²):
- 1 - 4
- Color:
- RAL 7035
- Body material:
- PC/ABS UL94 V-0
- Width (mm):
- 54,0
- Height (mm):
- 93.5
- Depth (mm):
- 52,0
- Working temperature (°C):
- 10 ÷ 40
- Storage temperature (°C):
- -20 ÷ 50
- Approvals:
- CE
Documents
Logistic Data
Product
- Customs tariff
- 90321080
- logis_net_width
- 54 mm
- logis_net_height
- 94 mm
- logis_net_depth
- 48 mm
Transport packaging
- Transport packaging quantity
- 9
- EAN code for a transport packaging
- 3838400103550
- Transport packaging weight
- 1.9 kg
- Pallet quantity
- 1818
EF-HGR
