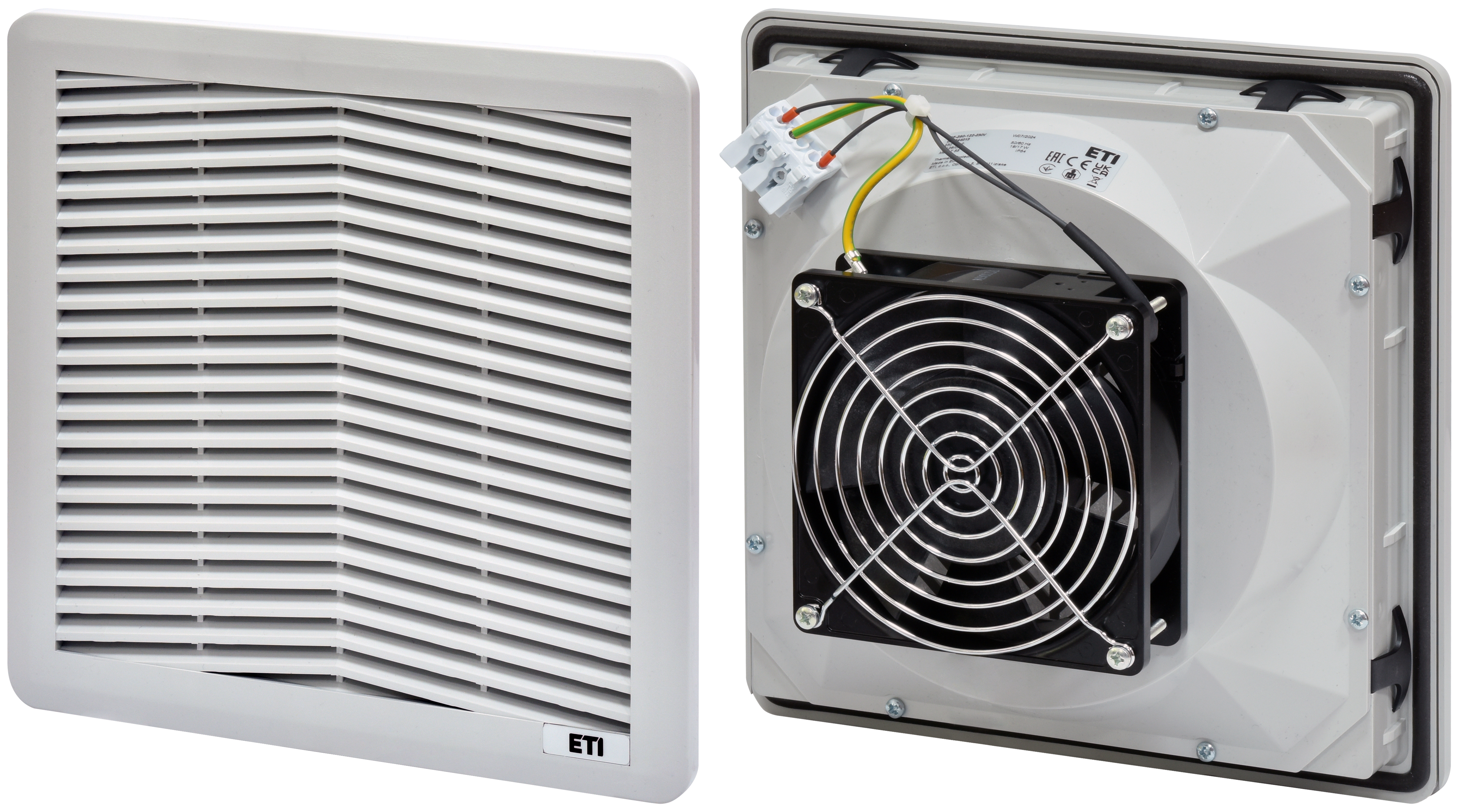

Filterfan EF-250-122-230V 001344013
Specifications
- ETI Code:
- 001344013
- Description:
- EF-250-122-230V
- Class name:
- Filterfan
- Rated voltage (V):
- 230
- Rated current (A):
- 0,126
- Rated power (kW):
- 0,019
- Max airflow (m³/h):
- 122
- Airflow with exhaust filter (m³/h):
- 108
- Max static pressure (Pa):
- 79
- Filter class:
- G3
- Fan noise (dB):
- 40
- IP rating:
- IP54
- Connection type:
- Terminal block
- Color:
- RAL 7035
- Width (mm):
- 250
- Height (mm):
- 250
- Depth (mm):
- 112
- Working temperature (°C):
- -10÷ 55
- Storage temperature (°C):
- -40 ÷ 70
- Mounting cut-out (mm):
- 223 x 223
- Mounting wall thickness (mm):
- 1,3 - 3,7
- Approvals:
- CE
Documents
Logistic Data
Product
- Customs tariff
- 84213925
- logis_net_width
- 250 mm
- logis_net_height
- 250 mm
- logis_net_depth
- 112 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400103642
- Basic packaging weight
- 1.55 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838400103659
- Transport packaging weight
- 16.3 kg
- Pallet quantity
- 90
EF-250-122-230V
