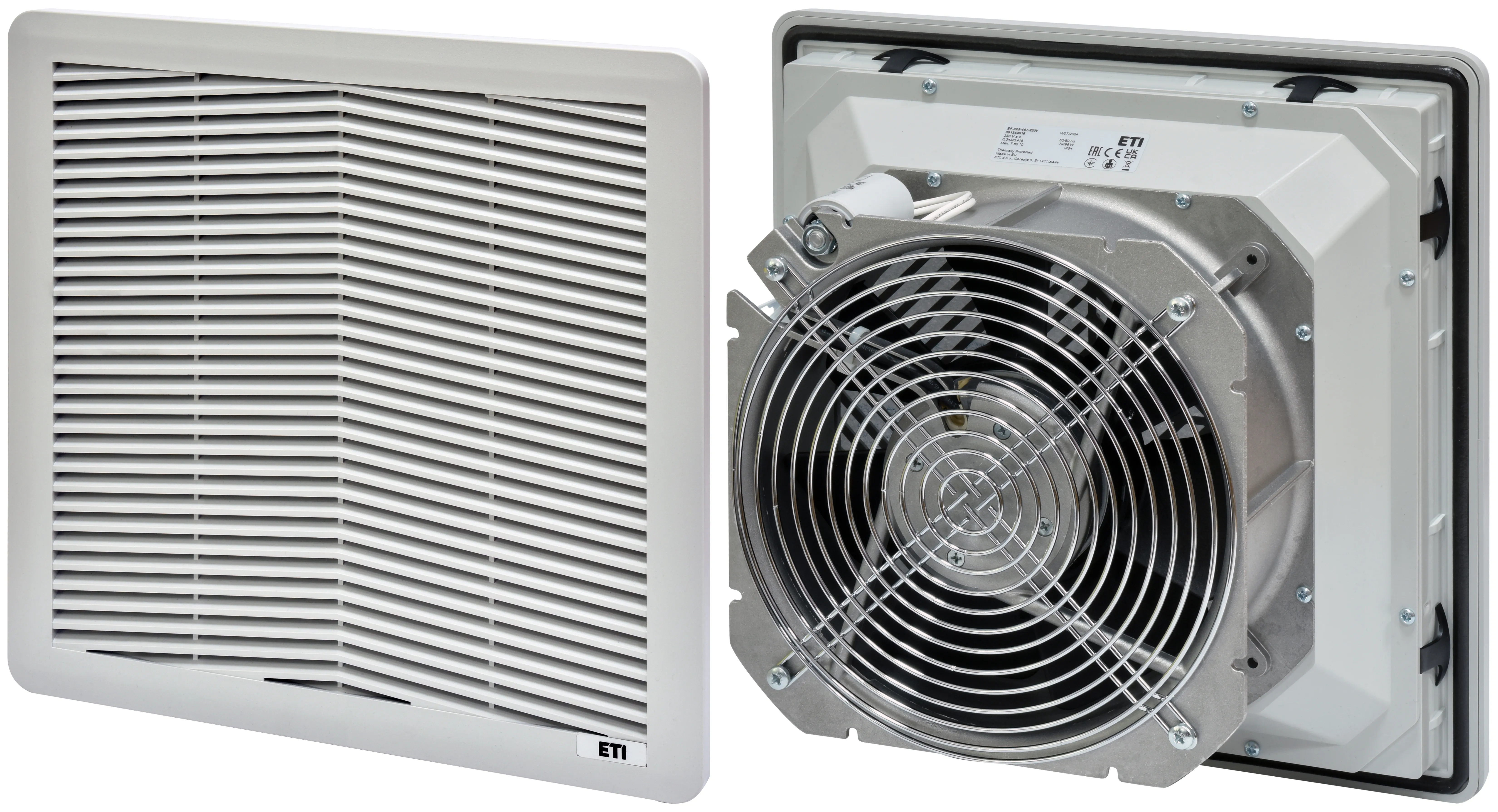

Filterfan EF-325-457-230V 001344016
Specifications
- ETI Code:
- 001344016
- Description:
- EF-325-457-230V
- Class name:
- Filterfan
- Rated AC voltage (V):
- 230V
- Rated DC voltage (V):
- 230V
- Rated current (A):
- 0.343A
- Rated power (kW):
- 0.079kW
- Max airflow (m³/h):
- 457m³/h
- Airflow with exhaust filter (m³/h):
- 325m³/h
- Max static pressure (Pa):
- 136Pa
- Filter class:
- G3
- Fan noise (dB):
- 60dB
- IP rating:
- IP54
- Connection type:
- Terminal block
- Color:
- RAL 7035
- Width (mm):
- 325mm
- Height (mm):
- 325mm
- Depth (mm):
- 160.5mm
- Working temperature (°C):
- -25°C-60°C
- Mounting cut-out (mm):
- 291mm
- Mounting wall thickness (mm):
- 1.3mm-3.7mm
- Approvals:
- CE
Documents
Logistic Data
Product
- Net weight of the product
- 3.65 kg
- Customs tariff
- 84213925
- logis_net_width
- 325 mm
- logis_net_height
- 325 mm
- logis_net_depth
- 160 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400103727
- Basic packaging weight
- 3.65 kg
Transport packaging
- Transport packaging quantity
- 4
- EAN code for a transport packaging
- 3838400103734
- Transport packaging weight
- 15.35 kg
- Pallet quantity
- 40
