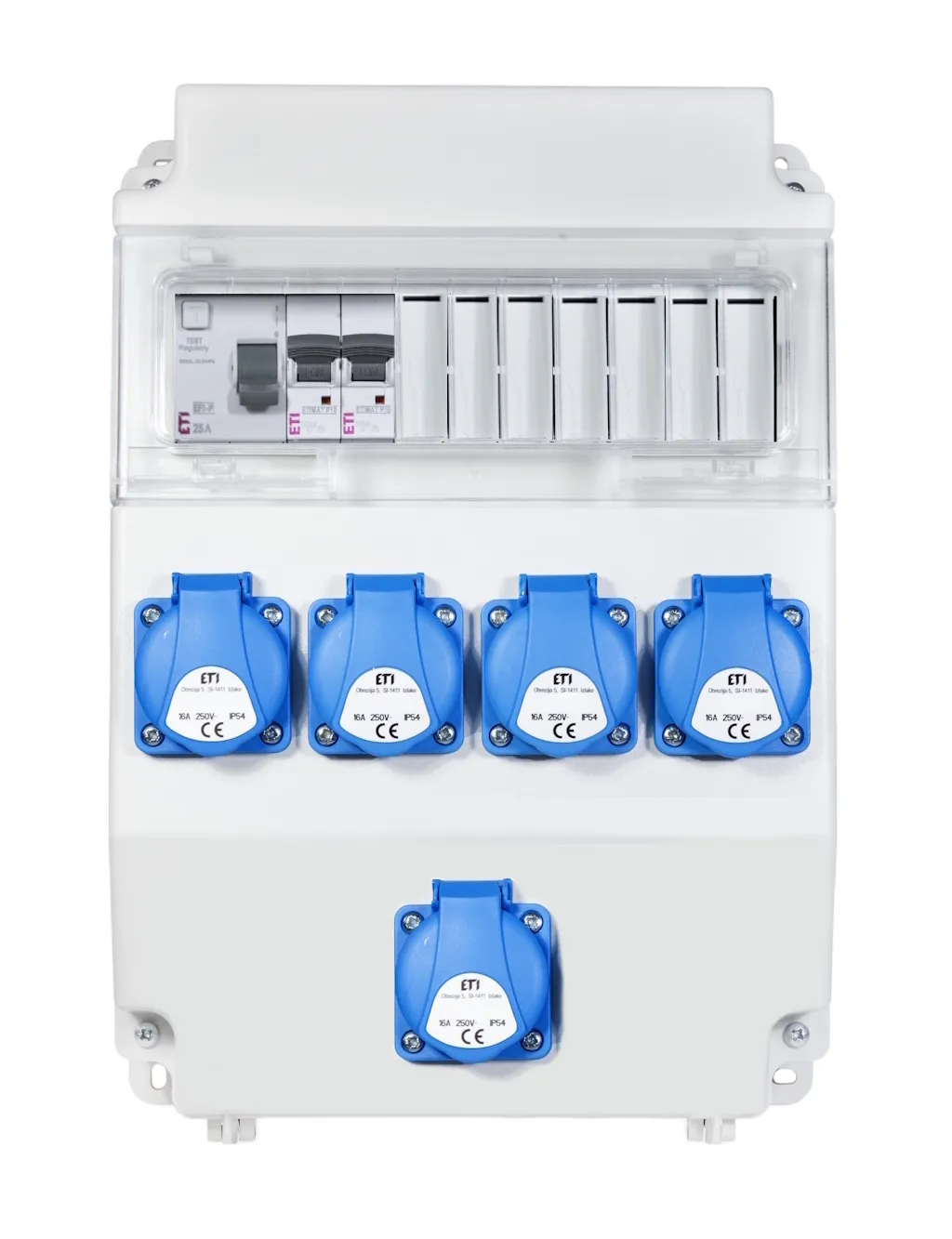

Assemblied distribution box EDS11 RCD 5 C 001105251
Specifications
- ETI Code:
- 001105251
- Description:
- EDS11 RCD 5 C
- Class name:
- Assemblied distribution box
- Rated current (A):
- 16
- Rated voltage (V):
- 250
- Type: socket/plug:
- 5xGROUND PIN
- Number of modules:
- 11
- IP rating:
- IP54
- MCBs_applied_EDS:
- 2xC16/1
- Additional devices:
- with RCD
Documents
Logistic Data
Product
- Customs tariff
- 85371098
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838400122780
- Transport packaging weight
- 2.8 kg
- Pallet quantity
- 71
ETIM Clasification
- Classification
- EC000379
- Class name
- CEE socket outlet combination
- CEE socket outlet 16 A
- None
- CEE socket outlet 32 A
- None
- CEE socket outlet 63 A
- None
- CEE socket outlet 125 A
- None
- Protection
- Overcurrent switch
- Earth leakage switch
- Earth leakage switch with IFN 30 mA (standard)
- Number of miniature circuit breakers (MCB)
- 2
- Housing material
- Plastic
- Power supply/connection possibility
- 1 cable (branch line)
- Type of mains connection
- M32
- Handling
- Wall mounting
- Degree of protection (IP)
- IP54
- Colour
- Grey

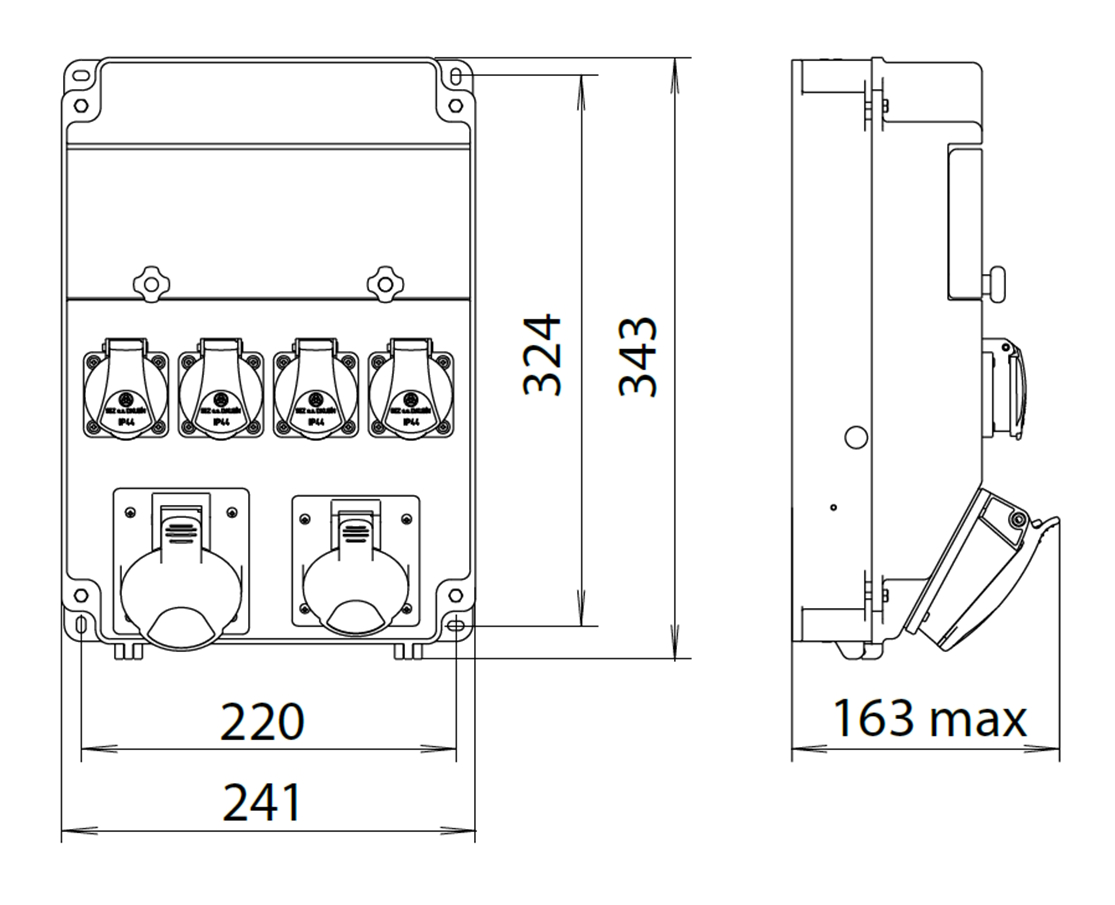

- Height
- 343mm
- Width
- 241mm
- Depth
- 163mm
EDS11 RCD 5 C
