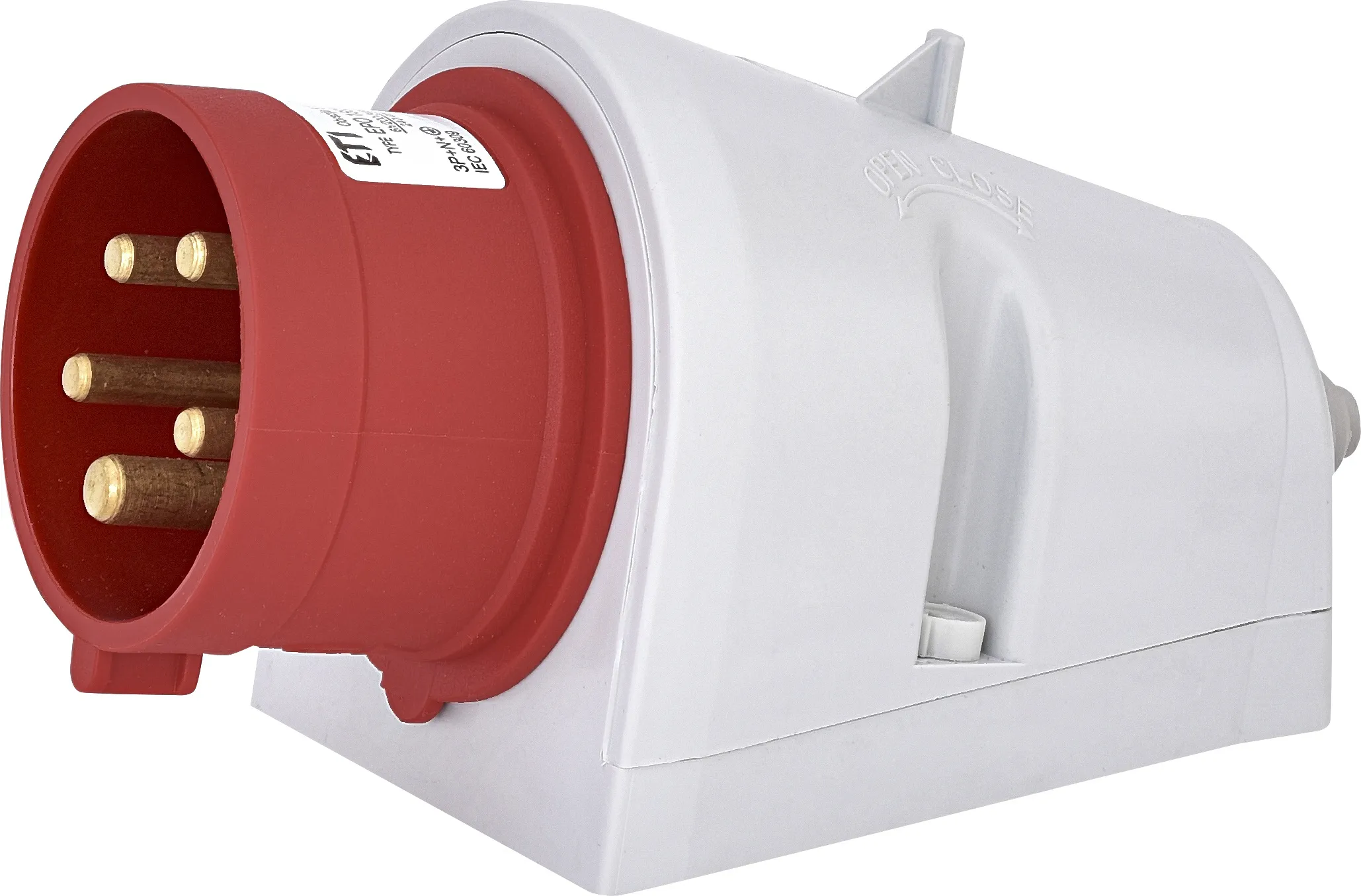

CEE Plug EPO 3253 004482065
Specifications
- ETI Code:
- 004482065
- Description:
- EPO 3253
- Class name:
- CEE Plug
- Rated current (A):
- 32A
- Number of poles:
- 3+N+PE
- IP rating:
- IP44
- Type: socket/plug:
- Wall plug reversing
Documents
Logistic Data
Product
- Net weight of the product
- 0.291 kg
- Customs tariff
- 85366990
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895674436
- Basic packaging weight
- 0.29 kg
Transport packaging
- Transport packaging quantity
- 6
- EAN code for a transport packaging
- 3838895674443
- Transport packaging weight
- 1.74 kg
- Pallet quantity
- 630
ETIM Clasification
- Classification
- EC001319
- Class name
- CEE plug for mounting on machines and equipment
- IEC-amperage
- 32A
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Number of poles
- 3
- Clock hour position
- 6h
- Identification colour
- Red
- Degree of protection (IP)
- IP44
- Connection system
- Screwed terminal
- Construction type
- Built-up device plug
- Insert direction
- Straight
- Material
- Plastic

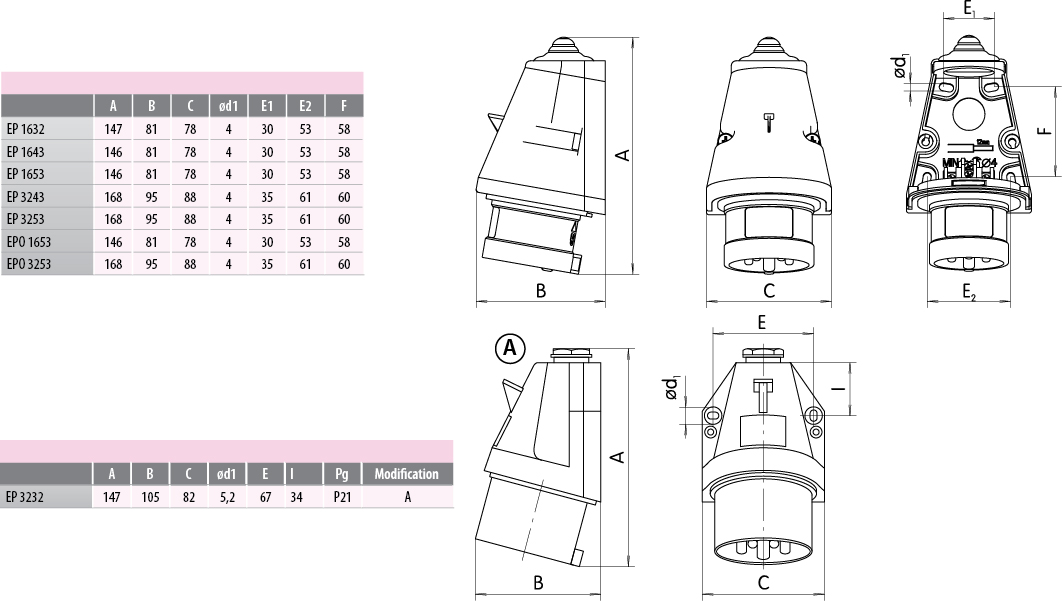

Images & Diagrams
Tags
Accessories 10
>
>
0
EPO 3253
