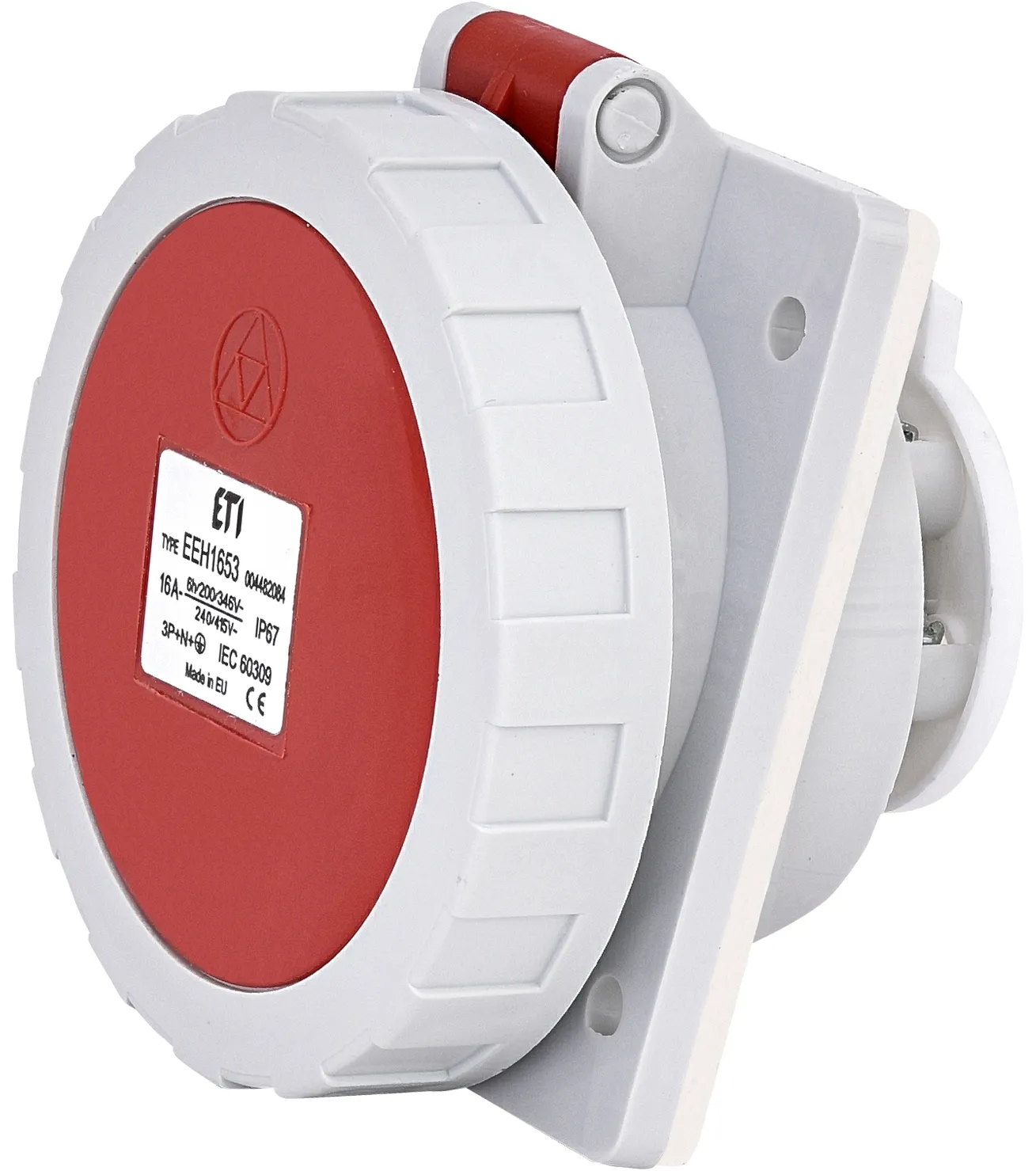

CEE Socket EEH 1653 004482084

Specifications

ETI Code:
004482084
Description:
EEH 1653
Class name:
CEE Socket
Type: socket/plug:
Built-in wall socket
Number of poles:
3+N+PE
IP rating:
IP67

Documents

Product

Net weight of the product
0.176  kg
Customs tariff
85366990

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895674818
Basic packaging weight
0.18  kg

Transport packaging

Transport packaging quantity
12
EAN code for a transport packaging
3838895674825
Transport packaging weight
2.16  kg
Pallet quantity
1260
Classification
EC001317
Class name
Panel-mounted CEE socket outlet
IEC-amperage
16A
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Number of poles
3
Clock hour position
6h
Identification colour
Red
Degree of protection (IP)
IP67
Connection system
Screwed terminal
Insert direction
Straight
Material
Plastic
ETIM Classification – Version 7.0

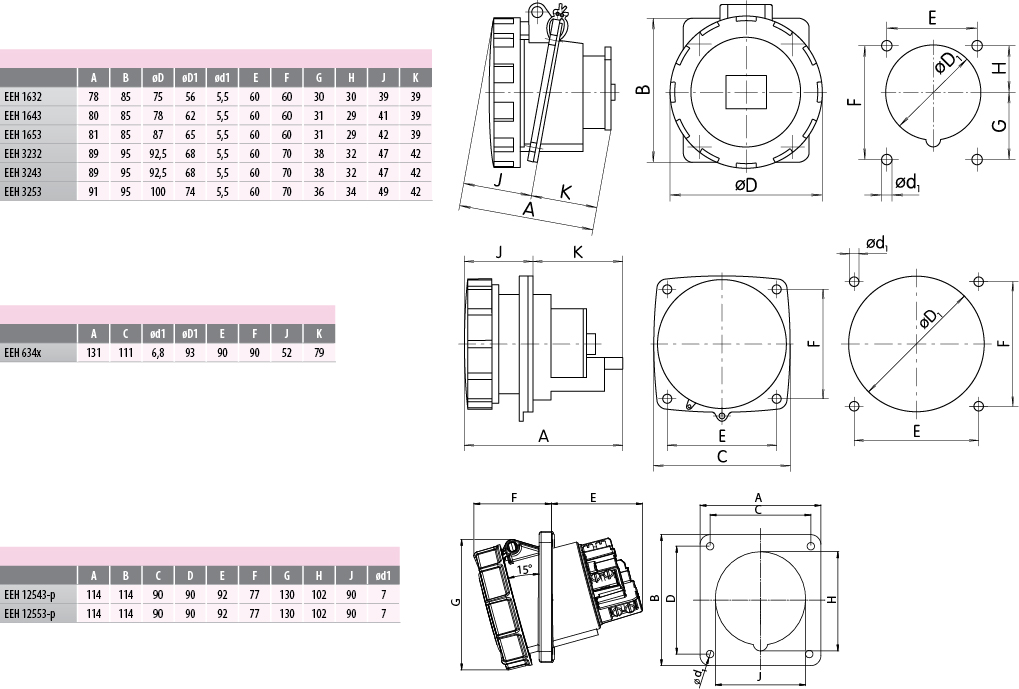

Images & Diagrams

004482084 Flush mounted enclosure CEE Socket, EEH 1653 ETICEE Industrial plug-in equipment IP67 series IP67 series Built-in sockets IP67 Built-in sockets IP67 Industrial plugs, sockets and industrial distribution boxes ETICEE IP67-serie Function Built-in socket IP67 Rated current 16A Rated voltage 400V Number of poles 3+N+PE IP rating IP67 Type: socket/plug Built-in wall socket Catalogue Group Sockets IP67 CEE Socket EEH 400V Built-in wall socket 3+N+PE IP67
