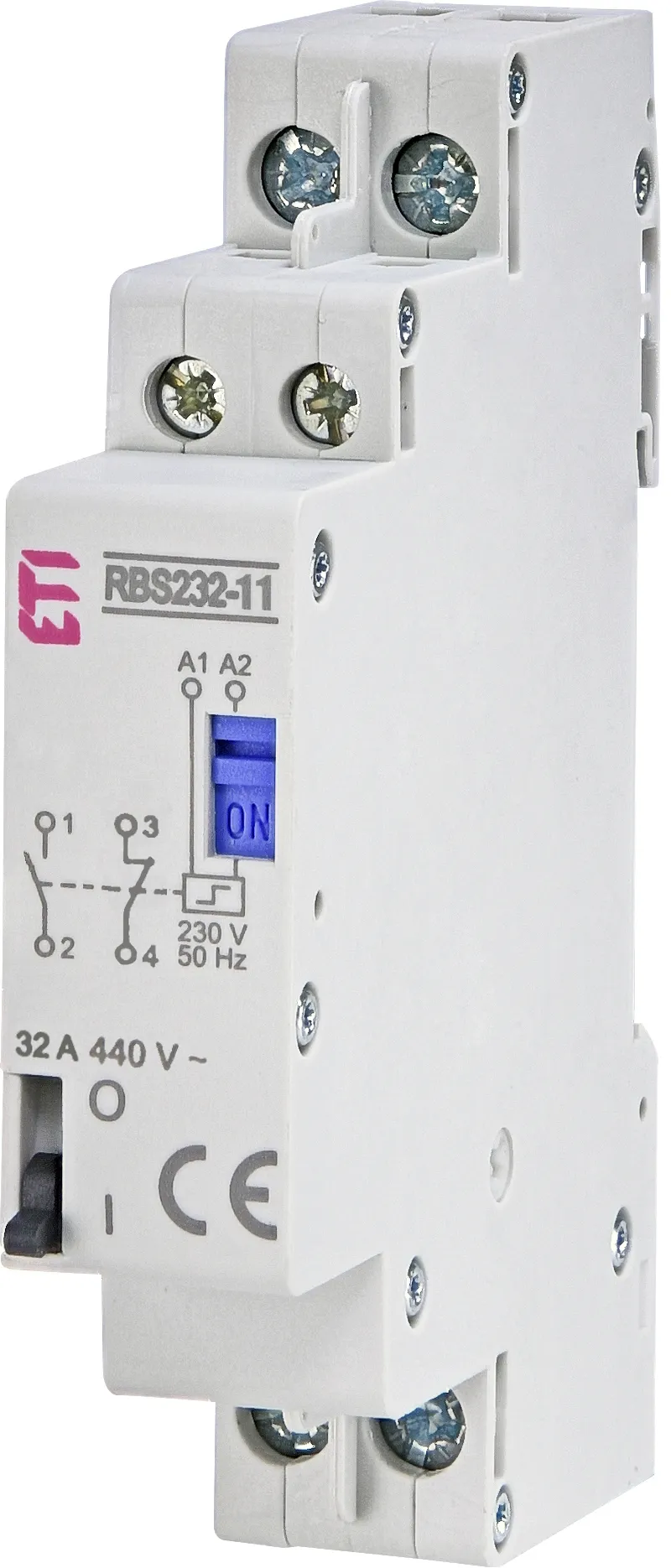

Switch RBS232-11-230V AC 002464108

Specifications Add to my products Add to comparison Remove from comparison

ETI Code:

002464108

Description:

RBS232-11-230V AC

Class name:

Switch

Max. number of impulses per minute:

32

Storage temperature (°C):

-30°C-80°C

Max. back-up fuse for short circuit protection:

32A

Min. impulse duration between two impulses (ms):

150ms

Max. impulse duration at Uc:

1h

Min. impulse duration at Uc (ms):

50ms

Distance between contacts and coil (mm):

6mm

Min. distance of open contacts (mm):

3mm

Max. shock resistance (g):

15g

Resistance to humidity:

95% RH

Function:

Bistable Switch RBS

Supply voltage (V):

230V

Rated operation current Ie at AC1 (A):

32A

Voltage type:

AC

Number of NO contacts:

1

Number of NC contacts:

1

Rated Frequency (Hz):

50Hz/60Hz

Rated current (A):

32A

Number of poles:

2

Terminal screw:

M4 (main circuit)/M3 (control circuit)

Rated cross section:

110mm²

Tightening torque (Nm):

1.2Nm

IP rating:

IP20

Ambient temperature (°C):

-25°C/55°C

Mounting type:

TH 35

Rated operational voltage AC (V):

440V

Rated insulation voltage (V):

440V

Thermal current Ith (A):

32A

Number of modules:

1

Width (mm):

17.5mm

Power dissipation (W):

6W

Mechanical cycles:

100000

Electrical cycles:

10000

Standards:

IEC/EN 60669-2-2
