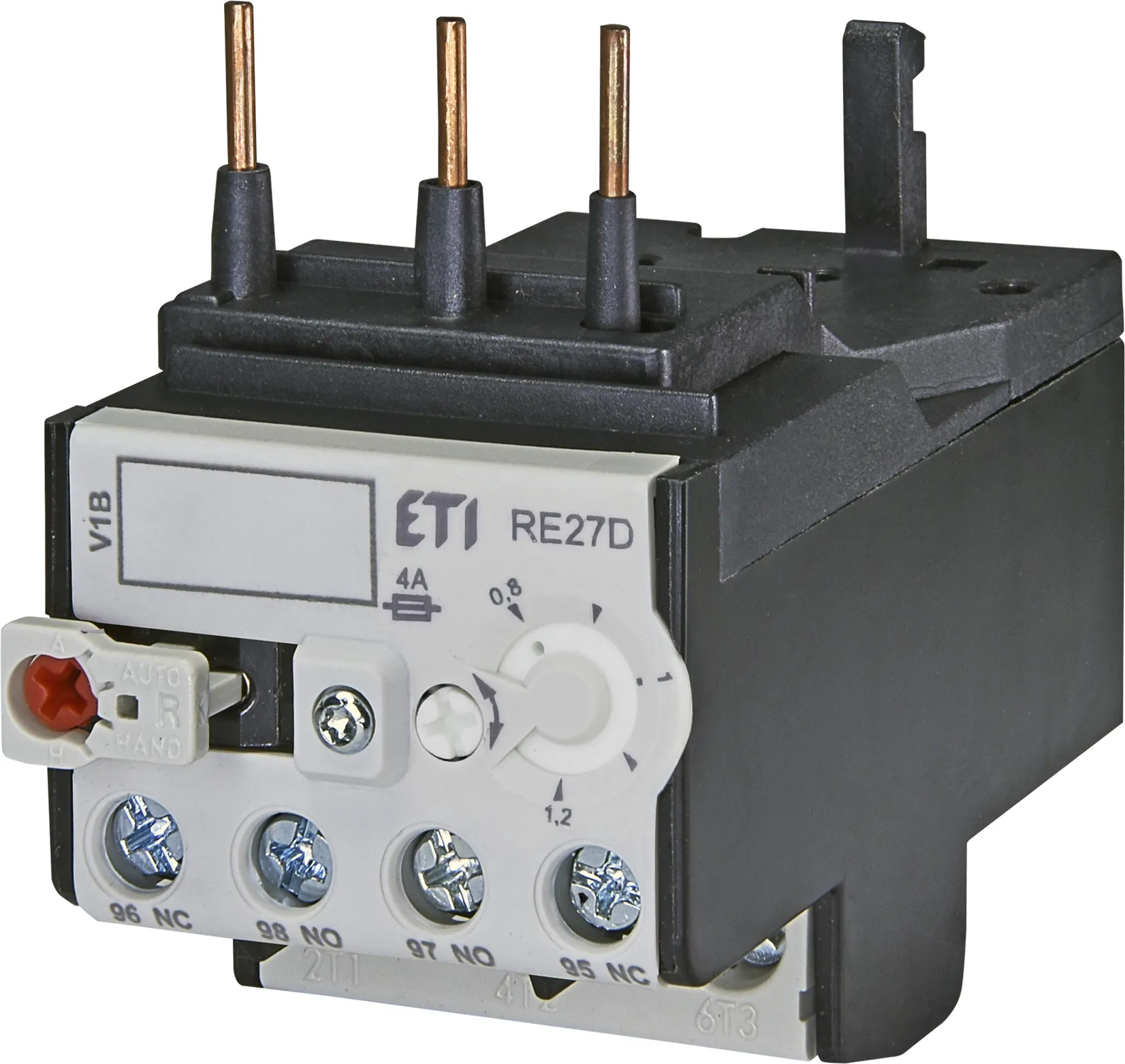

Thermal overload relay RE27D-1,2 004642403
Specifications
- ETI Code:
- 004642403
- Description:
- RE27D-1,2
- Class name:
- Thermal overload relay
- Function:
- Overload relay
- Function accessories:
- Overload relay
- Current setting range (A):
- 0.8A/1.2A
Documents
Logistic Data
Product
- Net weight of the product
- 0.15 kg
- Customs tariff
- 85364900
- logis_net_width
- 45 mm
- logis_net_height
- 71 mm
- logis_net_depth
- 80 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 7890355027387
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 7890355110157
- Transport packaging weight
- 0.165 kg
- Pallet quantity
- 5333
ETIM Clasification
- Classification
- EC000106
- Class name
- Thermal overload relay
- Adjustable current range
- 0.8…1.2A
- Mounting method
- Direct attachment/single positioning
- Type of electrical connection of main circuit
- Flat plug-in connection
- Number of auxiliary contacts as normally closed contact
- 1
- Number of auxiliary contacts as normally open contact
- 1
- Release class
- CLASS 10
