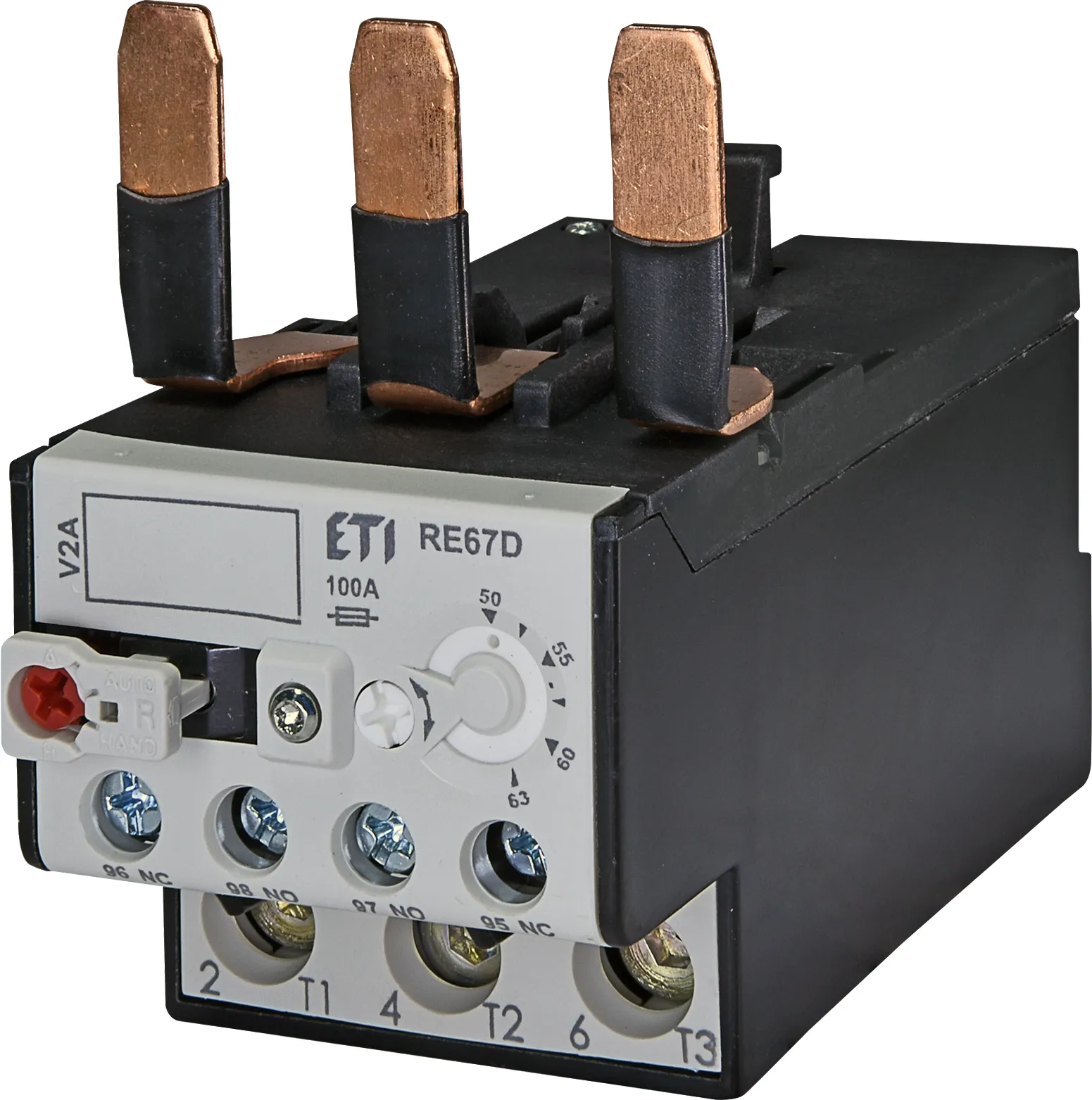

Thermal overload relay RE67.2D-63 004644418

Specifications

ETI Code:
004644418
Description:
RE67.2D-63
Class name:
Thermal overload relay
Function:
Overload relay
Function accessories:
Overload relay
Current setting range (A):
50A/63A

Documents

Product

Net weight of the product
0.3  kg
Customs tariff
85364900

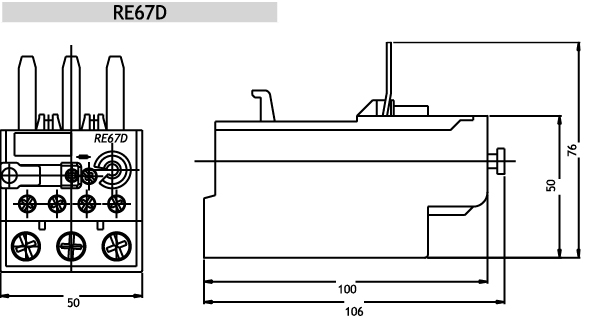

logis_net_width
53  mm
logis_net_height
82  mm
logis_net_depth
107  mm

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
7894171705696
Basic packaging weight
0.309  kg

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
7890355110300
Transport packaging weight
0.32  kg
Pallet quantity
2667
Classification
EC000106
Class name
Thermal overload relay
Adjustable current range
50…63A
Mounting method
Direct attachment/single positioning
Type of electrical connection of main circuit
Flat plug-in connection
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Release class
CLASS 10
ETIM Classification – Version 7.0

Images & Diagrams

004644418 Flush mounted enclosure Thermal overload relay, RE67.2D-63 ETICON Motor contactors Overload relay Overload relay RE67.2D RE67.2D Contactors ETICON Motor contactor CEM, overload relays and acessories Overload relays PREOBR.RELE RE67 Function Overload relay Tripping characteristic Class 10 Mounting type Contactor mounting For use with CEM50...CEM80 Number of auxiliary NC contacts 1 Current setting range 50-63A Mounting Direct attachment single positioning Function accessories Overload relay Catalogue Group Accessories CEM CEAM Number of auxiliary NO contacts 1 Thermal overload relay RE67.2D Overload relay CEM50...CEM80
