Motor contactor CES 25.00-400V-50Hz 004646544
Specifications
- ETI Code:
- 004646544
- Description:
- CES 25.00-400V-50Hz
- Class name:
- Motor contactor
- Rated operation current Ie at AC1 (A):
- 42
- Rated operation current Ie at AC3, 400 V (A):
- 25
- Rated operational voltage AC (V):
- 690
- Rated AC control circuit voltage Uc (V):
- 400
- Rated operation power at AC3 (kW):
- 11
- Number of poles:
- 3
- Function:
- Motor contactor
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 45 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 96 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895748755
- Basic packaging weight
- 0.41 kg
Transport packaging
- Transport packaging quantity
- 16
- EAN code for a transport packaging
- 3838895748762
- Transport packaging weight
- 8.56 kg
- Pallet quantity
- 1328

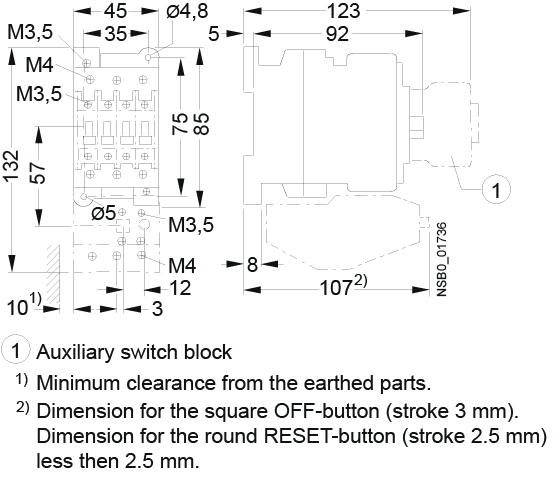

Images & Diagrams
