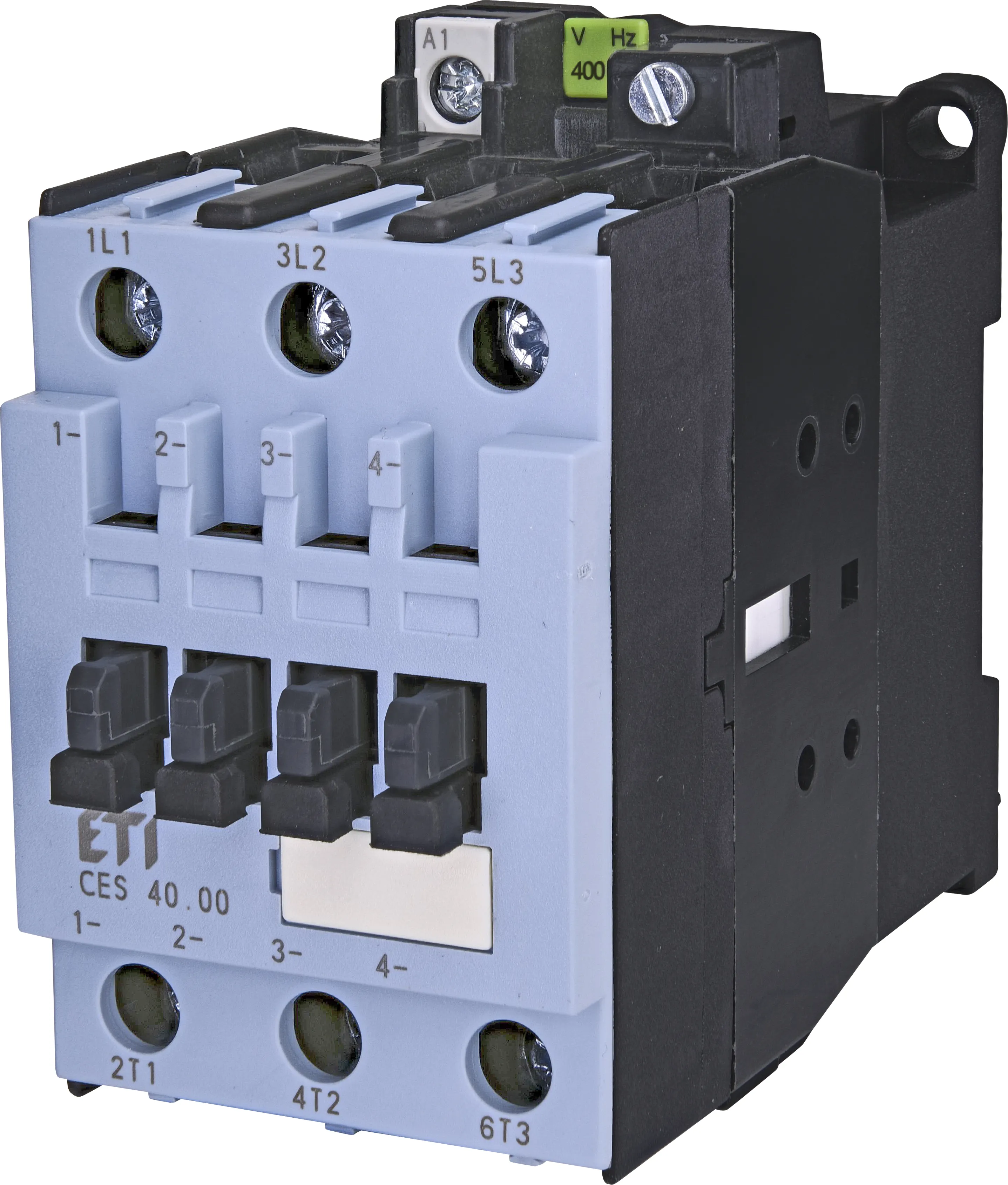

Motor contactor CES 40.00-400V-50Hz 004646555

Specifications

ETI Code:
004646555
Description:
CES 40.00-400V-50Hz
Class name:
Motor contactor
Rated operation current Ie at AC1 (A):
65A
Rated operation current Ie at AC3, 400 V (A):
40A
Rated operational voltage AC (V):
690V
Rated AC control circuit voltage Uc (V):
400V
Number of poles:
3
Function:
Motor contactor

Documents

Product

Net weight of the product
0.67  kg
Customs tariff
85364900
logis_net_width
55  mm
logis_net_height
102  mm
logis_net_depth
109  mm

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895748977
Basic packaging weight
0.67  kg

Transport packaging

Transport packaging quantity
30
EAN code for a transport packaging
3838895748984
Transport packaging weight
22  kg
Pallet quantity
540

Images & Diagrams

004646555 Motor contactor, CES 40.00-400V-50Hz ETICON Motor contactor CES Motor contactor CES Motor contactor CES Motor contactor CES Motor contactor CES 40 Contactors ETICON Motor contactor CES, overload relays and accessories Motor contactor Function Motor contactor Rated operation current Ie at AC1 65A Rated operation current Ie at AC3, 400 V 40A Rated operation power at AC3 18,5kW Number of auxiliary NC contacts 0 Rated operation power at AC3 18,5kW AC rated control supply voltage Uc 400V Number of poles 3 Catalogue Group CES Motor contactor Number of auxiliary NO contacts 0 Rated operational voltage AC 690V Rated AC control circuit voltage Uc 400V
