Motor contactor CES 45.00-230V-50/60Hz 004646557
Specifications
- ETI Code:
- 004646557
- Description:
- CES 45.00-230V-50/60Hz
- Class name:
- Motor contactor
- Rated operation current Ie at AC1 (A):
- 65
- Rated operation current Ie at AC3, 400 V (A):
- 45
- Rated operational voltage AC (V):
- 690
- Rated AC control circuit voltage Uc (V):
- 230
- Rated operation power at AC3 (kW):
- 22
- Number of poles:
- 3
- Function:
- Motor contactor
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 55 mm
- logis_net_height
- 102 mm
- logis_net_depth
- 109 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895749011
- Basic packaging weight
- 0.64 kg
Transport packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838895749028
- Transport packaging weight
- 21.2 kg
- Pallet quantity
- 540

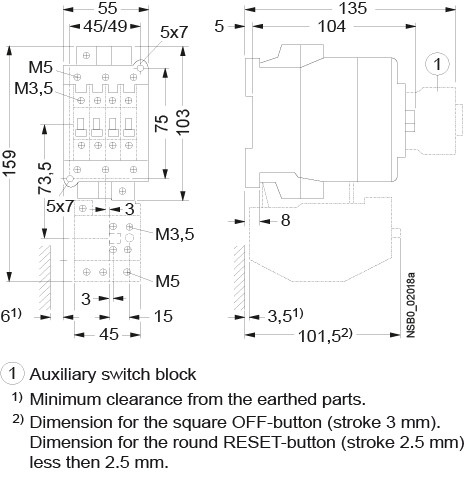

Images & Diagrams
